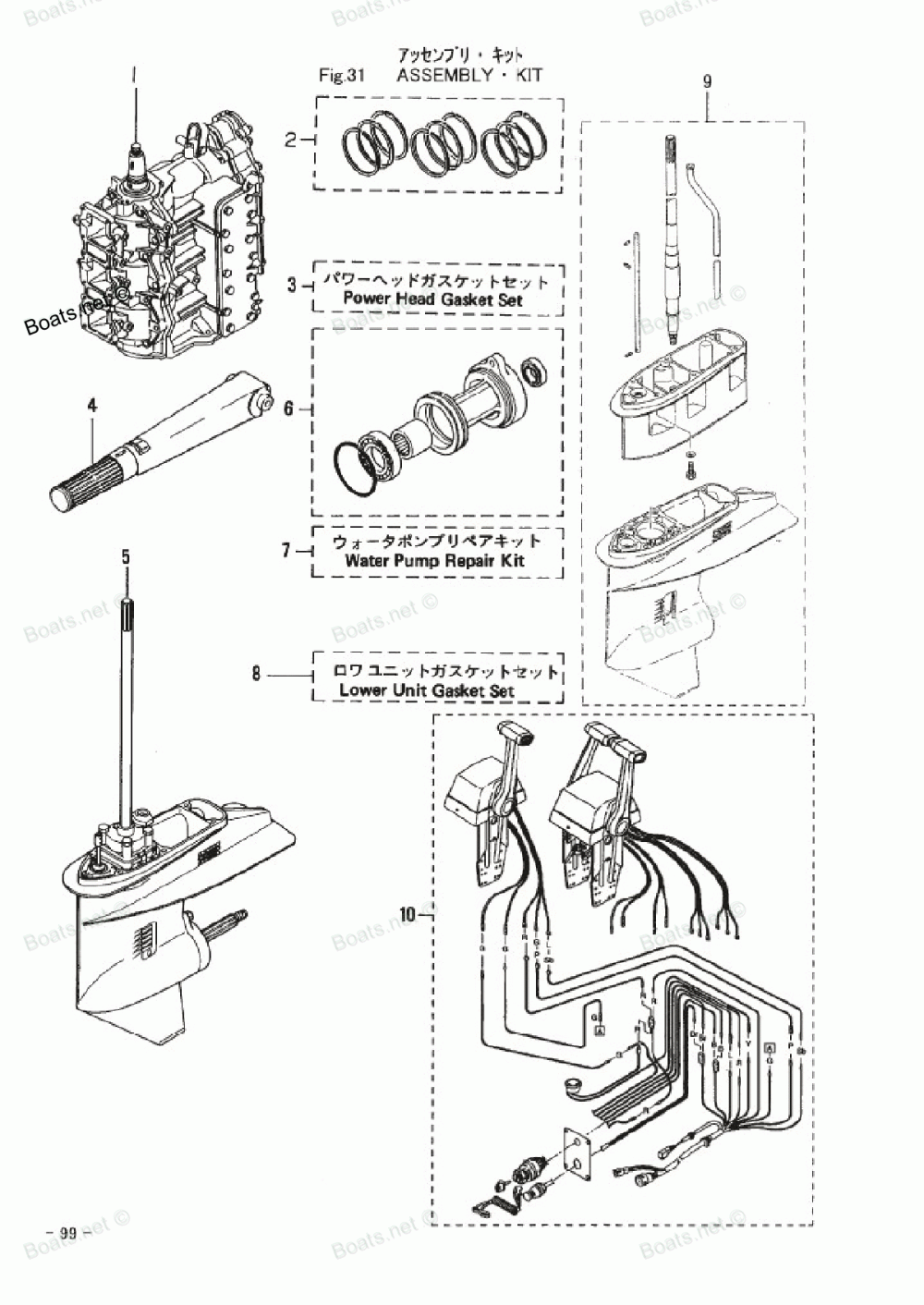

Assembly Kit

Tohatsu MD40B

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING SET, (0.5MM O/S)

PISTON RING SET, (0.5MM O/S)

2

PISTON RING, 1ST (0.5MM OS)

PISTON RING, 1ST (0.5MM OS)

2

PISTON RING, 2ND (0.5MM O/S)

PISTON RING, 2ND (0.5MM O/S)

2

PISTON RING SET (STD)

PISTON RING SET (STD)

2

PISTON RING, 1ST (STD)

PISTON RING, 1ST (STD)

2

PISTON RING, 2ND (STD)

PISTON RING, 2ND (STD)

3

GASKET, THERMOSTAT CAP

GASKET, THERMOSTAT CAP

3

O-RING, 1.7 - 59

O-RING, 1.7 - 59

3

Прокладка клапана

Прокладка клапана

3

O-RING A

O-RING A

3

AIR CHAMBER COVER GASKET

AIR CHAMBER COVER GASKET

3

Колечко

Колечко

3

EXHAUST COVER GASKET

EXHAUST COVER GASKET

3

POWER HEAD GASKET SET

POWER HEAD GASKET SET

3

GASKET, ENGINE BASEMENT

GASKET, ENGINE BASEMENT

3

O-RING, 2.4 - 44.7

O-RING, 2.4 - 44.7

3

Прокладка

Прокладка

3

OIL SEAL, 16 - 28 - 7

OIL SEAL, 16 - 28 - 7

3

GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER

3

OIL SEAL, 25 - 40 - 8

OIL SEAL, 25 - 40 - 8

4

ASSEMBLY

ASSEMBLY

5

ASSEMBLY "L"

ASSEMBLY "L"

5

ASSEMBLY "UL"

ASSEMBLY "UL"

5

ASSEMBLY "S"

ASSEMBLY "S"

6

ASSEMBLY

ASSEMBLY

7

Прокладка

Прокладка

7

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

7

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

7

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

7

Импеллер

Импеллер

7

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

7

LINER, PUMP CASE

LINER, PUMP CASE

8

O-RING, 2.4 - 5.8

O-RING, 2.4 - 5.8

8

GASKET, EXHAUST HOUSING

GASKET, EXHAUST HOUSING

8

O-RING, 3.5 - 21.7

O-RING, 3.5 - 21.7

8

GASKET, 8.1 - 15 - 1

GASKET, 8.1 - 15 - 1

8

O-RING, 3.53 - 69.44

O-RING, 3.53 - 69.44

8

GASKET, 10.1 - 15 - 1

GASKET, 10.1 - 15 - 1

8

OIL SEAL, 17 - 33 - 6

OIL SEAL, 17 - 33 - 6

8

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

8

OIL SEAL, 22 - 36 - 10

OIL SEAL, 22 - 36 - 10

8

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

8

O-RING, 3.2 - 47

O-RING, 3.2 - 47

8

Прокладка глушителя

Прокладка глушителя

9

WATER PIPE "UL"

WATER PIPE "UL"

9

Стопор

Стопор

9

SPRING PIN, 3 - 12

SPRING PIN, 3 - 12

9

Болт

Болт

9

SPRING PIN, 3 - 12

SPRING PIN, 3 - 12

9

AUXILIARY MOUNT, WATER PIPE

AUXILIARY MOUNT, WATER PIPE

9

EXTENSION HOUSING KIT "UL"

EXTENSION HOUSING KIT "UL"

9

GEAR CASE (WITH SUB WATER PIE)

GEAR CASE (WITH SUB WATER PIE)

9

EXTENSION HOUSING "UL"

EXTENSION HOUSING "UL"

9

DRIVE SHAFT "UL"

DRIVE SHAFT "UL"

9

Болт

Болт

9

CAM ROD "UL"

CAM ROD "UL"

9

CAM ROD HOLDER

CAM ROD HOLDER

10

TOP MOUNT CONTROL KIT TWIN

TOP MOUNT CONTROL KIT TWIN
