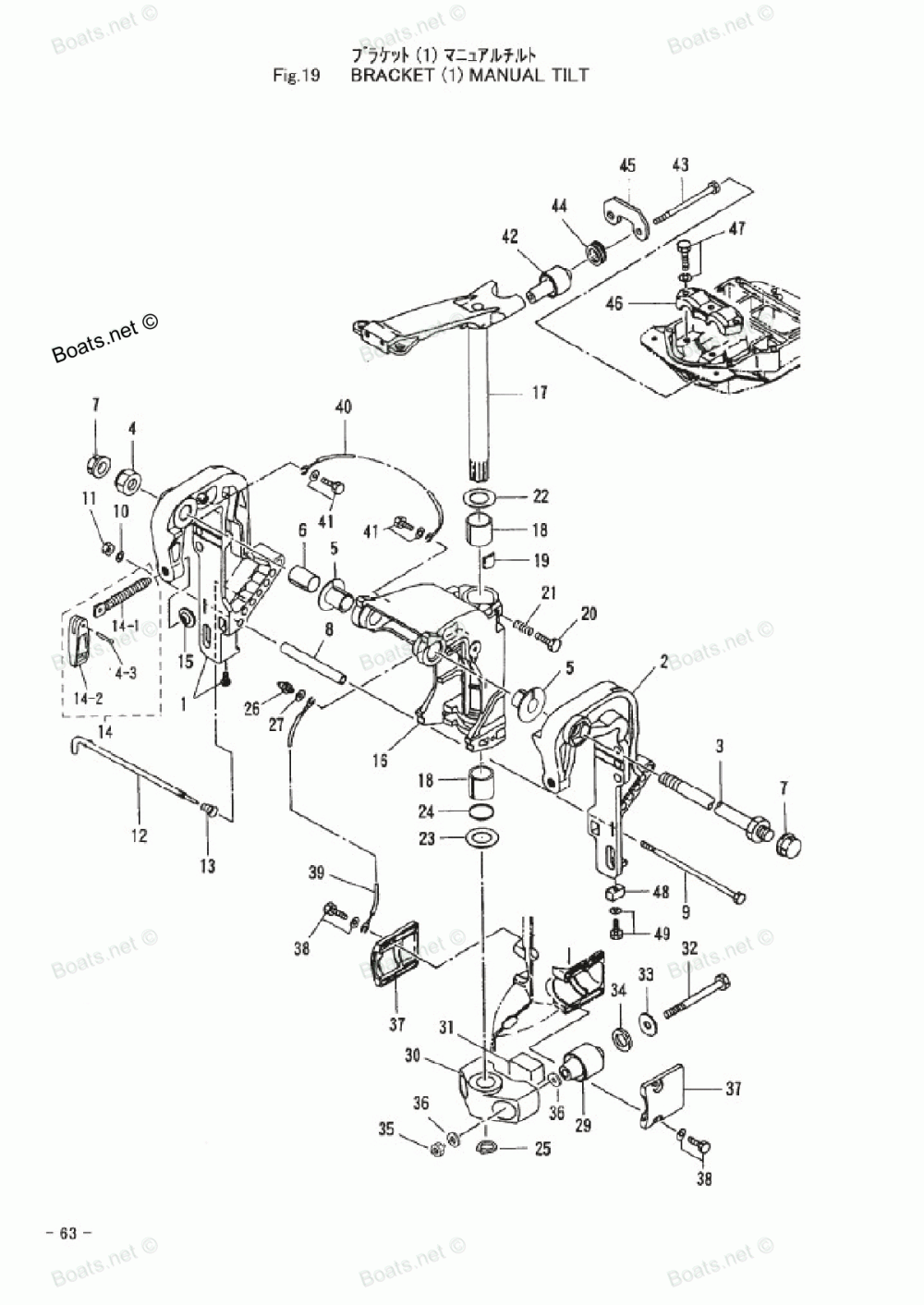

Bracket (1) (manual Tilt)

Tohatsu MD40B
Tohatsu
#oem кодцена
1
3C8Q621120
CLAMP BRACKET (RIGHT)
2
3C8Q621130
CLAMP BRACKET (LEFT)
3
3AC621910M
SWIVEL BRACKET SHAFT
4
346621241M
NYLON NUT, 7/8
5
349621260M
BRACKET SHAFT BUSHING
6
3C8621320M
BUSHING, 22 - 25 - 35.5
7
346621270M
CAP, BRACKET BOLT
8
3C8621171M
DISTANCE PIECE
9
3C8621201M
BOLT, 8 - 170
10
9401130800
Шайба
11
9301130800
Гайка
12
3C8621211M
Штанга
13
345621222M
SPRING, THRUST ROD
14
3C8Q621001
ASSEMBLY
14-1
3E3621030M
CLAMP SCREW
14-2
332Q621021
HANDLE, CLAMP SCREW
14-3
3C8621041M
RIVET, 3 - 22
15
332621010M
PAD, CLAMP SCREW
16
3C8Q623102
SWIVEL BRACKET
17
3C8Q620102
STEERING SHAFT
18
345624170M
BUSHING, 26 - 32 - 30
19
345624410M
FRICTION PLATE
20
9101130830
Болт
21
346624211M
Пружина
22
3A0624232M
THRUST PLATE (UPPER)
23
346624241M
THRUST PLATE (LOWER)
24
345624150M
O-RING, 3.5 - 25.7
25
9451032500
C-RING, D=25
26
344671770M
Масленка
27
9401130600
Шайба
29
3C8613020M
RUBBER MOUNT (LOWER)
30
3C8Q614112
MOUNT BRACKET
31
3C8613360M
DAMPER (LOWER)
32
3C8613211M
RUBBER MOUNT BOLT (LOWER)
33
353613340M
WASHER, 13 - 34 - 3
34
3C7613380M
RUBBER DAMPER, 21 - 36 - 5
35
9304031200
NYLON NUT, 12 - P1.75
36
9402131200
Шайба
37
3C8Q613420
MOUNT HOLDING PLATE (LOWER)
38
9101135620
Болт
39
3C8623961M
GROUND CABLE
40
398623961M
GROUND CABLE
41
9101035612
Болт
42
3E3613011M
RUBBER MOUNT (UPPER)
43
353613070M
RUBBER MOUNT BOLT (UPPER)
44
3E3613330M
DAMPER (UPPER)
45
3E3613350M
LOCK PLATE (UPPER)
46
3C8Q613410
MOUNT HOLDING PLATE (UPPER)
47
9101135835
Болт
48
3B7602181M
Анод
49
9101035635
Болт
