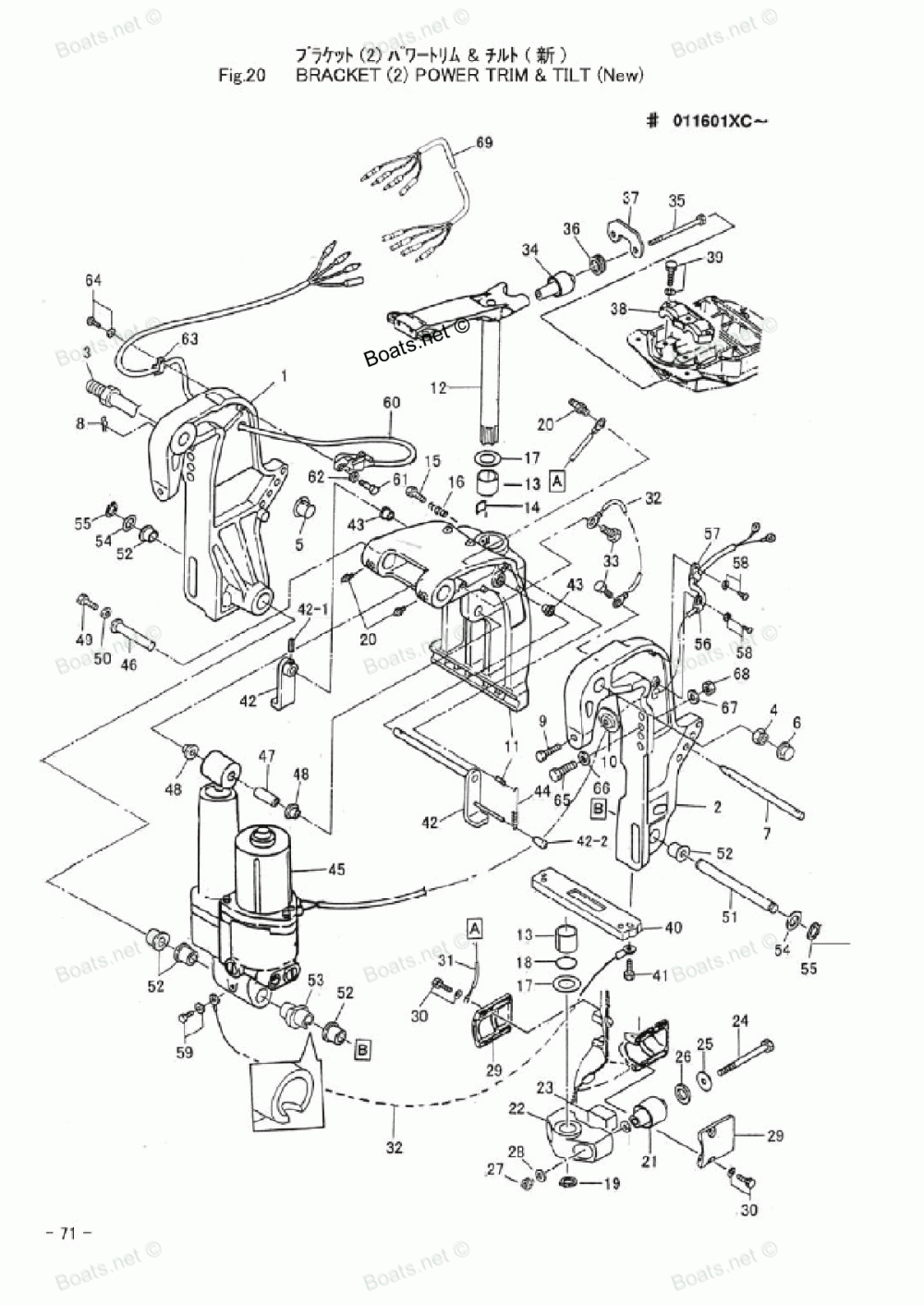

Bracket (2) Power Trim & Tilt (new)
Bracket (2) Power Trim & Tilt (new)

Bracket (2) Power Trim & Tilt (new)

Tohatsu MD40B

oem код

название

цена

3Z5Q772110

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (LEFT)

SWIVEL BRACKET SHAFT

NYLON NUT, 7/8

BUSHING, BRACKET BOLT

CAP, BRACKET BOLT

Штанга

SNAP PIN, D=10

CLAMP SCREW

PAD, CLAMP SCREW

SWIVEL BRACKET (POWER TRIM & TILT)

3Z5Q620100

STEERING SHAFT

353624170M

BUSHING, 30 - 36 - 41

FRICTION PLATE

Болт

Пружина

THRUST PLATE

O-RING, 3.5 - 29.7

C-RING, D=28

Масленка

RUBBER MOUNT (LOWER)

MOUNT BRACKET

DAMPER (LOWER)

RUBBER MOUNT BOLT (LOWER)

353613340M

WASHER, 13 - 34 - 3

3C7613380M

DAMPER RUBBER, 21 - 36 - 5

9304031200

NYLON NUT, 12 - P1.75

9402131200

Шайба

3C8Q613420

MOUNT HOLDING PLATE (LOWER)

Болт

GROUND CABLE

GROUND CABLE

Болт

RUBBER MOUNT (UPPER)

RUBBER MOUNT BOLT (UPPER)

3E3613330M

DAMPER (UPPER)

3E3613350M

LOCK PLATE (UPPER)

3C8Q613410

MOUNT HOLDING PLATE (UPPER)

Болт

Анод

Болт

TILT STOPPER (PTT)

42-1

9514033516

SPRING PIN, 3.5 - 16

42-2

369624331M

GRIP, TILT STOPPER

353632070M

COLLAR, 10.2 - 12 - 12

3R0624730M

SPRING, TILT STOPPER (PTT)

3Z5Q771500

POWER TRIM & TILT

3R0770710M

CYLINDER PIN (UPPER)

3R0770750M

BUSHING, 13 - 16 - 40

3R0770760M

BUSHING, 13 - 17 - 19.5

9101130612

Болт

345051220M

WASHER, 6.5 - 23 - 1.5

3R0771010M

CYLINDER PIN (LOWER)

3C8770761M

BUSHING, 18 - 24 - 22

3Z5771030M

BUSHING, 18 - 24 - 60

3R0771120M

WASHER, 18.2 - 34 - 1

C-RING, D=18

CLAMP, 6 - 9.5L

CLAMP, 6 - 14L

Винт

TRIM SENDER

Болт

WASHER, 6 - 16 - 1.5

BOLT, 12 - P1.25

Шайба

NUT, 12 - P1.25

EXTENSION CORD (TRIM SENSOR)
