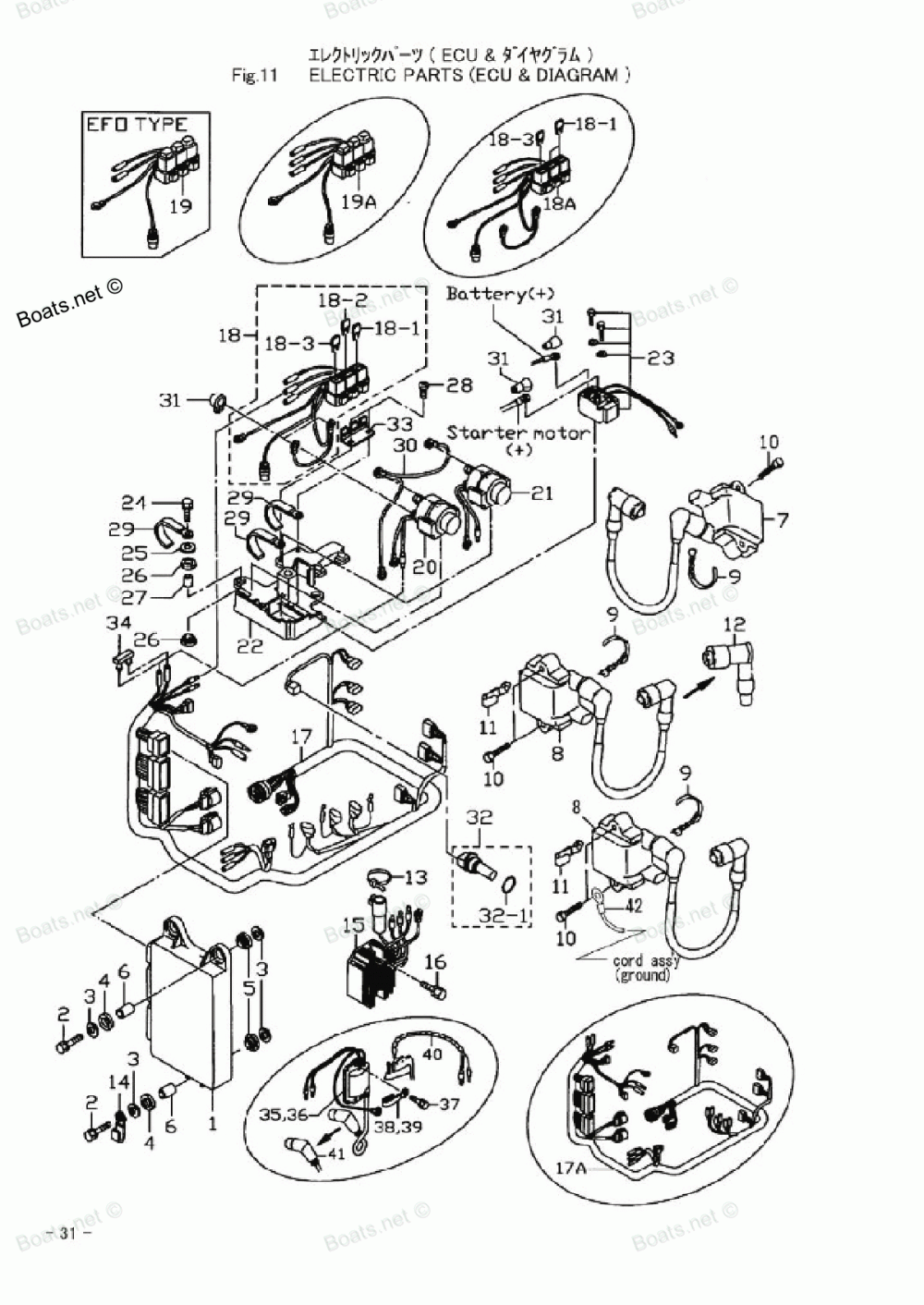

Electric Parts (ecu & Diagram)

Tohatsu MD40B
Tohatsu
#oem кодцена
1
3Z4064010M
ECU 40
1
3T4064010M
ECU 40
2
9101036630
Болт
3
346671150M
WASHER, 6.5 - 21 - 1
4
346671130M
RUBBER MOUNT, 8.5 - 14 - 2.5
5
3B7069200M
RUBBER MOUNT, 8.5 - 14 - 2.5
6
3T5671140M
SPACER, 6.2 - 9 - 16.6
7
3Z5064690M
IGNITION COIL, # 1
8
3Z5064700M
IGNITION COIL , # 2 & # 3
9
369843980M
BAND, LEAD WIRE 158
10
9101037635
Болт
11
3T4069720M
CLAMP, 6.5 - 87P
12
3H6069990M
PLUG CAP, RESISTANCE
13
3T5843980M
BAND, LEAD WIRE 104
14
309069720M
CLAMP, 6.5 - 47.5P
15
3Z5760600M
Регулятор напряжения
16
9101035620
Болт
17A
3T5761100M
CORD ASSEMBLY "A"
17
3Z5761100M
ASSEMBLY "A"
18
3Y9760620M
FUSE HOLDER (PTT TYPE)
18A
3T9760620M
FUSE HOLDER (PTT TYPE)
18-1
3T5762460M
FUSE, 15A
18-2
3T5762480M
FUSE, 25A
18-3
3T5762490M
FUSE, 30A
19A
3T5760660M
FUSE HOLDER "B" (EFO TYPE)
19
3Z5760660M
FUSE HOLDER "B" (EFO TYPE)
20
3C8725800M
SOLENOID SWITCH "A", PTT
21
3C8725810M
SOLENOID SWITCH "B", PTT
22
3T5725850M
BRACKET, SOLENOID SWITCH
23
3H8760400M
STARTER SOLENOID
24
9101036625
Болт
25
3c8663080M
WASHER, 6 - 16 - 1.5
26
3F3069200M
RUBBER MOUNT, 9 - 12 - 2
27
3T5760790M
SPACER, 6.2 - 9 - 10.7
28
3T5064370M
TAPPING SCREW, 6 - 16
30
3T5761420M
GROUND CABLE
31
3A3761450M
TERMINAL CAP
32
3T4725140M
WATER TEMPERATURE SENSOR
32
3Y9725140M
WATER TEMPERATURE SENSOR
32-1
3G9661360M
O-RING, 2.0 - 10
32-1
3T5725090M
O-RING, 1.9 - 9.8
33
3T9760640M
BRACKET, FUSE HOLDER
34
353760370M
PLUG, CABLE TERMINAL
35
3T5061711M
IGNITION COIL # 1
36
3T5061731M
IGNITION COIL # 2 & # 3
40
3T5061731M
SPIRAL TUBE PROTECTOR
41
3T5069210M
PLUG CAP, RESISTANCE
42
3Y9761420M
GROUND CABLE
