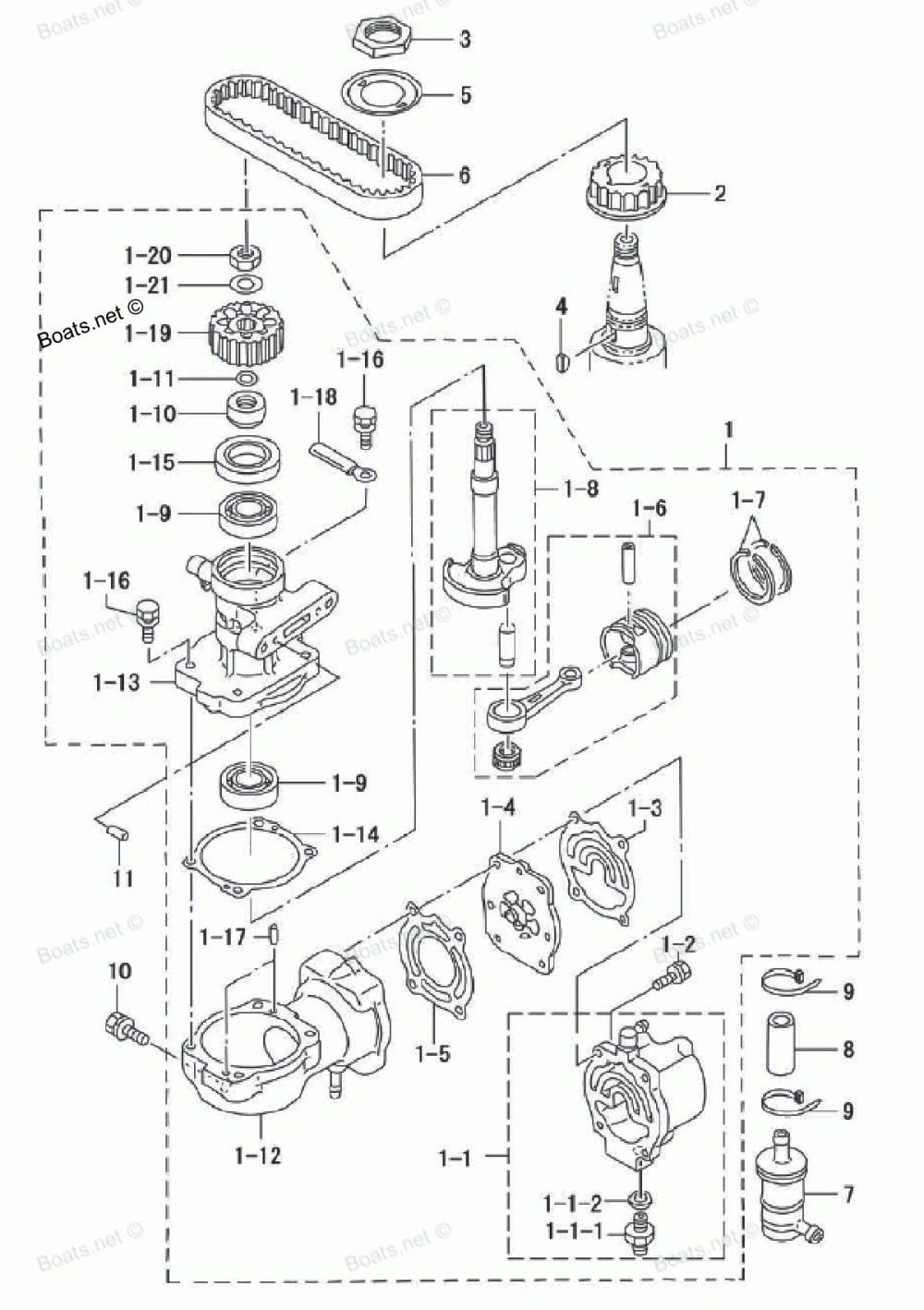

Воздушный компрессор

Tohatsu MD70B
Tohatsu
#oem кодцена
1
3T9B100003
AIR COMPRESSOR
1-1
3Z5B100090
HEAD, COMPRESSOR (WITH NIPPLE)
1-1-1
3T5043080M
ADPATER, HOSE JOINT
1-1-2
3T5043090M
METAL WASHER, 10.2 - 17 - 2
1-2
9101247630
Болт
1-3
3T5100120M
GASKET, COMPRESSOR HEAD
1-4
3T5100100M
ASSEMBLY
1-5
3T5100190M
VALVE SEAT GASKET
1-6
3T5873301M
PISTON & CONNECTING ROD
1-7
3T5100250M
Кольцо поршневое
1-8
3T5873310M
CRANK SHAFT
1-9
960106203M
BEARING, 6203
1-10
3T5100420M
COLLAR, 13.5 - 25 - 13
1-11
3T5100460M
O-RING, 13 - 1.9
1-12
3Y9B100480
COMPRESSOR CYLINDER
1-13
3T5B100510
HOUSING, COMPRESSOR
1-14
3T5100540M
GASKET, COMPRESSOR HOUSING
1-15
3T5100410M
OIL SEAL, 25 - 45 - 7
1-16
9101035625
Болт
1-17
334650120M
DOWEL PIN, 4 - 10
1-18
309069720M
CLAMP, 6.5 - 47.5P
1-19
3T5100620M
DRIVEN PULLEY
1-20
309001320M
NUT, DRIVEN PULLEY, 10 - P1.25
1-21
3B7011160M
WASHER, 10.5 - 20 - 3.2
2
3T9100600M
DRIVE PULLEY
3
3T5100680M
NUT, PULLEY
4
3T5101310M
KEY, DRIVE PULLEY
5
3T5100630M
BELT GUIDE
6
3T9100610M
Ремень
7
3T5101300M
Воздушный фильтр
8
98AC90055M
AIR HOSE
9
3T5843980M
BAND, LEAD WIRE 104
10
9101037835
Болт
