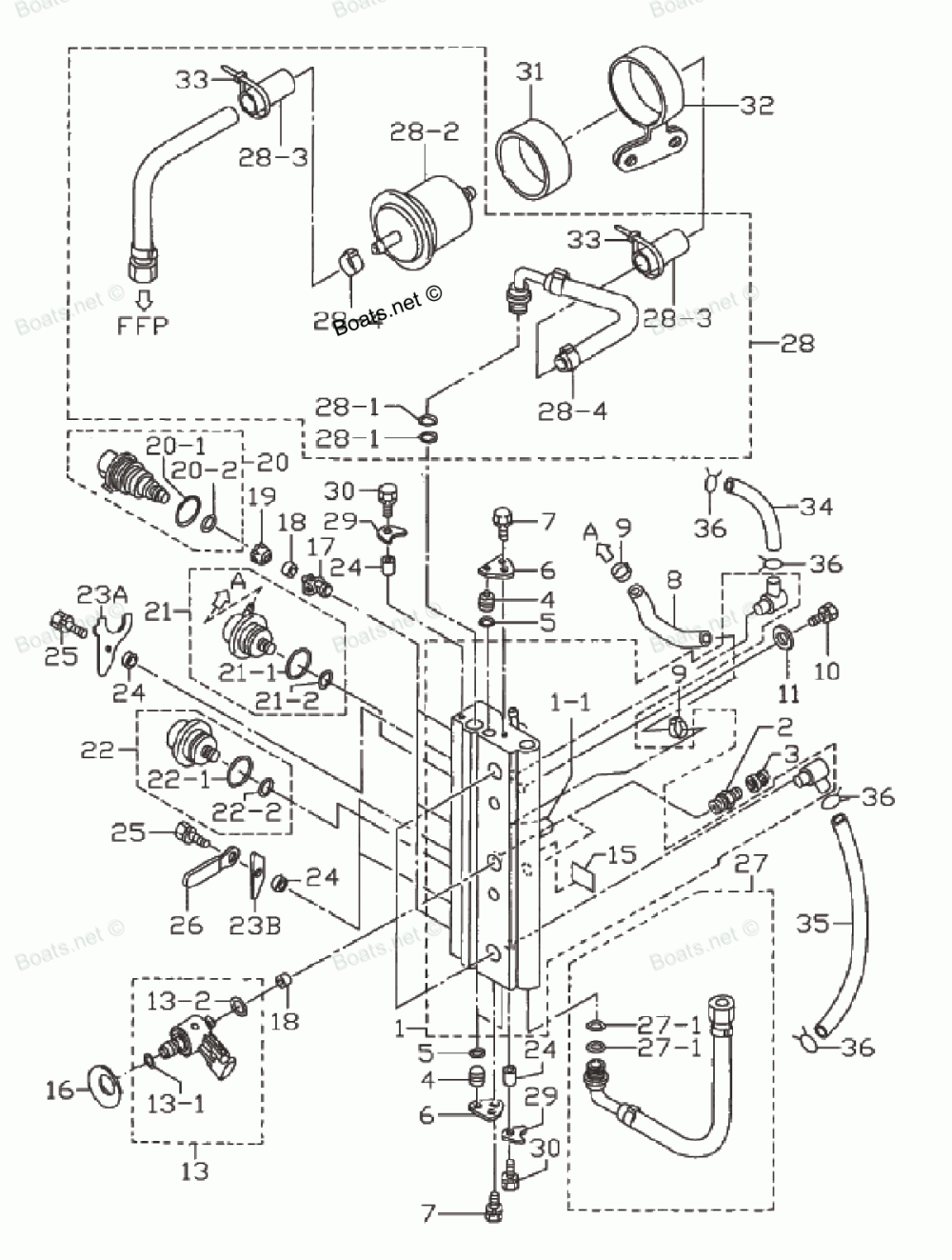

Air Rail Каталог оригинальных запчастей для лодочных моторов Tohatsu MD70B (2006)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Air Rail

Tohatsu MD70B

Air Rail

#

oem код

название

цена

1

AIR RAIL

AIR RAIL

1-1

L-NIPPLE

L-NIPPLE

2

Клапан

Клапан

3

Крышка клапана

Крышка клапана

4

PLUG, ∅10.5

PLUG, ∅10.5

5

O-RING, 1.9 - 6.8

O-RING, 1.9 - 6.8

6

STOPPER, PLUG

STOPPER, PLUG

7

Болт

Болт

8

AIR HOSE

AIR HOSE

9

CLAMP, 29/64

CLAMP, 29/64

10

Болт

Болт

11

Шайба

Шайба

13

AIR INJECTOR

AIR INJECTOR

13-1

O-RING, 5 - 52 (∅1 - 10)

O-RING, 5 - 52 (∅1 - 10)

13-2

O-RING, 2.4 - 9.6 (∅2.4 - 14.2)

O-RING, 2.4 - 9.6 (∅2.4 - 14.2)

15

AIR RAIL DECAL

AIR RAIL DECAL

16

AIR INJECTOR DISC SPRING

AIR INJECTOR DISC SPRING

17

FUEL INJECTOR INSERT

FUEL INJECTOR INSERT

18

COMPRESSION SEAL

COMPRESSION SEAL

19

ADAPTER, FUEL INJECTOR

ADAPTER, FUEL INJECTOR

20

FUEL INJECTOR

FUEL INJECTOR

20-1

O-RING, 2.8 - 20.2

O-RING, 2.8 - 20.2

20-2

O-RING, 3.5 - 7.5

O-RING, 3.5 - 7.5

21

FUEL REGULATOR

FUEL REGULATOR

21-1

O-RING, 2.5 - 20

O-RING, 2.5 - 20

21-2

O-RING, 2.5 - 5

O-RING, 2.5 - 5

22

AIR REGULATOR

AIR REGULATOR

23A

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

23B

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

24

COLLAR, 6.7 - 12.7 - 3

COLLAR, 6.7 - 12.7 - 3

25

Болт

Болт

26

CLAMP, 6.5 - 47.5P

CLAMP, 6.5 - 47.5P

27

AIR HOSE

AIR HOSE

27-1

O-RING, 1.9 - 9.8

O-RING, 1.9 - 9.8

28

FUEL HOSE

FUEL HOSE

28-2

Топливный Фильтр

Топливный Фильтр

28-3

PROTECT TUBE

PROTECT TUBE

28-4

CLAMP, 21/32

CLAMP, 21/32

29

NIPPLE HOLDING PLATE

NIPPLE HOLDING PLATE

31

RUBBER MOUNT, FUEL FILTER

RUBBER MOUNT, FUEL FILTER

32

BAND, FUEL FILTER

BAND, FUEL FILTER

33

BAND, LEAD WIRE 104

BAND, LEAD WIRE 104

34

FUEL PIPE

FUEL PIPE

35

AIR PIPE

AIR PIPE

36

CLIP, 𕐺10

CLIP, 𕐺10
