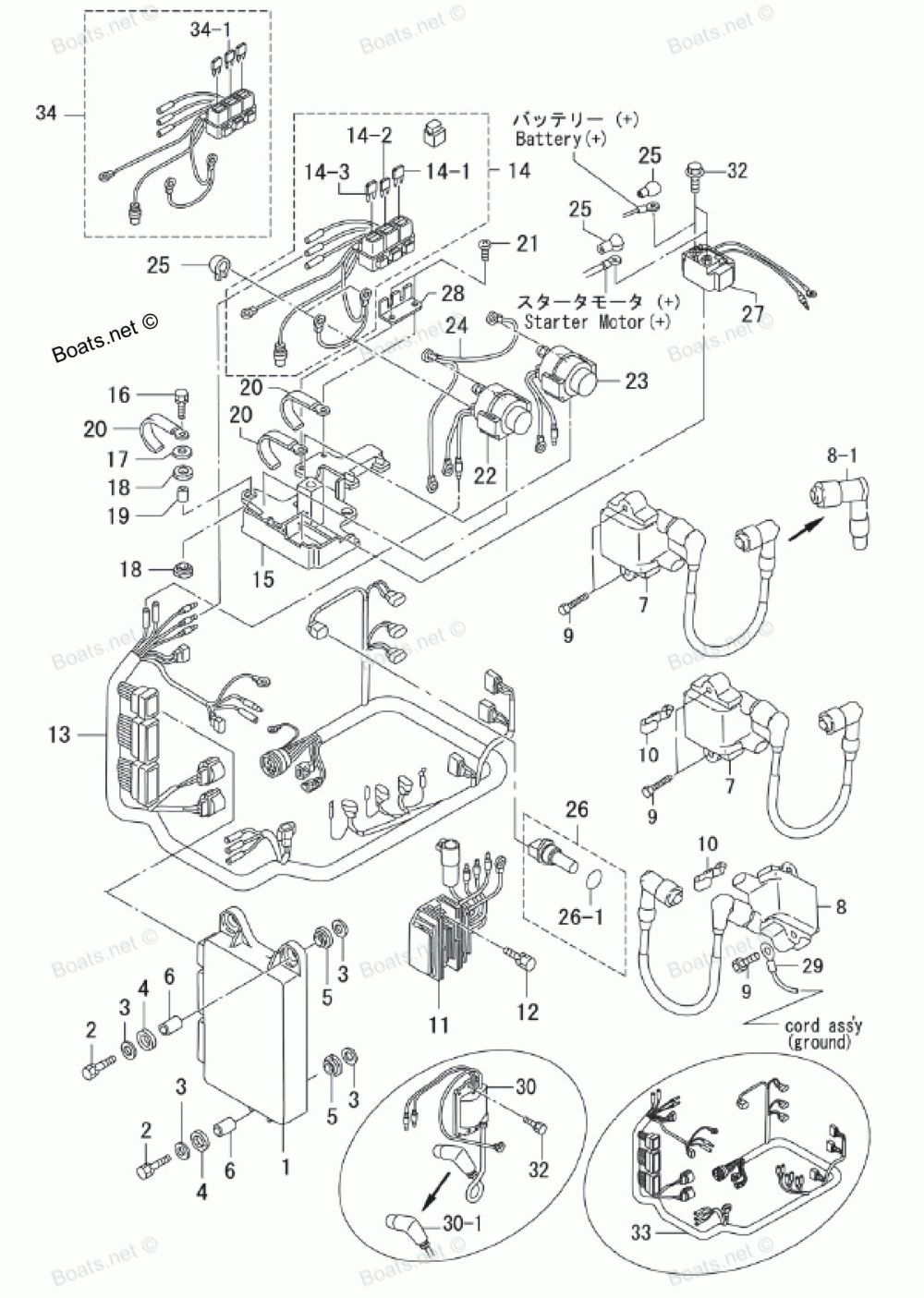

Electric Parts (ecu & Diagram)

Tohatsu MD70B
Tohatsu
#oem кодцена
1
3Y7064010M
ECU 70
2
9101036630
Болт
3
346671150M
WASHER, 6.5 - 21 - 1
4
346671130M
RUBBER MOUNT, 8.5 - 14 - 2.5
5
3B7069200M
RUBBER MOUNT, 8.5 - 14 - 2.5
6
3T5671140M
SPACER, 6.2 - 9 - 16.6
7
3Y9064690M
IGNITION COIL, # 1 & # 2
8
3Y9064700M
IGNITION COIL, # 3
8-1
3H6069990M
PLUG CAP (WITH RESISTANCE)
9
9101137635
Болт
10
3T4069720M
CLAMP, 6.5 - 87P
11
3Z5760600M
Регулятор напряжения
12
9101037625
Болт
13
3Y9761100M
ASSEMBLY "A"
14
3Y9760620M
FUSE HOLDER
14-1
3T5762460M
FUSE, 15A
14-2
3T5762480M
FUSE, 25A
14-3
3T5762490M
FUSE, 30A
15
3T5725850M
BRACKET, SOLENOID SWITCH
16
9101036625
Болт
17
3c8663080M
WASHER, 6.5 - 16 - 1.5
18
3F3069200M
RUBBER MOUNT, 8.5 - 12 - 2
19
3T5760790M
SPACER, 6.2 - 9 - 10.7
21
3T5064370M
TAPPING SCREW, 6 - 16
22
3C8725800M
PTT SOLENOID SWITCH "A"
23
3C8725810M
PTT SOLENOID SWITCH "B"
24
3T5761420M
GROUND CABLE
25
3A3761450M
TERMINAL CAP
26
3Y9725140M
WATER TEMPERATURE SENSOR
26-1
3G9661360M
O-RING, 2 - 10
27
3H8760400M
STARTER SOLENOID
28
3T9760640M
FUSE HOLDER BRACKET
29
3Y9761420M
GROUND CABLE
30
3T5061731M
Катушка зажигания
30-1
3T5069210M
PLUG CAP (WITH RESISTANCE)
32
9101036612
Болт
33
3T7761100M
ASSEMBLY "A"
34
3T7760620M
FUSE HOLDER
34-1
3T5762470M
FUSE, 20A
