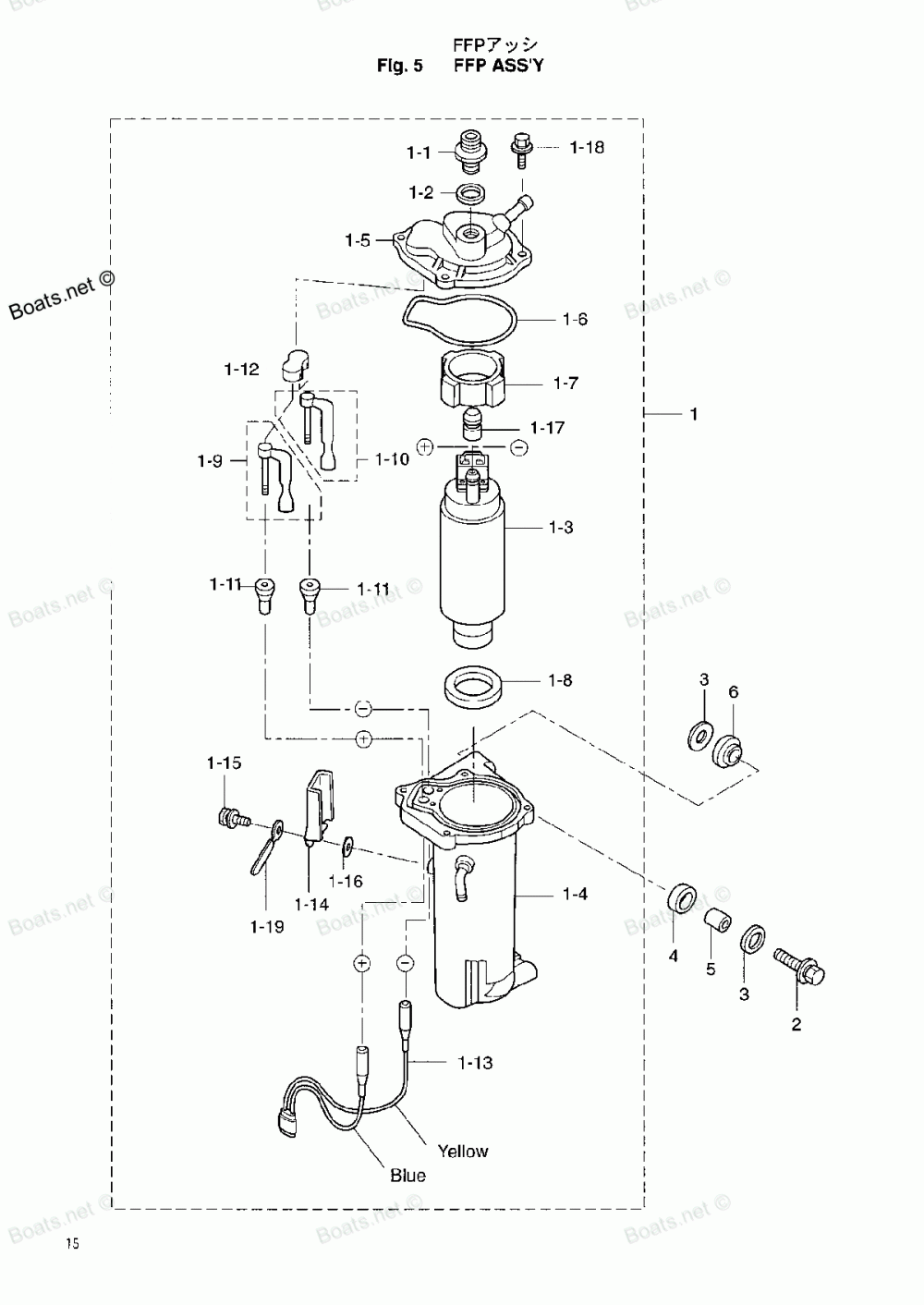

Assembly Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A (2006)

Assembly

Tohatsu MD115A

oem код

название

цена

3T1043100M

ASSEMBLY

1-1

3T5043080M

HOSE JOINT ADAPTER

1-2

3T5043090M

METAL WASHER, 10.2 - 17 - 2

1-3

3T1043020M

FUEL FEED PUMP

1-4

3T1042340M

FFP CASE

1-5

3T5043120M

FFP CASE (UPPER)

1-6

3T5041160M

Уплотнительное кольцо

1-7

3T5043130M

FFP GROMMET (UPPER)

1-8

3T5043140M

FFP GROMMET (LOWER)

1-9

3T5042360M

CABLE TERMINAL (POSITIVE)

1-10

3T5042370M

CABLE TERMINAL (NEGATIVE)

1-11

3T5043170M

CABLE TERMINAL GROMMET

1-12

3T5043180M

CABLE TERMINAL GROMMET (UPPER)

1-13

3T5042380M

FFP CORD

1-14

3T5042390M

FFP CORD COVER

1-15

9101035512

Болт

1-16

9401030500

Шайба

1-17

3T5043190M

PIPE GROMMET

1-18

9101036518

Болт

1-19

CLAMP, 6.5 - 47.5P

Болт

WASHER, 6 - 16 - 1.5

RUBBER MOUNT, 9 - 12 - 2

346671140M

SPACER, 6.2 - 9 - 15.7

3T5069200M

RUBBER MOUNT, 8.5 - 18 - 7
