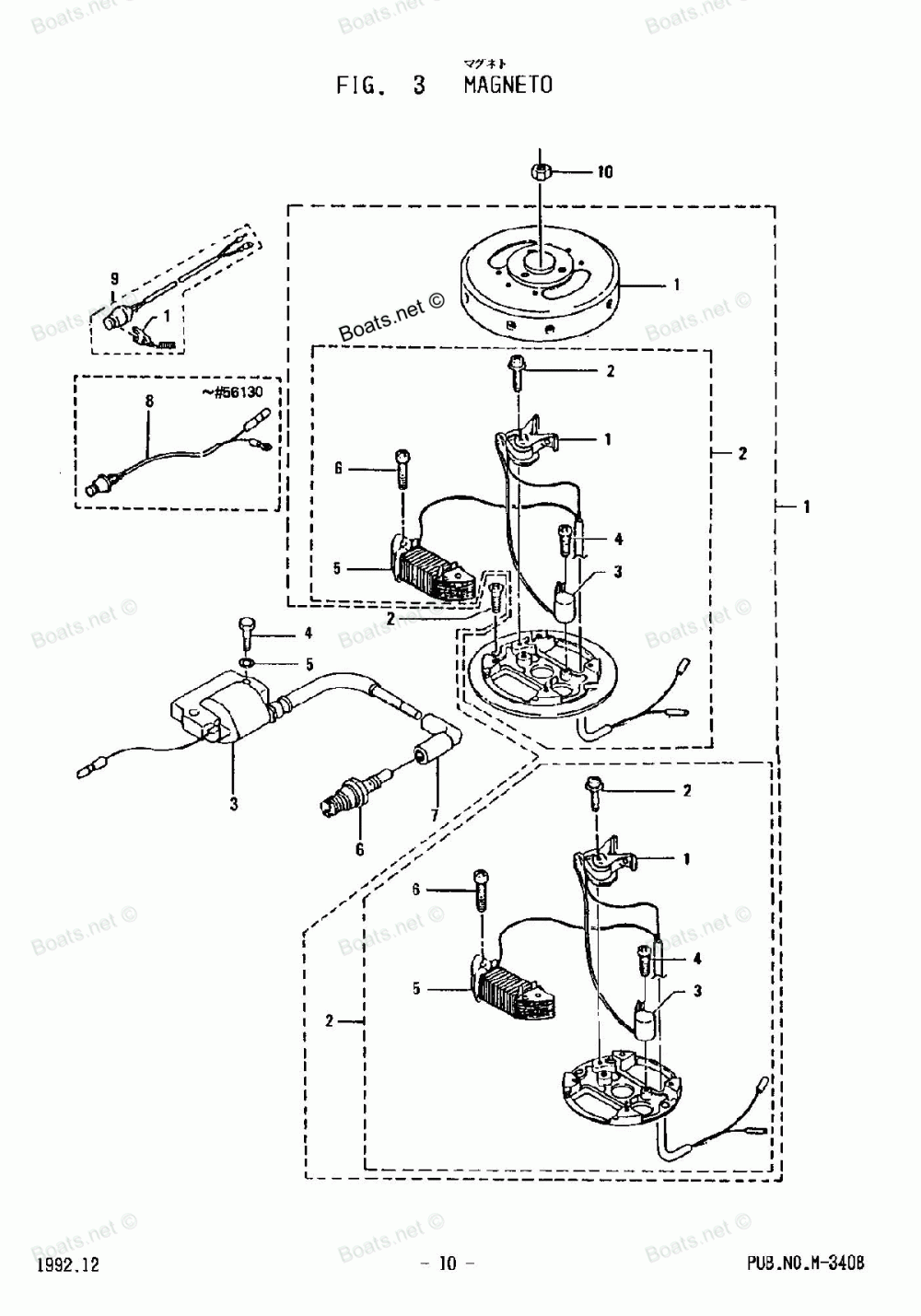

ГЕНЕРАТОР

Tohatsu M2.5A
Tohatsu
#oem кодцена
1
309061010M
Маховик
1
309061011M
Маховик
1
353068201M
LOCK SAFETY SWITCH (W/CURL)
1
309061000M
FLYWHEEL MAGNETO ASSY
1
3F0061010M
Маховик
1
309061001M
FLYWHEEL MAGNETO ASSY
2
309061020M
MAGNETO BASE
2
309061021M
MAGNETO BASE
2
921610514M
SCREW, MAGNETO BASE
2
3F0061200M
EXCITER COIL
2-1
309061100M
CONTACT BREAKER
2-2
921517410M
SCREW (W/WASHERS), CONTACT BREAKER
2-3
309061150M
Конденсатор
2-3
309061151M
Конденсатор
2-4
921516408M
SCREW (W/WASHER), CONDENSER
2-5
309061200M
EXCITER COIL
2-5
309061201M
EXCITER COIL
2-6
921516525M
SCREW (W/WASHER), EXCITE COIL
3
309061530M
Катушка зажигания
3
9215216520
Винт
4
910110625M
BOLT, IGNITION COIL
4
9215210510
Винт
5
941320600M
Пружинная шайба
5
369069150M
Держатель
6
970101011M
SPARK PLUG
6
3F0061530M
Катушка зажигания
6
970104011M
SPARK PLUG
6
970101013M
SPARK PLUG (RESISTER TYPE)
7
309069210M
SPARK PLUG CAP
7
9101030620
Болт
8
309069301M
Выключатель
8
3C8663080M
WASHER, 6 - 16 - 1.5
9
3F0060600M
C.D. UNIT
9
369068200M
SAFETY SWITCH ASSY
10
9101030616
Болт
10
309001320M
MAGNETO NUT
12
970101011M
SPARK PLUG
12
970101013M
SPARK PLUG (WITH RESISTANCE)
13
309069210M
SPARK PLUG CAP
13
3C7069210M
SPARK PLUG CAP (WITH RESISTANCE)
14
369068200M
LANYARD STOP SWITCH
14-1
353068210M
LOCK, LANYARD STOP SWITCH
16
309001320M
NUT, MAGNETO
