Drive Shaft, Propeller Каталог оригинальных запчастей для лодочных моторов Tohatsu M3.5A2 (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2005
M3.5A2
Drive Shaft, Propeller
Drive Shaft, Propeller

Drive Shaft, Propeller

Tohatsu M3.5A2

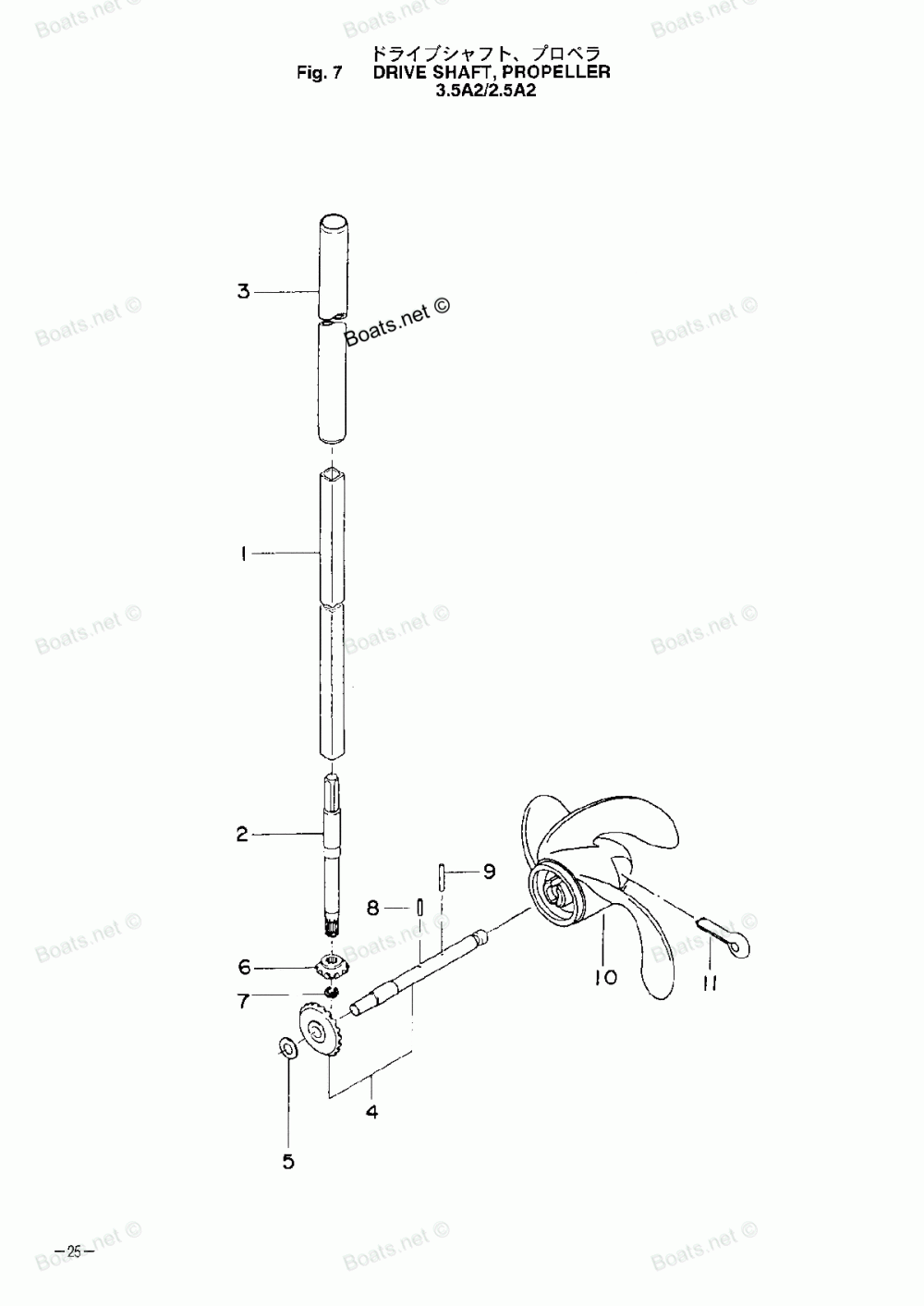

Drive Shaft, Propeller

#

oem код

название

цена

1

DRIVE SHAFT UPPER S

DRIVE SHAFT UPPER S

1

DRIVE SHAFT UPPER L

DRIVE SHAFT UPPER L

2

DRIVE SHAFT LOWER

DRIVE SHAFT LOWER

3

GUARD PIPE S, DRIVE SHAFT

GUARD PIPE S, DRIVE SHAFT

3

GUARD PIPE L, DRIVE SHAFT

GUARD PIPE L, DRIVE SHAFT

4

PROPELLER SHAFT ASSY (W/BEVEL GEAR A)

PROPELLER SHAFT ASSY (W/BEVEL GEAR A)

5

SHIM, 17.5 - 10.2 - 0.2

SHIM, 17.5 - 10.2 - 0.2

5

SHIM, 17.5 - 10.2 - 0.1

SHIM, 17.5 - 10.2 - 0.1

5

SHIM, 17.5 - 10.2 - 0.05

SHIM, 17.5 - 10.2 - 0.05

6

BEVEL GEAR B

BEVEL GEAR B

7

E-RING, D=7

E-RING, D=7

8

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

9

SHEAR PIN (FOR PLASTIC PROP.)

SHEAR PIN (FOR PLASTIC PROP.)

9

SHEAR PIN (FOR ALUMINIUM PROP.)

SHEAR PIN (FOR ALUMINIUM PROP.)

10

PROPELLER 6 (PLASTIC)

PROPELLER 6 (PLASTIC)

10

PROPELLER 6 (ALUMINIUM)

PROPELLER 6 (ALUMINIUM)

10

PROPELLER 7 (PLASTIC)

PROPELLER 7 (PLASTIC)

11

SPLIT PIN, 4 - 35

SPLIT PIN, 4 - 35
