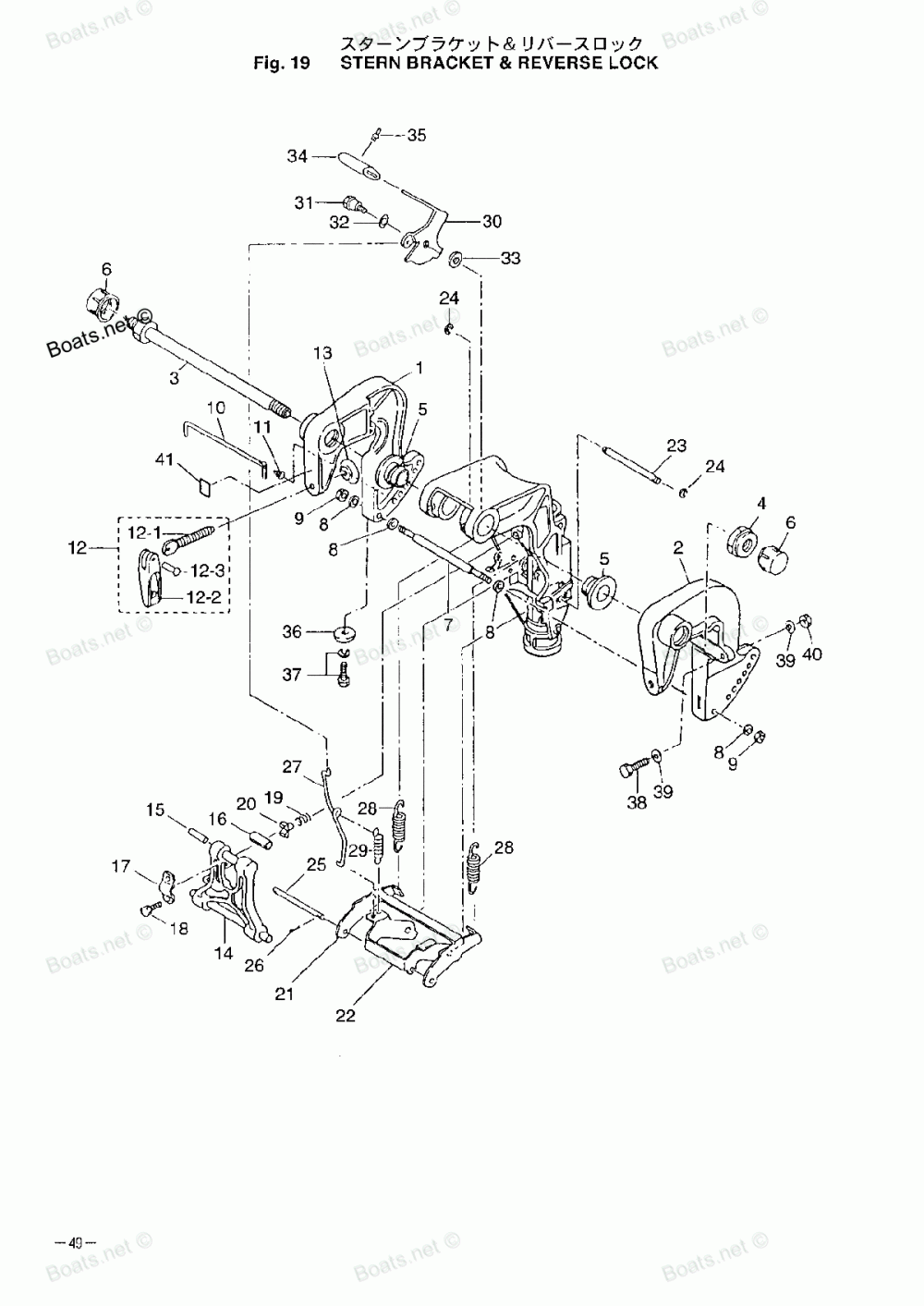

Bracket & Reverse Lock

Tohatsu MFS18B2
Tohatsu
#oem кодцена
1
3G2S621120
STERN BRACKET RIGHT
2
3G2S621130
STERN BRACKET LEFT
3
346621910M
BRACKET BOLT
4
346621240M
NYLON NUT, 7/8
5
349621260M
BUSHING, BRACKET BOLT
6
346621270M
Крышка
7
350621171M
DISTANCE PIECE
8
9401130600
Шайба
9
9301130600
Гайка
10
350621211M
Штанга
11
369621222M
SPRING, THRUST ROD
12
398S621000
CLAMP SCREW ASSEMBLY
12-1
398621030M
CLAMP SCREW
12-3
3C8621041M
RIVET, 3-22
13
332621010M
PAD, CLAMP SCREW
14
3G2S624310
TILT STOPPER
15
9514030535
SPRING PIN, 5-35
16
350624370M
BUSHING, 8.2-10-26.5
17
350624391M
SET PLATE, TILT STOPPER
18
9101135818
Болт
19
3C8624211M
FRICTION SPRING, TILT STOPPER
20
346624380M
SET PIECE
21
3G2663510M
REVERSE LOCK "A"
22
3G2663131M
ARM, REVERSE LOCK
23
3G2663191M
SHAFT, REVERSE LOCK "A"
24
9453030600
E-RING, D=6
25
3G2663210M
ROD, REVERSE LOCK "A"
26
9515030212
SPLIT PIN, 2-12
27
3G2663120M
LINK, REVERSE LOCK "A"
28
3G2663310M
SPRING, REVERSE LOCK
29
350663150M
SPRING, REVERSE LOCK LINK
30
3G2663110M
LEVER, REVERSE LOCK LINK
31
3V9052540M
SHAFT, REVERSE LOCK LEVER
32
9414030800
WAVE WASHER, D=8
33
3c8663080M
Шайба, 6х16х1.5
34
346663330M
GRIP, REVERSE LOCK LEVER
35
346663340M
STOPPER, GRIP
36
338602182M
Анод
37
9101035620
Болт
38
9161130885
Болт
39
9401130800
Шайба
40
9301130800
Гайка
41
3H8720490M
LABEL, CO-PILOT
