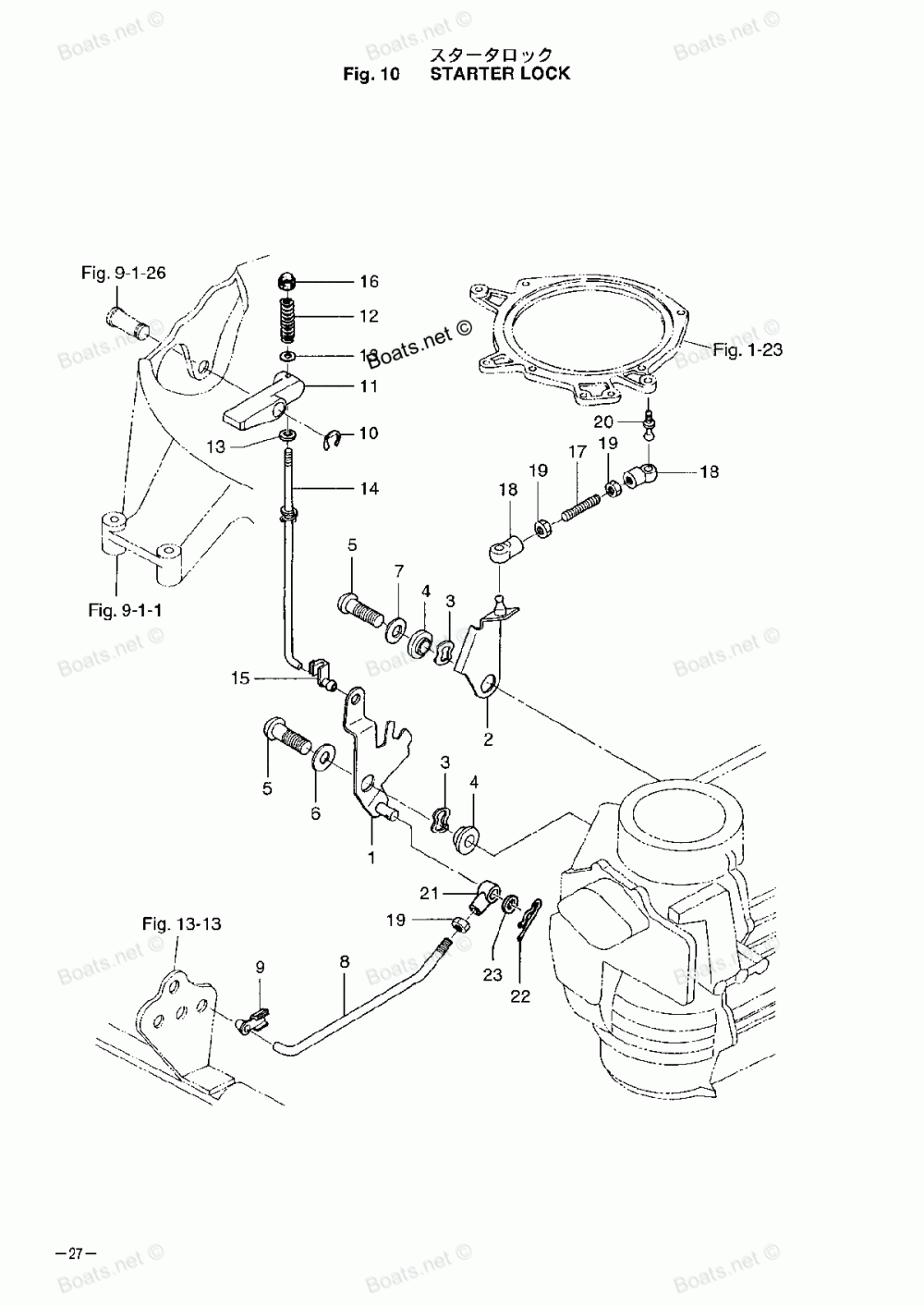

Starter Lock

Tohatsu M25C3

Starter Lock

#

oem код

название

цена

1

LOCK ARM, STARTER

LOCK ARM, STARTER

2

STOP ARM, THROTTLE

STOP ARM, THROTTLE

3

WAVE WASHER, D=10

WAVE WASHER, D=10

4

BUSHING, 6.2 - 16 - 7

BUSHING, 6.2 - 16 - 7

5

Винт

Винт

6

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

7

Шайба

Шайба

8

ROD, STARTER LOCK ARM

ROD, STARTER LOCK ARM

9

ROD SNAP, 5 - 2.5

ROD SNAP, 5 - 2.5

10

E-RING, D=6

E-RING, D=6

11

LEVER, STARTER LOCK

LEVER, STARTER LOCK

12

SPRING, STARTER LOCK

SPRING, STARTER LOCK

13

Шайба

Шайба

14

ROD, STARTER LOCK

ROD, STARTER LOCK

15

ROD SNAP, 3.5 - 2

ROD SNAP, 3.5 - 2

16

CAP, STARTER LOCK LEVER

CAP, STARTER LOCK LEVER

17

ROD, THROTTLE STOP ARM

ROD, THROTTLE STOP ARM

18

CAP "C", BALL JOINT

CAP "C", BALL JOINT

19

Гайка

Гайка

20

BALL JOINT "B"

BALL JOINT "B"

21

ROD JOINT

ROD JOINT

22

R-PIN, D-8

R-PIN, D-8

23

WASHER, 8.5 - 18 - 1.6

WASHER, 8.5 - 18 - 1.6
