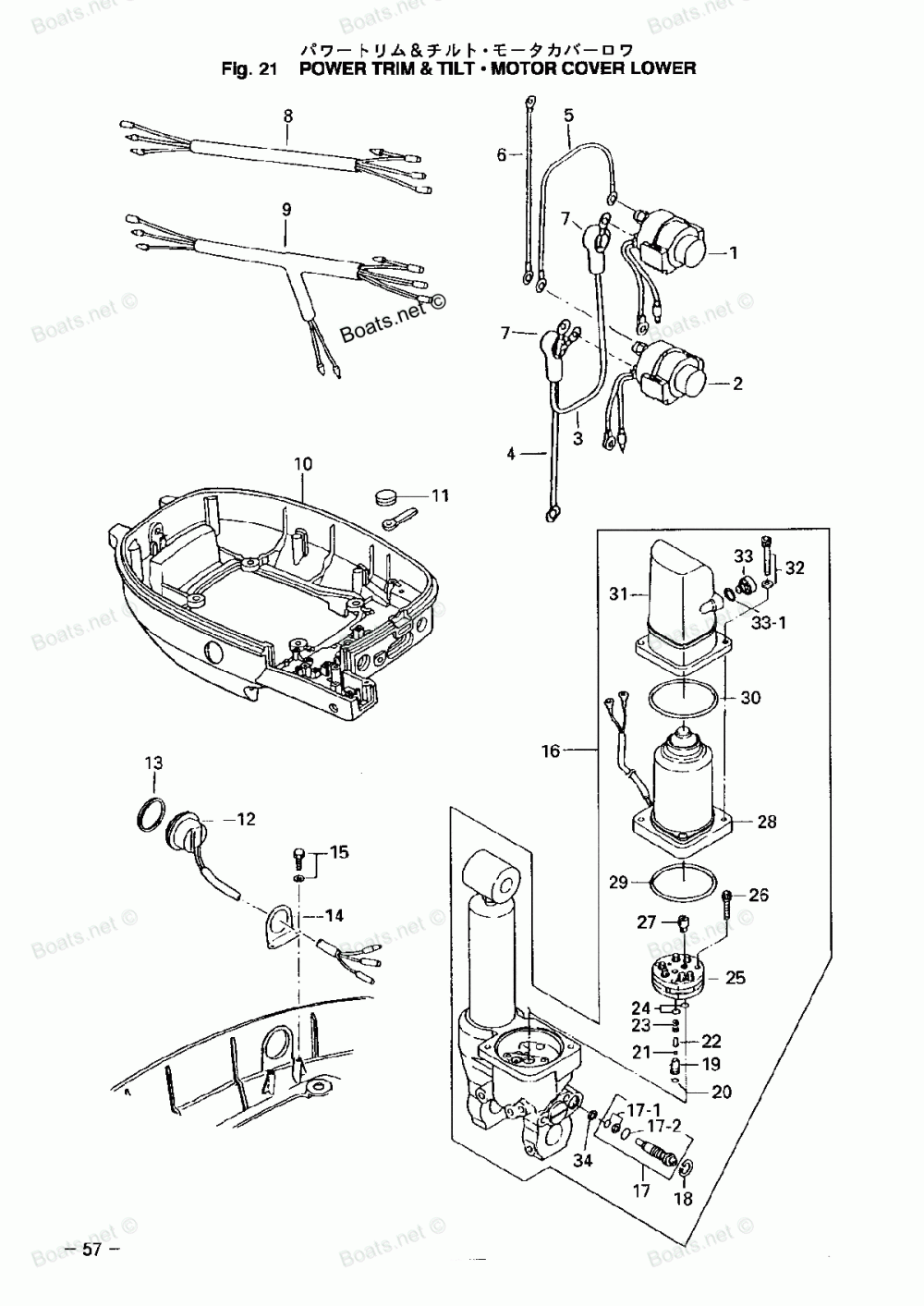

Power Trim & Tilt, Motor Cover Lower

Tohatsu MFS30A
Tohatsu
#oem кодцена
1
3C8725800M
SOLENOID SWITCH A, PTT
2
3C8725810M
SOLENOID SWITCH B, PTT
3
3C7725830M
CORD B SOLENOID SWITCH
4
3C7725820M
CORD A SOLENOID SWITCH
5
3C8725831M
CORD B SOLENOID SWITCH
6
3R0725890M
CORD D SOLENOID SWITCH
7
3A3761450M
CAP, CORD
8
3R0725680M
EXTENSION CORD, EP/PTT
9
3R0725690M
EXTENSION CORD, EP/PTT
10
3S9S671000
MOTOR COVER LOWER
11
338671630M
GROMMET, 18-2.5
12
3F3726150M
PTT SWITCH ASSEMBLY
13
3F3726161M
GASKET, PTT SWITCH
14
3F3726171M
BRACKET, PTT SWITCH
15
9101036614
Болт
16
3R0S771500
POWER TRIM & TILT ASSEMBLY
17
3R0771750M
MANUAL VALVE ASSEMBLY
17-1
3R0774090M
SEAL SET
17-2
3R0771770M
O-RING, 2.4-9.8
18
3R0771710M
C-RING
19
3R0774530M
VALVE SEAT
20
3R0774510M
O-RING, 1.5-3.5
21
3R0774570M
Шарик
22
3R0774540M
Тарелка пружины
23
3R0774550M
Пружина
24
3B7774330M
O-RING, 1.5-6.5
25
3R0774300M
PUMP
26
3B7774311M
Болт
27
3E0771630M
COUPLING, PUMP
28
3R0771800M
MOTOR ASSEMBLY
29
3R0771670M
O-RING, 2-62.5
30
3C8771820M
O-RING, 2.4-66.6
31
3R0771650M
RESERVOIR TANK
32
3R0771590M
Болт
33
3R0771680M
CAP ASSEMBLY
33-1
3R0771690M
O-RING, 1.9-9.8
34
3R0771730M
SEAL WASHER
