Bracket, Ptt & Gas Assistant Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS30B (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2005
MFS30B

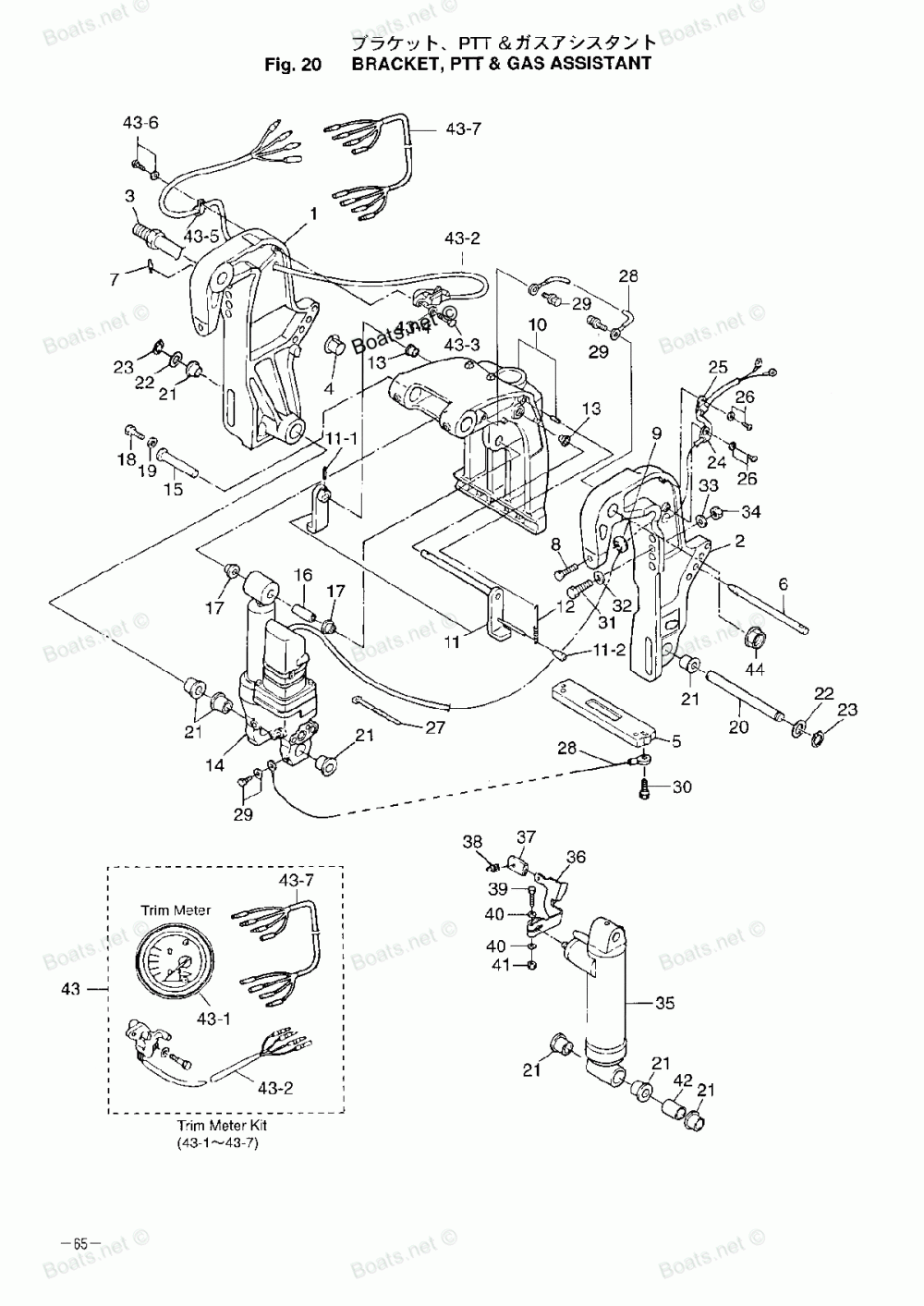

Bracket, Ptt & Gas Assistant
Bracket, Ptt & Gas Assistant

Bracket, Ptt & Gas Assistant

Tohatsu MFS30B

Bracket, Ptt & Gas Assistant

#

oem код

название

цена

1

CLAMP BRACKET RIGHT

CLAMP BRACKET RIGHT

1

CLAMP BRACKET RIGHT

CLAMP BRACKET RIGHT

2

CLAMP BRACKET LEFT

CLAMP BRACKET LEFT

2

CLAMP BRACKET LEFT

CLAMP BRACKET LEFT

3

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

4

BUSHING, BRACKET BOLT

BUSHING, BRACKET BOLT

5

Анод

Анод

6

Штанга

Штанга

7

SNAP PIN, DIAMETER: 10

SNAP PIN, DIAMETER: 10

8

CLAMP SCREW

CLAMP SCREW

9

PAD, CLAMP SCREW

PAD, CLAMP SCREW

10

SWIVEL BRACKET

SWIVEL BRACKET

11

TILT STOPPER

TILT STOPPER

11

TILT STOPPER GAS ASSEMBLY

TILT STOPPER GAS ASSEMBLY

11-1

SPRING PIN, 3.5-16

SPRING PIN, 3.5-16

11-2

GRIP, TILT STOPPER

GRIP, TILT STOPPER

12

SPRING, TILT STOPPER

SPRING, TILT STOPPER

13

COLLAR, 10.2-12-12

COLLAR, 10.2-12-12

14

POWER TRIM & TILT

POWER TRIM & TILT

15

CYLINDER PIN UPPER

CYLINDER PIN UPPER

16

BUSHING, 13-16-40

BUSHING, 13-16-40

17

BUSHING, 13-17-19.5

BUSHING, 13-17-19.5

18

Болт

Болт

19

WASHER, 6.5-23-1.5

WASHER, 6.5-23-1.5

20

CYLINDER PIN LOWER

CYLINDER PIN LOWER

21

BUSHING, 18-24-22

BUSHING, 18-24-22

22

WASHER, 18.2-34-1

WASHER, 18.2-34-1

23

C-RING, D=18

C-RING, D=18

24

CLAMP, 6-9.5L

CLAMP, 6-9.5L

25

CLAMP, 6-14L

CLAMP, 6-14L

26

Винт

Винт

27

BAND, LEAD WIRE 300

BAND, LEAD WIRE 300

28

GROUND CABLE

GROUND CABLE

29

Болт

Болт

30

Болт

Болт

31

BOLT 12-P1.25

BOLT 12-P1.25

32

WASHER, 13-34-3

WASHER, 13-34-3

33

Шайба

Шайба

34

NUT, P1.25

NUT, P1.25

35

GAS SHOCK ABSORBER

GAS SHOCK ABSORBER

36

Рычаг Блокировки

Рычаг Блокировки

37

GRIP, LOCK LEVER

GRIP, LOCK LEVER

38

STOPPER, LEVER GRIP

STOPPER, LEVER GRIP

39

Болт

Болт

40

Шайба

Шайба

41

Гайка

Гайка

42

COLLAR, 18.2-21.7-30

COLLAR, 18.2-21.7-30

43

TRIM METER KIT

TRIM METER KIT

43-1

TRIM METER

TRIM METER

43-2

TRIM SENSOR

TRIM SENSOR

43-3

Болт

Болт

43-4

WASHER 6-16-1.5

WASHER 6-16-1.5

43-5

CLAMP, 6-9.5L

CLAMP, 6-9.5L

43-6

Винт

Винт

43-7

EXTENSION CORD, TRIM SENSOR

EXTENSION CORD, TRIM SENSOR

44

NYLON NUT, 7/8

NYLON NUT, 7/8
