Переключения

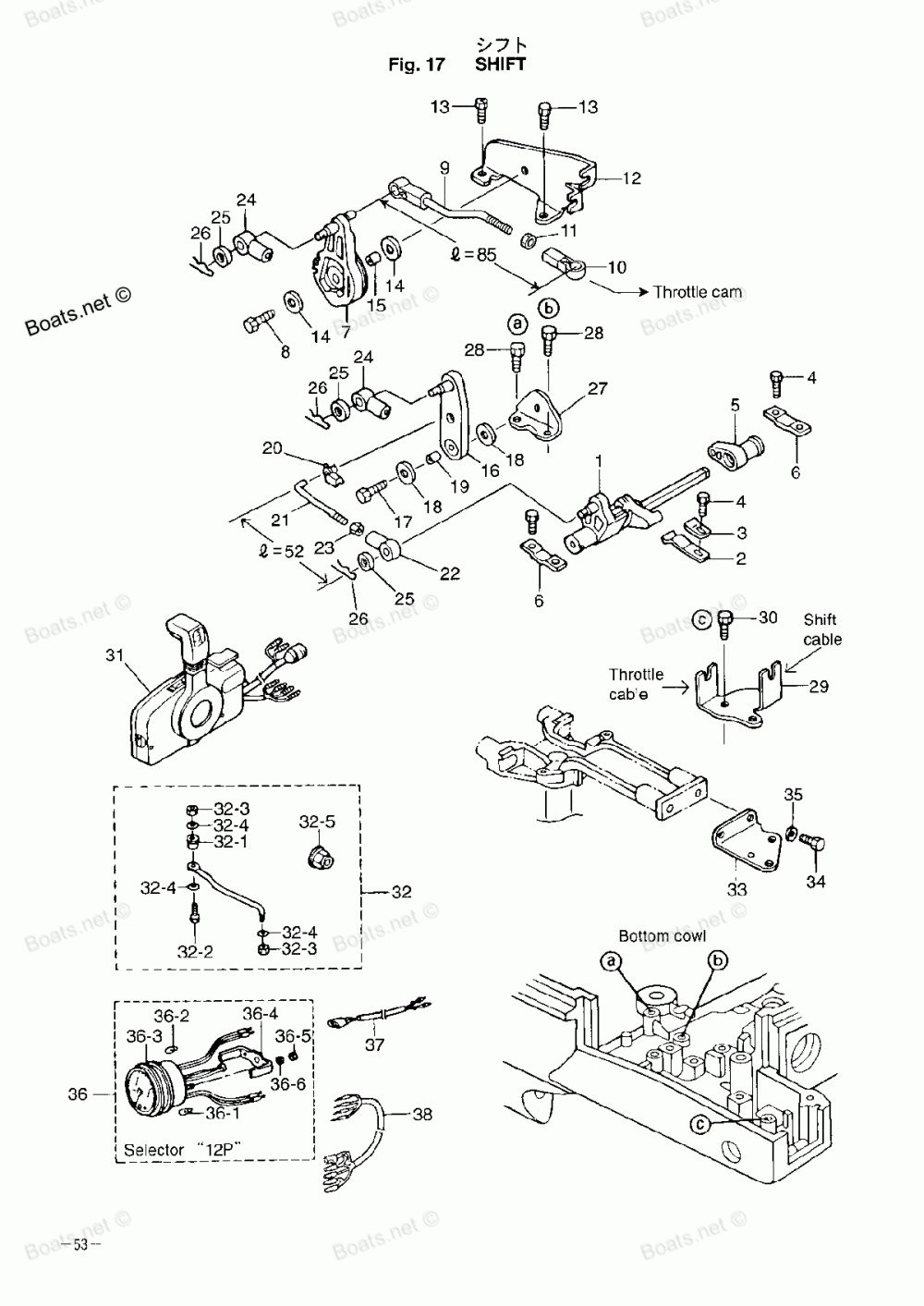

Tohatsu MFS30B
Tohatsu
#oem кодцена
1
3R0661300M
SHIFT LEVER SHAFT ASSEMBLY
2
3C8661120M
STOPPER, SHIFT LEVER
3
3C8661160M
PLATE, SHIFT LEVER
4
9101135612
Болт
5
3R0662250M
Рычаг вала
6
3R3661450M
PLATE, SHIFT LEVER SHAFT
7
3AC636220M
THROTTLE DRAM
8
9101130620
Болт
9
3AC636100M
THROTTLE LINK ROD ASSEMBLY
10
3B7052430M
BALL JOINT CONNECTOR
11
9301030500
Гайка
12
3AC635080M
BRACKET, THROTTLE CABLE
13
9101035612
Болт
14
3c8663080M
Шайба, 6х16х1.5
15
353760790M
COLLAR, 6.2-9-9.3
16
3AC661220M
SHIFT ARM
17
9101135620
Болт
18
3c8663080M
WASHER, 6.2-9-9.3
19
353760790M
COLLAR, 6.2-9-9.3
20
3C8637330M
ROD SNAP, 5-3
21
3R0637090M
LINK ROD, 4.5-40.5
22
3R0837150M
CABLE JOINT
23
9301030500
Гайка
24
3B7837151M
CABLE JOINT
25
3AA837190M
WASHER, 8.5-18-1.6
26
9516030800
R-PIN, DIAMETER: 8
27
3R0661260M
BRACKET, SHIFT ARM
28
9101135616
Болт
29
3R0838200M
CABLE CLIP
30
9101135616
Болт
31
3B7Q843402
REMOTE CONTROL BOX, RC5B
32
3E0849050M
DRAG LINK H
32-1
3E0849140M
SPACER, DRAG LINK H
32-2
3E0849170M
BOLT 3/8-50
32-3
353849180M
NYLON NUT, 3/8
32-4
353849160M
WASHER, 9.6-18-2
32-5
3F3849080M
SEAL RING, DRAG LINK
33
3R0838300M
STEERING HOOK PLATE
34
9101031030
Болт
35
9401131000
Шайба
36
3N8726401M
TACHOMETER WITH OIL LAMP
36-1
3B7726580M
BULB, OIL 12V-1.7W
36-2
3B7726590M
BULB, METER 12V-1.7W
36-3
3B7726560M
DAMPER, METER
36-4
3B7726610M
Плата
36-5
9302030500
Гайка
36-6
9413030500
Пружинная шайба
37
361725390M
LEAD WIRE, TACHOMETER
38
3R0725371M
LEAD WIRE, METER
