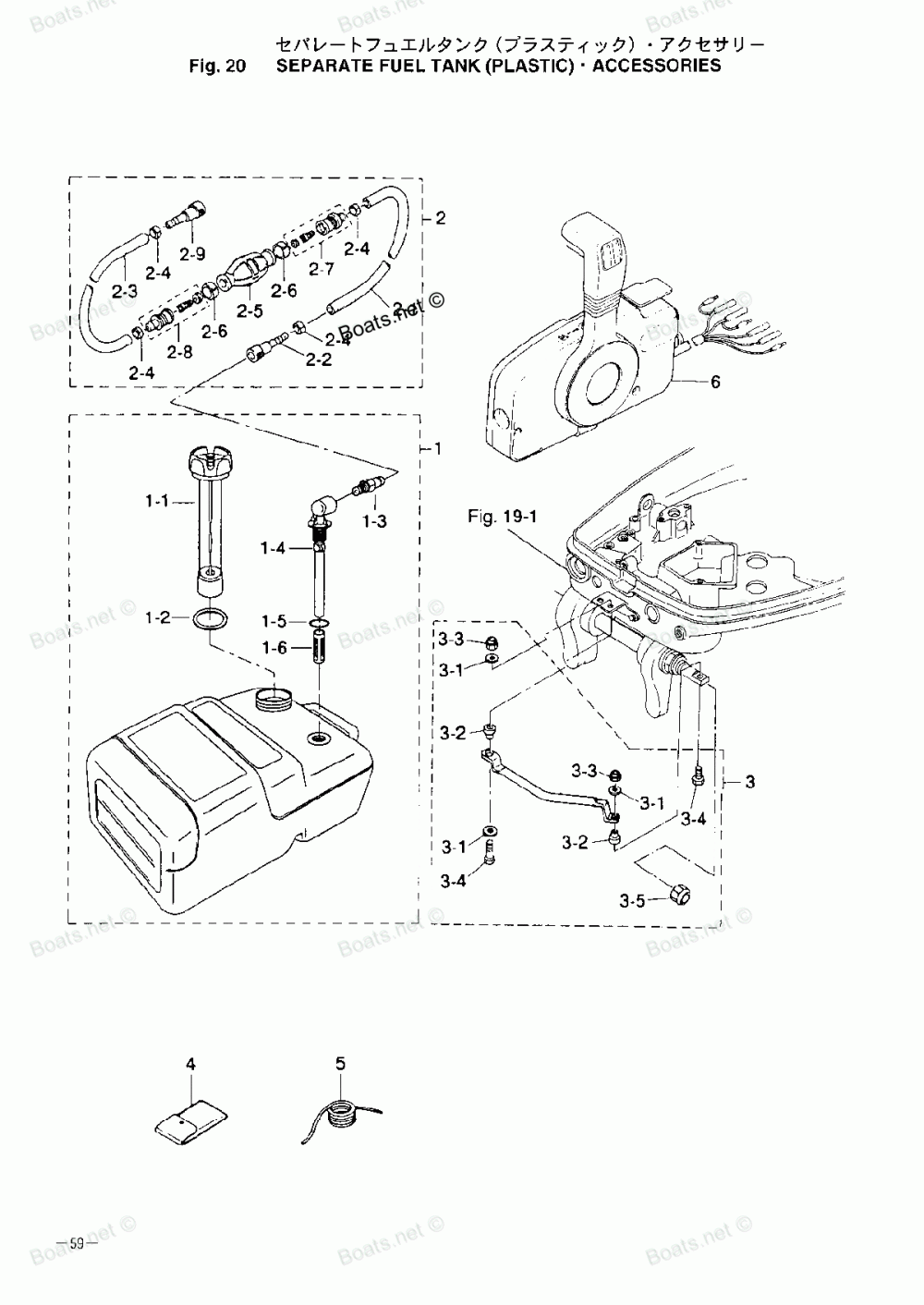

Топливный бак (выносной)

Tohatsu M40C
Tohatsu
#oem кодцена
1
3C7701770M
FUEL TANK (25L)
1-1
3C7700500M
FUEL GAUGE VENTED CAP
1-2
3C7700210M
CAP GASKET
1-3
3E0702700M
MALE QUICK CONNECTOR
1-4
3C7701550M
ELBOW TUBING AND CLAMP ASSEMBLY
1-5
3C7701990M
Уплотнительное кольцо
1-6
3C7701130M
FITER
2
3B7702003M
PRIMER BULB ASSEMBLY
2-1
98AB71600M
FUEL PIPE
2-2
3B2702810M
FUEL CONNECTOR (TANK SIDE, FEMALE)
2-3
98AB71600M
FUEL PIPE
2-3
98AB70700M
FUEL PIPE
2-4
332702010M
Зажим
2-5
3C7702110M
PRIMER BULB
2-6
3C7702170M
Зажим
2-7
3C7702201M
JOINT "A" ASSEMBLY IN
2-8
3C7702241M
JOINT "A" ASSEMBLY OUT
2-9
3B2702501M
FUEL CONNECTOR (ENGINE SIDE, FEMALE)
3
361849051M
DRAG LINK "B" ASSEMBLY
3-1
353849160M
WASHER, 9.6 - 18 - 2
3-2
361849140M
SPACER, DRAG LINK
3-3
353849180M
NYLON NUT, 3/8
3-4
353849170M
BOLT, 3/8 - 45
3-5
3F3849080M
SEAL RING, DRAG LINK
4
3C8721001M
TOOL
5
3B7722010M
ROPE
6
3B7843502M
REMOTE CONTROL BOX (RC5C)
6
3B7843600M
REMOTE CONTROL BOX (RC5D)
