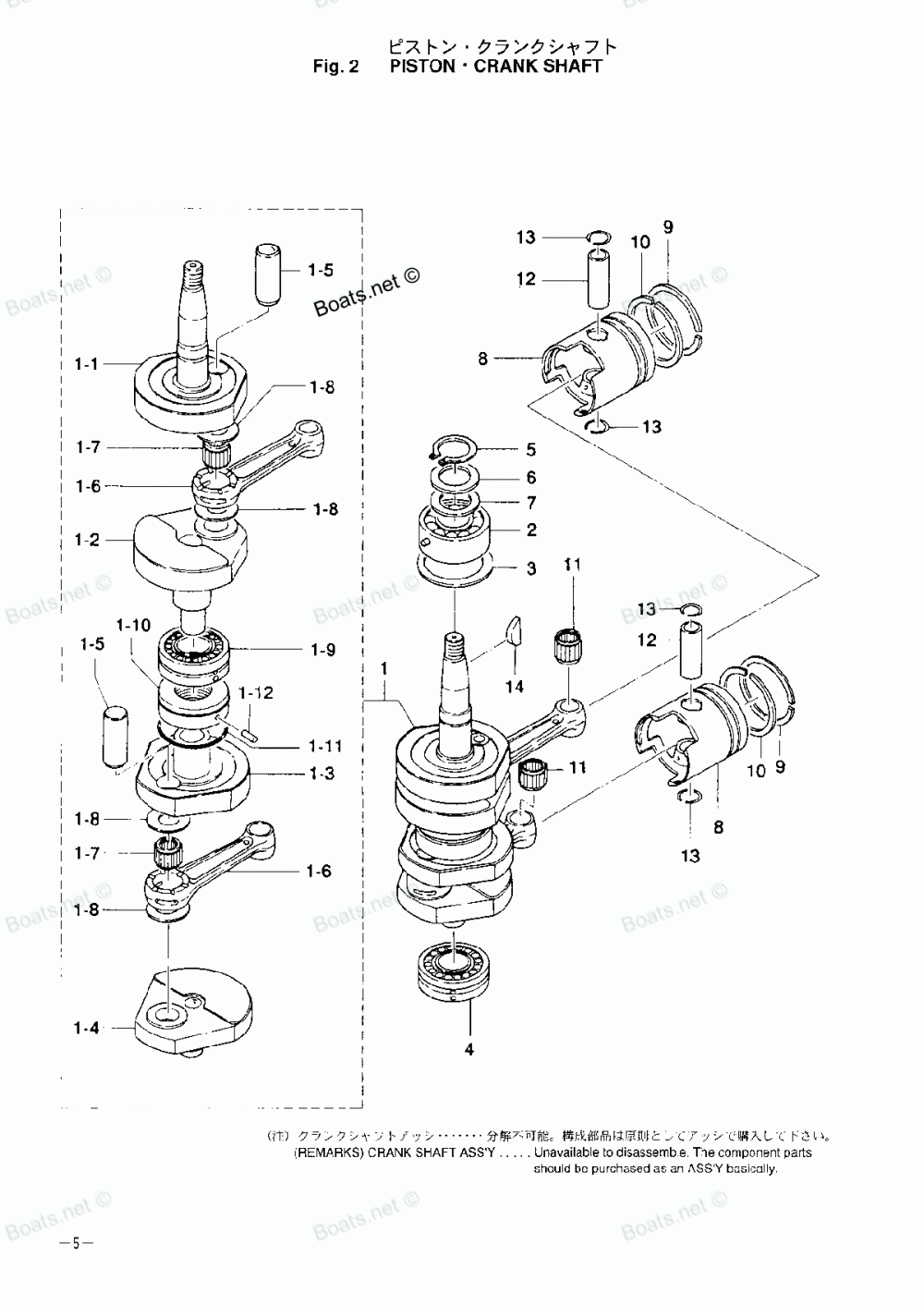

Поршни и коленчатый вал

Tohatsu M40C
Tohatsu
#oem кодцена
1
348000300M
CRANK SHAFT
1-2
348000320M
CRANK SHAFT "B"
1-3
348000330M
CRANK SHAFT "C"
1-4
348000340M
CRANK SHAFT "D"
1-5
348000610M
CRANK PIN
1-6
345000401M
Шатун
1-7
345000430M
NEEDLE BEARING, 25 - 32 - 20
1-8
345000450M
WASHER, BIG END BEARING
1-9
345001140M
BALL BEARING, 355520
1-10
345000510M
LABYRINTH PACKING
1-11
345000530M
O-RING, 2 - 49.5
1-12
9514070306
SPRING PIN, 3 - 6
2
345001130M
BALL BEARING, 3026
3
345001150M
RETAINER, 56 - 66 - 1.6
5
9451073000
C-CLIP, D=30
6
345001160M
SPACER, 30.2 - 40 - 2.3
7
345001410M
SHIM, 31 - 42
8
361000010M
Поршень (STD)
8
361000040M
PISTON (0.5MM O/S)
9
361000110M
PISTON RING 1ST (STD)
9
361000140M
PISTON RING 1ST (0.5MM O/S)
10
345001410M
PISTON RING 2ND (STD)
10
345000110M
PISTON RING 2ND (0.5MM O/S)
11
345000140M
NEEDLE BEARING, 17 - 21 - 27
12
345000420M
Палец поршневой
13
345000210M
CLIP, PISTON PIN
13
334000241M
CLIP, PISTON PIN
14
334001310M
KEY, MAGNETO
