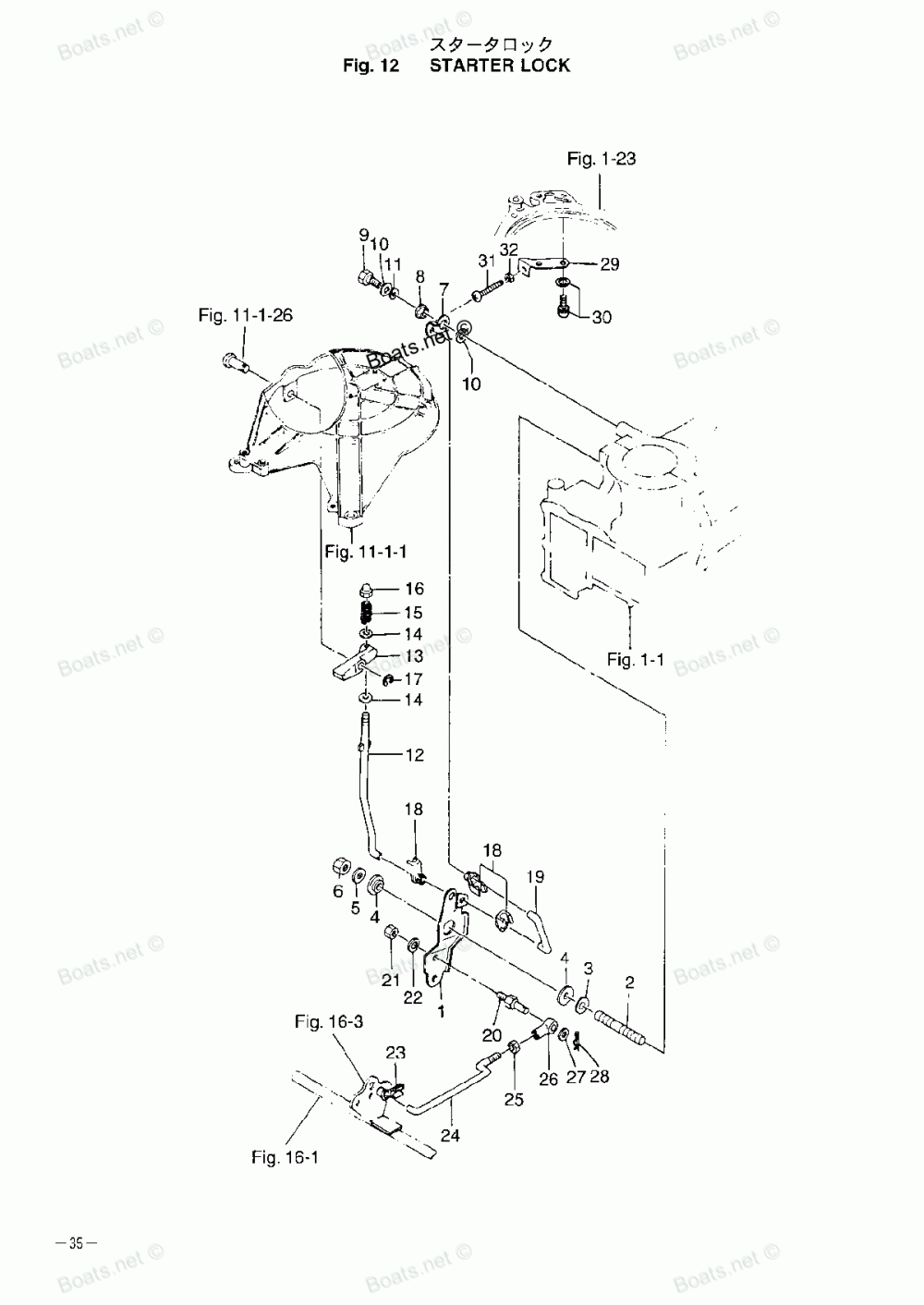

Starter Lock

Tohatsu M40C

Starter Lock

#

oem код

название

цена

1

DRIVE SHAFT HOUSING "S"

DRIVE SHAFT HOUSING "S"

1

LOCK ARM, STARTER

LOCK ARM, STARTER

2

STUD BOLT, DRIVE SHAFT, HOUSING "S"

STUD BOLT, DRIVE SHAFT, HOUSING "S"

2

Шпилька

Шпилька

3

NUT, DRIVE SHAFT HOUSING "S"

NUT, DRIVE SHAFT HOUSING "S"

3

WASHER, 8.5-19.5-3.2

WASHER, 8.5-19.5-3.2

4

Болт

Болт

4

BUSHING, 8-14-4

BUSHING, 8-14-4

5

WASHER, 8.1-16-1.5

WASHER, 8.1-16-1.5

5

Шайба

Шайба

6

NYLON NUT, 8P - 1.25

NYLON NUT, 8P - 1.25

6

Болт

Болт

7

STOP ARM, THROTTLE

STOP ARM, THROTTLE

7

EXTENSION HOUSING "UL"

EXTENSION HOUSING "UL"

8

Болт

Болт

8

BUSHING, 6.2-16-5

BUSHING, 6.2-16-5

9

Болт

Болт

9

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

10

Шайба

Шайба

10

ENGINE BASE

ENGINE BASE

11

Упругая Шайба

Упругая Шайба

11

GASKET, ENGINE BASEMENT

GASKET, ENGINE BASEMENT

12

OIL SEAL, 17-30-8

OIL SEAL, 17-30-8

12

ROD, STARTER LOCK

ROD, STARTER LOCK

13

LEVER, STARTER LOCK

LEVER, STARTER LOCK

13

SEAL RUBBER, ENGINE BASE

SEAL RUBBER, ENGINE BASE

14

BOLT, ENGINE BASE

BOLT, ENGINE BASE

14

Шайба

Шайба

15

Пружинная шайба

Пружинная шайба

15

SPRING, STARTER LOCK

SPRING, STARTER LOCK

16

KNOCK, 6-12

KNOCK, 6-12

16

CAP, STARTER LOCK LEVER

CAP, STARTER LOCK LEVER

17

E-RING, D=6

E-RING, D=6

17

EXHAUST PIPE, "S"

EXHAUST PIPE, "S"

17

EXHAUST PIPE, "L", & "UL"

EXHAUST PIPE, "L", & "UL"

18

ROD SNAP, 3.5 - 2

ROD SNAP, 3.5 - 2

18

LOCK PLATE, EXHAUST PIPE

LOCK PLATE, EXHAUST PIPE

19

Болт

Болт

19

ROD, THROTTLE STOP ARM

ROD, THROTTLE STOP ARM

20

Болт

Болт

20

PIN, ROD JOINT

PIN, ROD JOINT

21

GASKET, 8.1-15-1

GASKET, 8.1-15-1

21

Гайка

Гайка

22

Пружинная шайба

Пружинная шайба

23

ROD SNAP, 5-2.5

ROD SNAP, 5-2.5

24

LINK, STARTER LOCK ARM

LINK, STARTER LOCK ARM

25

Гайка

Гайка

26

5 ROD JOINT

5 ROD JOINT

27

WASHER, 8.5 - 18 - 1.6

WASHER, 8.5 - 18 - 1.6

28

R-PIN, D=8

R-PIN, D=8

29

PLATE, THROTTLE ADJUST

PLATE, THROTTLE ADJUST

30

Винт

Винт

31

Винт

Винт

32

Гайка

Гайка
