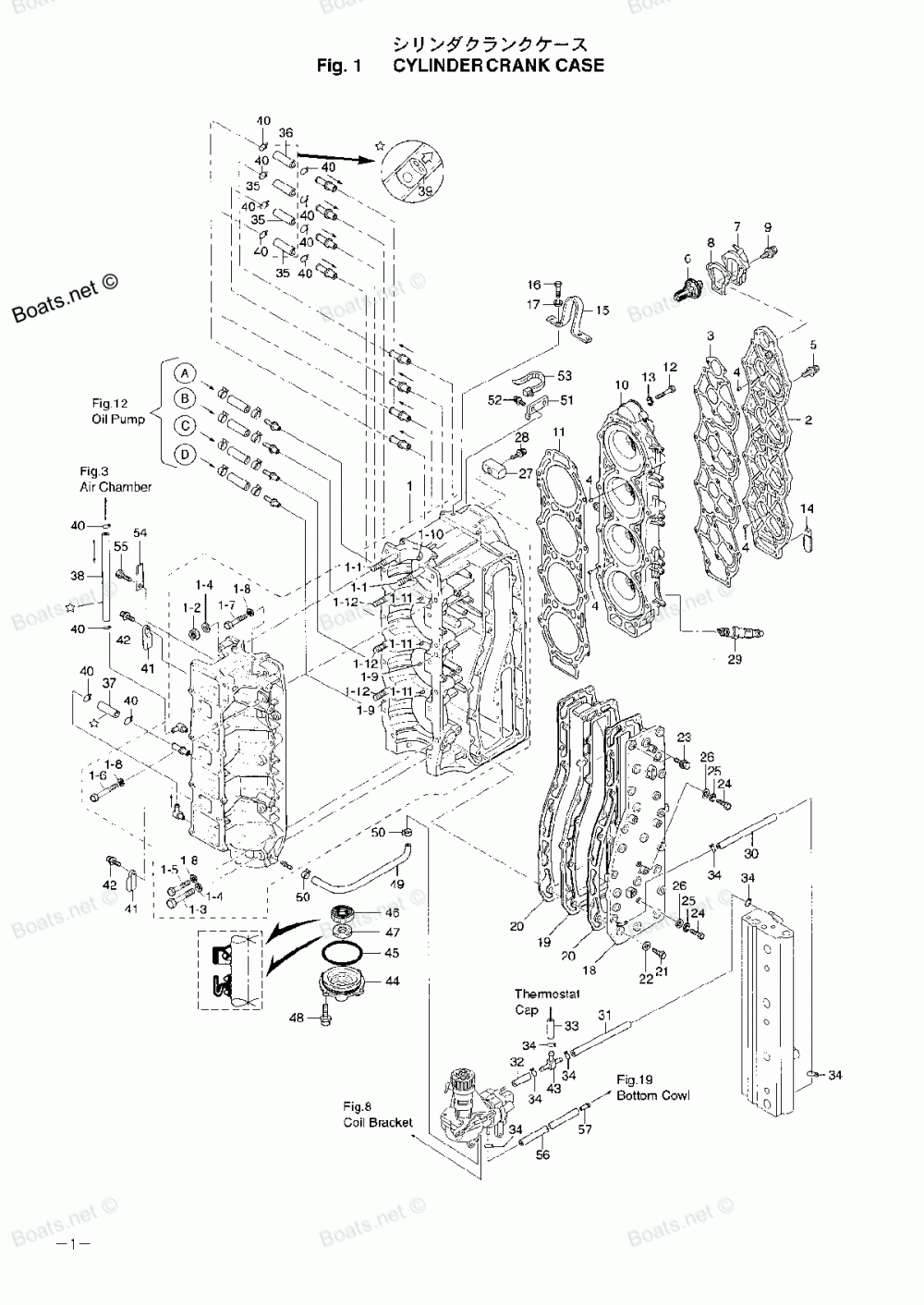

Cylinder Crank Case

Tohatsu M115A2
Tohatsu
#oem кодцена
1
3T1B011000
CYLINDER-CRANK CASE
1
9153241065
Шпилька
2
9311211000
NUT, 10 - P1.25
2
3T1B010210
CYLINDER HEAD COVER
3
9161291065
Болт
3
3T1010240M
CYLINDER HEAD COVER GASKET
4
3B7011160M
WASHER, 10.5 - 20 - 3.2
4
334650120M
DOWN PIN, 4 - 10
5
9161240850
Болт
5
9101217625
Болт
6
3C7010300M
Термостат
6
9161240865
Болт
7
3T9B010600
THERMOSTAT CAP
7
9161240840
Болт
8
345010150M
WASHER, 8.5 - 19.5 - 3.2
8
3T9010320M
THERMOSTAT CAP GASKET
9
9101135640
Болт
9
345011110M
DOWEL PIN, 6 - 12
10
3T1B010910
Головка цилиндра
10
3T9001170M
MAIN BEARING DOWEL PIN
11
3T1010050M
Прокладка головки блока цилиндров
11
345001170M
MAIN BEARING DOWEL PIN
12
9161290875
Болт
12
9153241055
Шпилька
14
3T5069710M
CLAMP, 8.5 - 85P
15
3C7015132M
HANGER
16
9101140820
Болт
17
9413220800
Пружинная шайба
18
3T1B023000
EXHAUST COVER (OUTER)
19
3C7B023020
EXHAUST COVER (INNER)
20
3C7023050M
EXHAUST COVER GASKET
21
9101140835
Болт
22
9401210800
Шайба
23
9101135840
Болт
24
9101140630
Болт
25
9413220600
Пружинная шайба
26
9401210600
Шайба
27
3B7602181M
Анод
28
9101035630
Болт
29
970111109M
SPARK PLUG
30
98AB50360M
RUBBER HOSE
31
98AB50065M
RUBBER HOSE
33
98AB50115M
RUBBER HOSE
34
338022150M
CLIP, ∅10
35
98AL40080M
LUBRICATION HOSE
36
98AL40480M
LIBRICATION HOSE
37
98AL40300M
LIBRICATION HOSE
38
98AL40280M
LIBRICATION HOSE
39
393011600M
Обратный клапан
40
338011330M
CLIP, ∅7
41
345069150M
CLAMP, 6.5 - 14L
42
9101036612
Болт
43
3T7011750M
T-NIPPLE (WITH VALVE)
44
3B7012911M
CRANK CASE HEAD
45
171000530M
O-RING, 2 - 74.5
46
3T9001210M
OIL SEAL, 35 - 58 - 9
47
3C7012150M
OIL SEAL, 19.6 - 35 - 10
48
9101135620
Болт
49
99AA20650M
OIL PIPE
50
3B7090520M
CLIP, ∅6.9
51
3T1761740M
LEAD WIRE BAND STAY
53
3T1843980M
LEAD WIRE BAND, 170
54
3T1069720M
Зажим
55
9101036610
Болт
56
3T1011380M
WATER NIPPLE
57
98AB50500M
WATER NIPPLE HOSE
