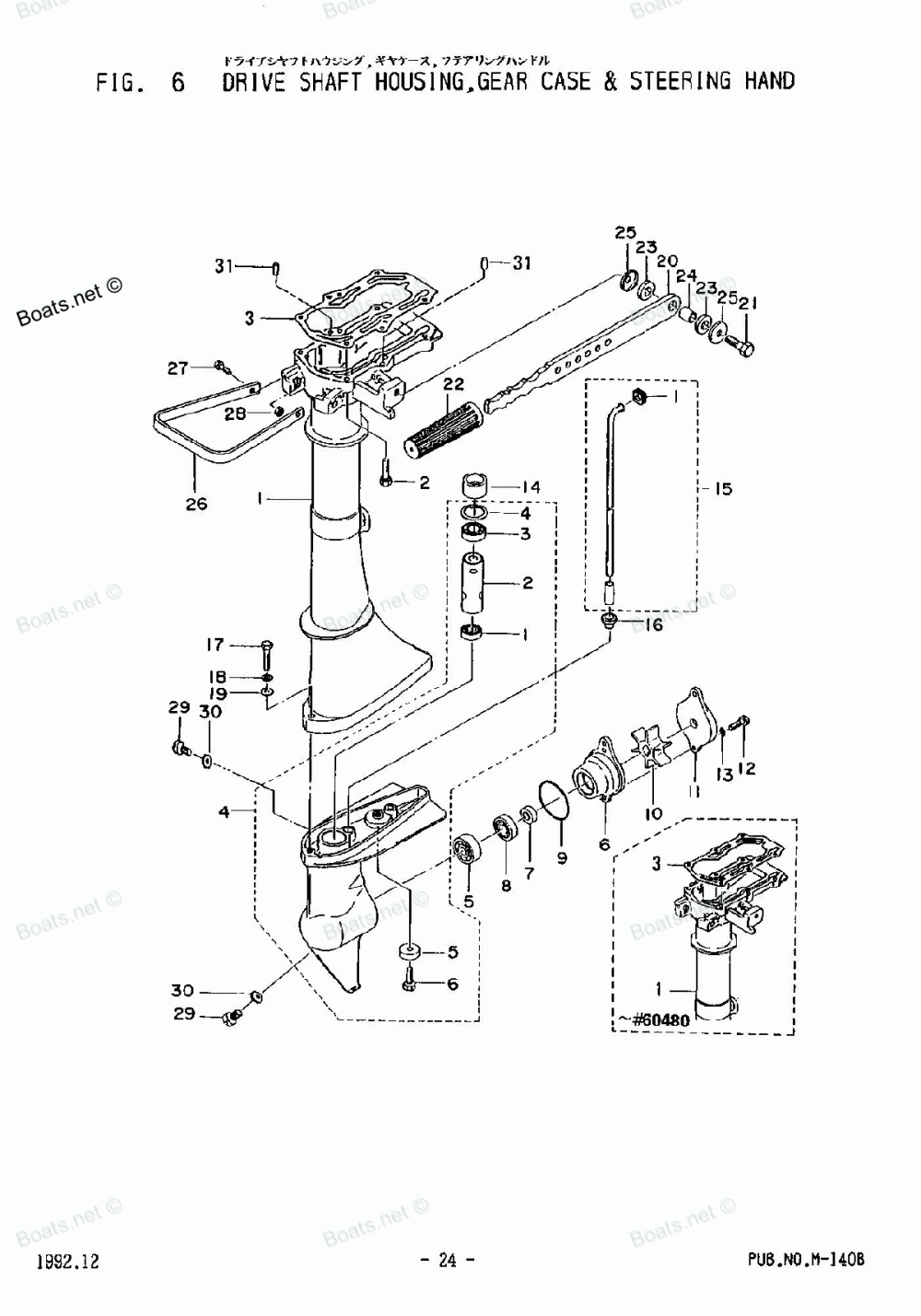

Drive Shaft Housing, Gear Case & Steering Handle

Tohatsu M3.5A
Tohatsu
#oem кодцена
1
309610200M
DRIVE SHAFT HOUSING S15"
1
309610201M
DRIVE SHAFT HOUSING S15"
1
N09610201M
DRIVE SHAFT HOUSING S15"
1
309S610202
DRIVE SHAFT HOUSING S
1
309610300M
DRIVE SHAFT HOUSING L20"
1
309S610302
DRIVE SHAFT HOUSING L
1
309650310M
WATER TUBE GROMMET, UPPER
1
309610301M
DRIVE SHAFT HOUSING L20"
1
960106000M
DRIVE SHAFT BALL BEARING, LOWER
1
N09610301M
DRIVE SHAFT HOUSING L20"
2
309643211M
SPACER, DRIVE SHAFT BEARING
2
9101035625
Болт корпуса тяги
3
309610121M
GASKET, DRIVE SHAFT HOUSING
3
960106001M
DRIVE SHAFT BALL BEARING, UPPER
3
309610120M
GASKET, DRIVE SHAFT HOUSING
4
345011110M
DOWEL PIN, 6 - 12
4
945022800M
CLIP, DRIVE SHAFT BEARING
4
309600001M
GEAR CASE ASSY
4
309S600002
GEAR CASE ASSY
5
309S600002
GEAR CASE ASSY
5
338602181M
Анод
5
960106300M
BALL BEARING A, PROPELLER SHAFT
5-1
960106000M
BEARING, 6000
5-2
309643210M
SPACER, DRIVE SHAFT BEARING
5-3
960106001M
BEARING, 6001
5-4
9450022800
C-RING, D=28
5-5
338602182M
Анод
5-6
9101030616
Болт
6
309650100M
WATER PUMP CASE
6
960106300M
BEARING, 6300
6
9101030616
Болт
7
309601110M
OIL SEAL, PROPELLER SHAFT
7
309S650101
WATER PUMP CASE
8
309601110M
OIL SEAL, 12 - 24 - 8
9
309650150M
O-RING, WATER PUMP CASE
10
309650210M
Импеллер
10
309650150M
O-RING, 1.5 - 47.75
11
309650210M
Импеллер
11
309601010M
HEAD, GEAR CASE
11
N09601010M
HEAD, GEAR CASE
12
309S601011
GEAR CASE HEAD
12
9101030620
BOLT, GEAR CASE HEAD
13
940130600M
Шайба
13
9101035620
Болт
14
309602230M
OIL SEAL, DRIVE SHAFT
15
309651000M
WATER TUBE S15" ASSY
15
309651100M
WATER TUBE L20" ASSY
15-1
309650311M
GROMMET UPPER, WATER TUBE
16
309650320M
GROMMET LOWER, WATER TUBE
17
9101145630
BOLT, GEAR CASE
17
9101037630
Болт
18
9413030600
SPRING WASHER, GEAR CASE
18
309S630110
STEERING HANDLE
19
9101030830
Болт
20
309630110M
STEERING HANDLE
20
309S630110
STEERING HANDLE
20
309630120M
GRIP, STEERING HANDLE
21
9101030830
BOLT, STEERING HANDLE
21
309630240M
DAMPER RUBBER, STEERING HANDLE
22
309630250M
SPACER, 8.4 -12 - 14.2
22
309630120M
GRIP, STEERING HANDLE
23
345671150M
Шайба
23
309630240M
DAMPER RUBBER, STEERING HANDLE
24
309630250M
SPACER, STEERING HANDLE
24
309S675210
CARRYING HANDLE
25
345671140M
PLATE, STEERING HANDLE
25
9101030625
Болт
26
309675210M
CARRYING HANDLE
26
309S675210
CARRYING HANDLE
26
9301030600
Гайка
27
9101140625
BOLT, CARRYING HANDLE
27
332600051M
OIL PLUG
28
332600060M
GASKET, 8.2 - 15 - 1
28
9301030600
NUT, CARRYING HANDLE
29
332600050M
OIL PLUG
30
332600060M
GASKET, OIL PUG
31
345011110M
DOWEL PIN 6-12
