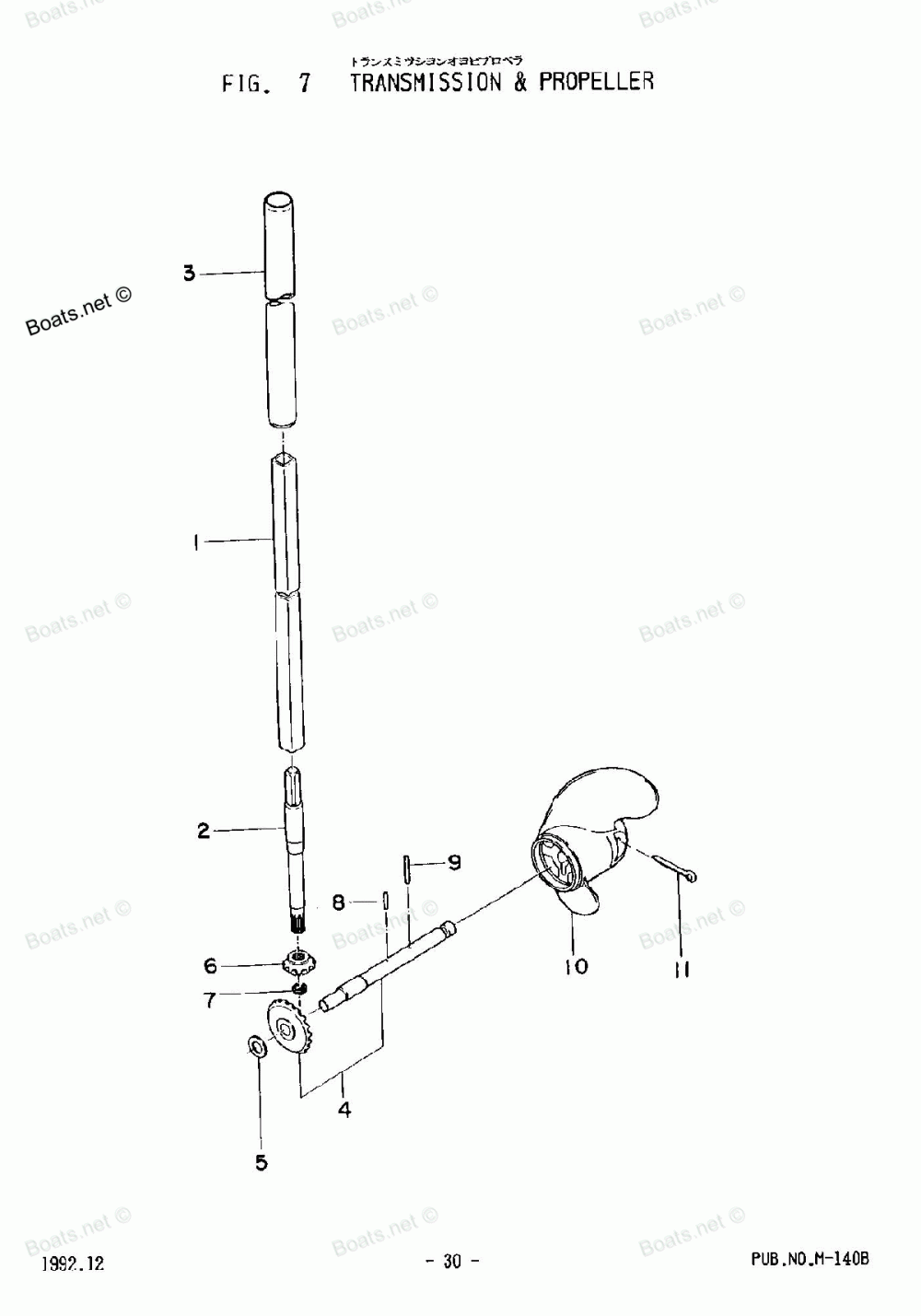

Transmission & Propeller

Tohatsu M3.5A
Tohatsu
#oem кодцена
1
309643121M
DRIVE SHAFT, UPPER, S15"
1
309643131M
DRIVE SHAFT, UPPER, L20"
2
309643111M
DRIVE SHAFT, LOWER
3
309643220M
GUARD PIPE S15", DRIVE SHAFT
3
309643230M
GUARD PIPE L20", DRIVE SHAFT
4
309642100M
PROPELLER SHAFT ASSY (W/PRESSED-IN BEVEL GEAR A)
5
309640120M
LINER, BEVEL GEAR A
6
309640200M
BEVEL GEAR B
7
945320800M
E-RING, BEVEL GEAR B
8
309650220M
IMPELLER KEY
9
309641221M
SHEAR PIN (FOR RESIN PROP.)
9
309641220M
SHEAR PIN (FOR ALUMINIUM PROP.)
10
309641010M
PROPELLER 6.5(A) (RESIN)
10
309641060M
PROPELLER (RESIN)
10
309641020M
PROPELLER 6.5(B) (ALUMINIUM)
10
309641070M
PROPELLER (ALUMINIUM(
11
9515030435
SPLIT PIN
