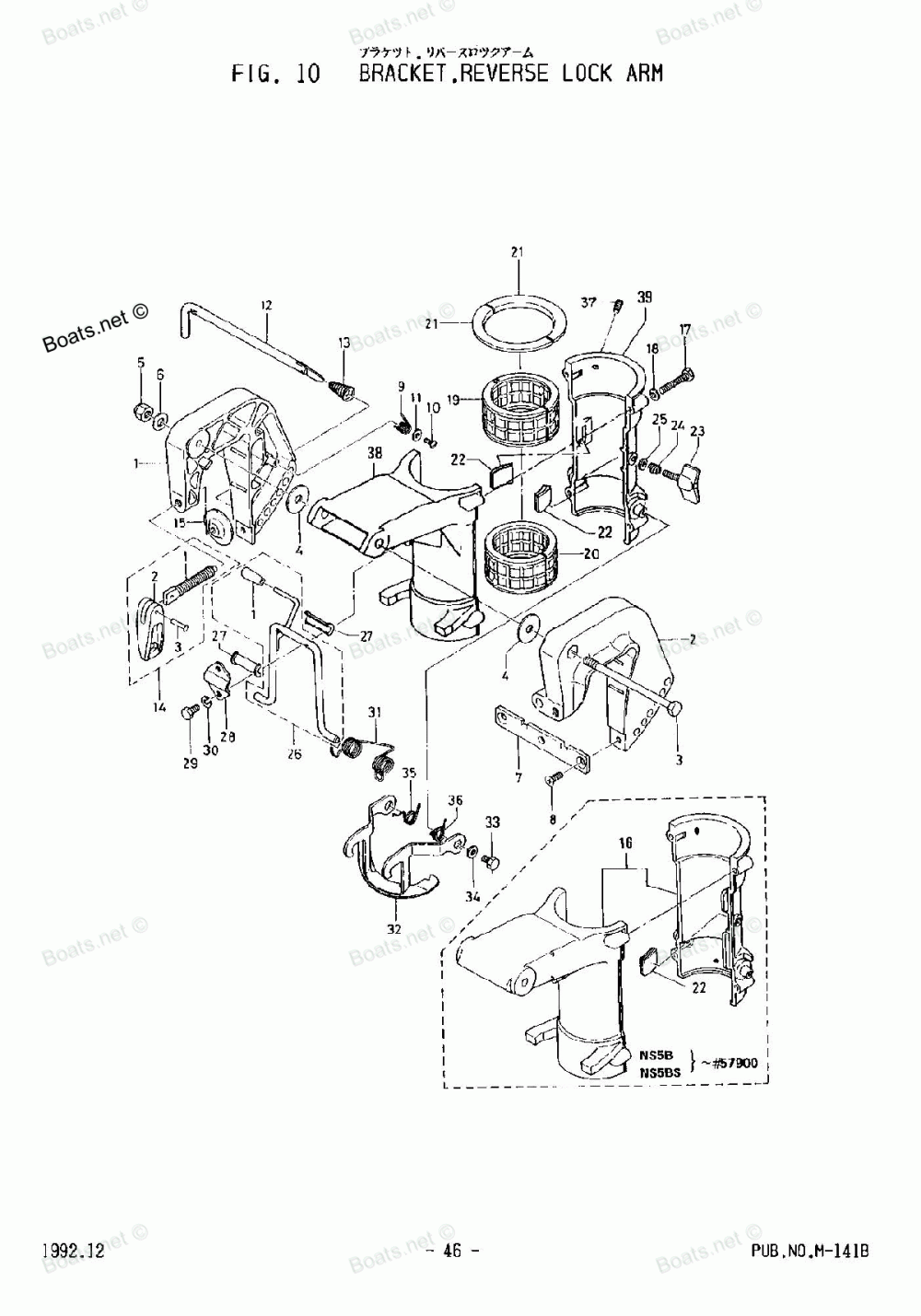

Bracket & Reverse Lock

Tohatsu M5BS
Tohatsu
#oem кодцена
1
369624331M
GRIP, TILT STOPPER
1
369621030M
CLAMP SCREW
1
369621120M
STERN BRACKET RIGHT
1
369S621123
STERN BRACKET RIGHT
2
369S621132
STERN BRACKET LEFT
2
307621020M
HANDLE, CLAMP SCREW
2
N07621020M
HANDLE, CLAMP SCREW
2
369621130M
STERN BRACKET LEFT
3
309621151M
BRACKET BOLT
3
332621040M
PIN, CLAMP SCREW HANDLE
4
307621160M
BRACKET WASHER
5
9304030800
BRACKET NUT (NYLON)
6
940130800M
Шайба
7
369621180M
DISTANCE PLATE, BRACKET
8
921630612M
Винт
9
369621460M
SPRING, STERN BRACKET
10
920730406M
Винт
11
369621470M
WASHER, STERN BRACKET SPRING
12
350621210M
Штанга
13
369621220M
SPRING, THRUST ROD
14
369S621000
CLAMP SCREW ASSY
14
369621000M
CLAMP SCREW ASSY
15
332621010M
PAD, CLAMP SCREW
16
369623200M
SWIVEL BRACKET ASSY
17
9101135635
Болт
18
940130600M
Шайба
19
369624160M
BUSHING UPPER, STEERING
19
369624161M
BUSHING UPPER, STEERING
20
369624170M
BUSHING LOWER, STEERING
20
369624171M
BUSHING LOWER, STEERING
21
369624220M
THRUST PLATE
22
369624410M
FRICTION PLATE, BRACKET
23
309624420M
SCREW, FRICTION PLATE
24
309624460M
Пружина
26
369624310M
TILT STOPPER ASSY
26
393S624312
TILT STOPPER ASSY
27
369624370M
BUSHING, TILT STOPPER
28
369624390M
SET PLATE, TILT STOPPER
29
9101036612
Болт
30
9413030600
Пружинная шайба
31
369624340M
SPRING, TILT STOPPER
32
369663130M
REVERSE LOCK ARM
33
910139614M
Болт
35
369663380M
SPRING R, REVERSE LOCK ARM
36
369663390M
SPRING L, REVERSE LOCK ARM
37
332011230M
GREASE PLUG
38
369623911M
SWIVEL BRACKET A
38
369S623912
SWIVEL BRACKET A
39
369623921M
SWIVEL BRACKET B
39
393S623921
SWIVEL BRACKET B
