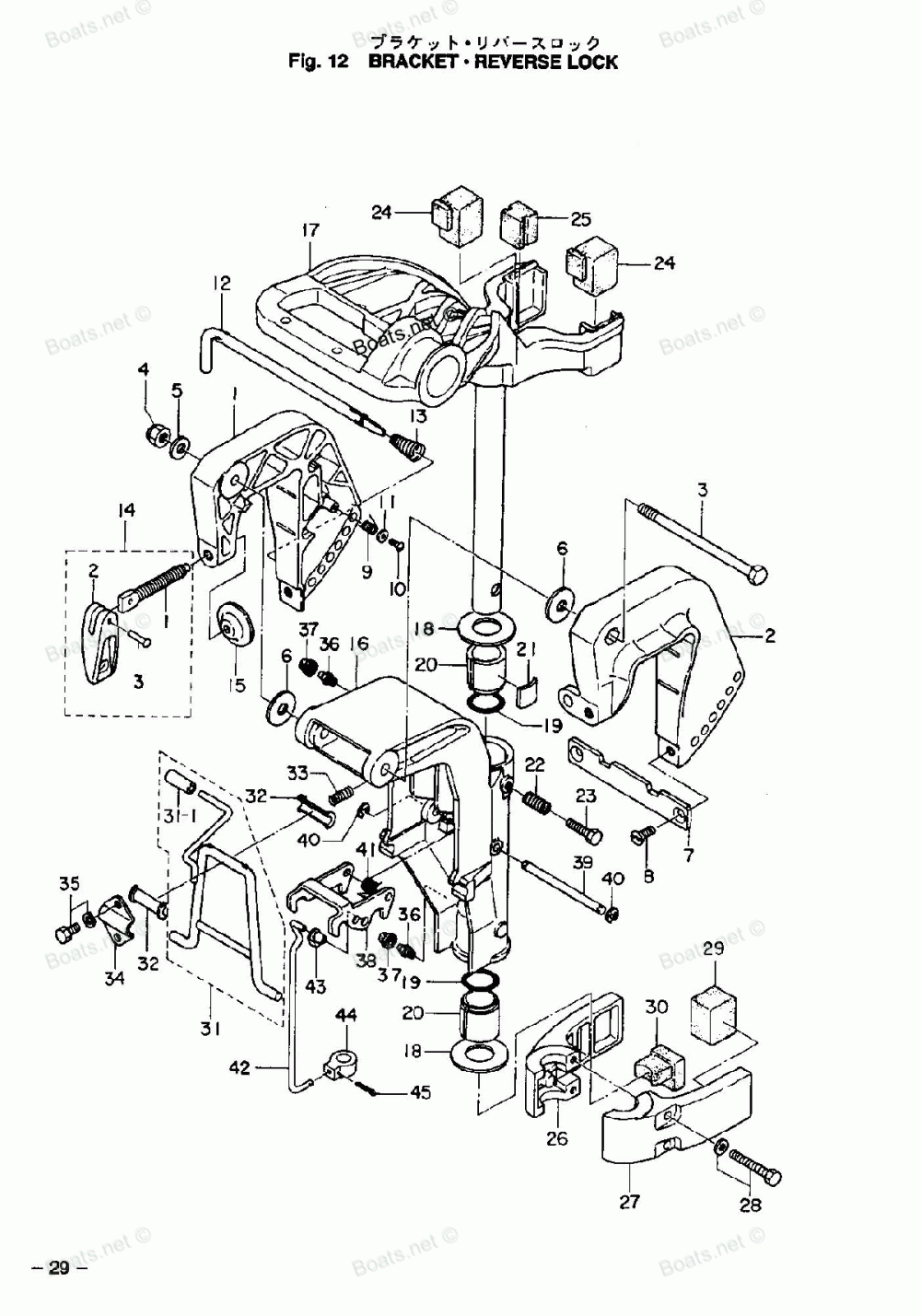

Bracket & Reverse Lock

Tohatsu M6B
Tohatsu
#oem кодцена
1
369S621123
STERN BRACKET R
2
369S621132
STERN BRACKET L
3
309621151M
BOLT, 8 - 122
4
9304460800
NYLON NUT, 8P 1.25
5
9401030800
Шайба
6
307621160M
WASHER, 8.5 - 28 - 1
7
3B2621180M
DISTANCE PLATE, BRACKET
8
9216030612
Винт
9
369621461M
SPRING, STERN BRACKET
10
9207030406
Винт
11
369621470M
WASHER, 4.3 - 12 - 1.5
12
350621210M
Штанга
13
369621221M
SPRING, THRUST ROD
14
369S621001
CLAMP SCREW ASSY
14-1
369621030M
CLAMP SCREW
14-2
307S621021
HANDLE, CLAMP SCREW
14-3
3C8621040M
PIN, 3 - 22
15
332621010M
PAD, CLAMP SCREW
16
3B2S623100
SWIVEL BRACKET
17
3B2S620100
STEERING SHAFT ASSY
18
3B2624220M
THRUST PLATE
19
3B2624150M
O-RING, 4.25 - 19.5
20
3B2624170M
BUSHING, STEERING SHAFT
21
345624410M
FRICTION PLATE
22
346624210M
Пружина
23
9101030830
Болт
24
3B2613010M
MOUNT RUBBER UPPER
25
3B2613370M
Резиновый демпфер
26
3B2S614020
MOUNT BRACKET R
27
3B2S614010
MOUNT BRACKET L
28
9101035640
Болт
29
3B2613020M
MOUNT RUBBER LOWER, SIDE
30
3B2613360M
MOUNT RUBBER LOWER, FRONT
31
3B2S624313
TILT STOPPER ASSY
31-1
369624331M
GRIP, TILT STOPPER
32
393624370M
BUSHING, TILT STOPPER
33
369661121M
COIL SPRING
34
369624390M
SET PLATE, TILT STOPPER
35
9101036612
Болт
36
344671770M
GREASE NIPPLE
37
344671780M
CAP, GREASE NIPPLE
38
3B2663220M
REVERSE LOCK
39
3B2663210M
SHAFT, REVERSE LOCK
40
9453030500
E-RING, D=5
41
3B2663150M
SPRING, REVERSE LOCK
42
3B2663050M
LINK, REVERSE LOCK
43
345052240M
ROD SNAP, 5 - 2.5
44
3B2663020M
JOINT, REVERSE LOCK LINK
45
9515030214
SPLIT PIN, 2 - 14
