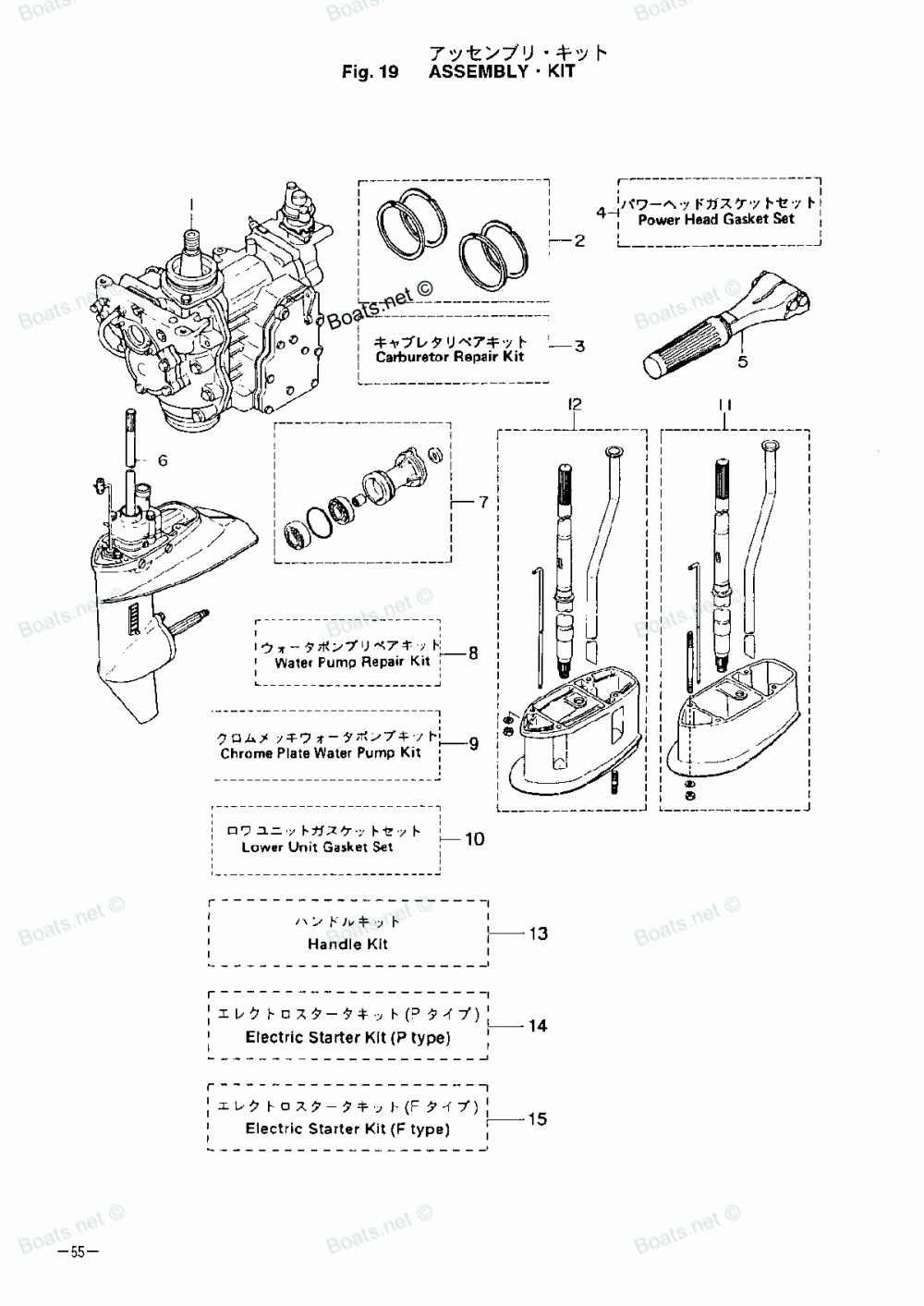

Assembly Kit

Tohatsu M18E
Tohatsu
#oem кодцена
1
3M2B871001
ENGINE SHORT BLOCK
1
3M4B871000
ENGINE SHORT BLOCK
2
351000140M
PISTON RING 2ND (0.5MM O/S)
2
3G2871230M
PISTON RING SET (STANDARD)
2
350871230M
PISTON RING SET (STANDARD)
2
3G2000110M
PISTON RING 1ST (STANDARD)
2
350000110M
PISTON RING (STANDARD)
2
351000110M
PISTON RING 2ND (STANDARD)
2
350871240M
PISTON RING SET (0.5MM O/S)
2
3G2871240M
PISTON RING SET (0.5MM O/S)
2
350000140M
PISTON RING (0.5MM O/S)
2
3G2000140M
PISTON RING 1ST (0.5MM O/S)
3
3C8031250M
Поплавок
3
3C8031210M
Прокладка
3
3G2871220M
CARBURETOR REPAIR KIT
3
9225320412
Винт
3
3C8020110M
Уплотнительное кольцо
3
3C8031930M
Прокладка
3
3C8031690M
Заглушка
3
3C8031820M
Прокладка карбюратора
3
3E3031470M
FLOAT VALVE
3
3C8031260M
ARM PIN, FLOAT
4
351010050M
Прокладка
4
3G4871210M
POWER HEAD GASKET SET
4
350021040M
GASKET A, INLET MANIFOLD
4
346010320M
GASKET, THERMOSTAT
4
350010050M
Прокладка
4
350021051M
GASKET B, INLET MANIFOLD
4
350023050M
OUTER GASKET
4
350610121M
GASKET, DRIVE SHAFT HOUSING
4
350023060M
INNER GASKET
4
350012151M
OIL SEAL, 12.8 - 25 - 7
4
350001210M
OIL SEAL, 25 - 45 - 8
4
350013031M
GASKET, ENGINE BASE
4
338014030M
O-RING, 2 - 55.5
4
3G2871210M
POWER HEAD GASKET SET
4
3G2024140M
GASKET, AIR SILENCER
4
350012155M
OIL SEAL, 25 - 62 - 9.5
5
398S630030
HANDLE ASSEMBLY
6
398S873010
LOWER UNIT ASSEMBLY "S"
6
398S873020
LOWER UNIT ASSEMBLY "L"
7
362S873230
PROPELLER SHAFT HOUSING ASSEMBLY
8
350650111M
LINER, PUMP CASE
8
350650250M
GUIDE PLATE, WATER PUMP
8
9101135652
Болт
8
362873220M
WATER PUMP REPAIR KIT
8
334650210M
Импеллер
8
350650220M
KEY, WATER PUMP IMPELLER
9
362652310M
CHROME PLATED WATER PUMP KIT
9
350650111M
LINER, PUMP CASE
9
350650250M
GUIDE PLATE, WATER PUMP
10
336624150M
O-RING, 3.5 - 36
10
398873210M
LOWER UNIT GASKET SET
10
332660210M
O-RING, 2.4 - 5.8
10
362023120M
Прокладка глушителя
10
332600060M
GASKET, 8.2 - 14 - 1
10
121320710M
O-RING, 2.4 - 59.6
10
346650130M
OIL SEAL, 17 - 30 - 9
10
332602230M
OIL SEAL, 13.8 - 26 - 9.5
11
398S873130
EXTENSION HOUSING KIT "LL"
12
398S873140
EXTENSION HOUSING KIT "UL"
13
353837280M
CABLE PIN
13
350630640M
UNIVERSAL PINION
13
346671650M
GROMMET "B", MOTOR COVER LOWER
13
9301060600
Гайка
13
350630611M
THROTTLE SHAFT "B"
13
353671620M
GROMMET, BATTERY CABLE
13
346052340M
ROD JOINT, 5
13
9453030600
E-RING, D=6
13
353837190M
WASHER, 8.5 - 18 - 1.6
13
350630630M
SUPPORTER, THROTTLE SHAFT
13
398S630001
HANDLE KIT
13
9516030800
R-PIN, D=8
13
9101037630
Болт
13
346632011M
Болт
13
345052240M
ROD SNAP, 5 - 2.5
13
345662260M
GROMMET, THROTTLE SHAFT
13
345632070M
COLLAR, 9.8 - 12 - 7.5
13
398637170M
LINK ROD, 5 - 65L
14
9215030525
Винт
14
9215036408
Винт
14
9161030830
Болт
14
309069720M
CLAMP, 6.5 - 47.5P
14
9413030500
Пружинная шайба
14
3G2760571M
HOOK, CHOKE SOLENOID
14
9413030800
Пружинная шайба
14
353843980M
BAND, LEAD WIRE
14
3B2761200M
BATTERY CORD
14
9514030312
SPRING PIN, 3 - 12
14
346760400M
STARTER SOLENOID
14
398760490M
LEAD WIRE (BLUE)
14
3G2761002M
ELECTRIC STARTER KIT (P TYPE)
14
3B2760620M
FUSE WIRE
14
3C7032710M
O-RING, 1.5 - 2.5
14
9101036618
Болт
14
3G2760551M
BRACKET, CHOKE SOLENOID
14
3G2060911M
FLYWHEEL CUP (WITH RING GEAR)
14
3B2761471M
STARTER CORD
14
9101030612
Болт
14
398069720M
CLAMP, 6.5 - 67P
14
9215036512
Винт
14
350760100M
Стартер электрический
14
3A3761450M
CAP, CORD
14
3G2761420M
GROUND CABLE
14
3G2760600M
Регулятор напряжения
14
361760500M
CHOKE SOLENOID
14
350760110M
BRACKET, STARTER MOTOR
14
3B7761450M
CAP, CORD
15
361760260M
MAIN SWITCH
15
350760810M
BRACKET, NEUTRAL SWITCH
15
9215036612
Винт
15
398760800M
NEUTRAL SWITCH
15
398760830M
ACTUATOR, NEUTRAL SWITCH
15
3M4760840M
SPACER, NEUTRAL SWITCH
15
3B7637310M
WASHER, 12.5 - 24 - 1
15
3G2764001M
ELECTRIC STARTER KIT (F TYPE)
