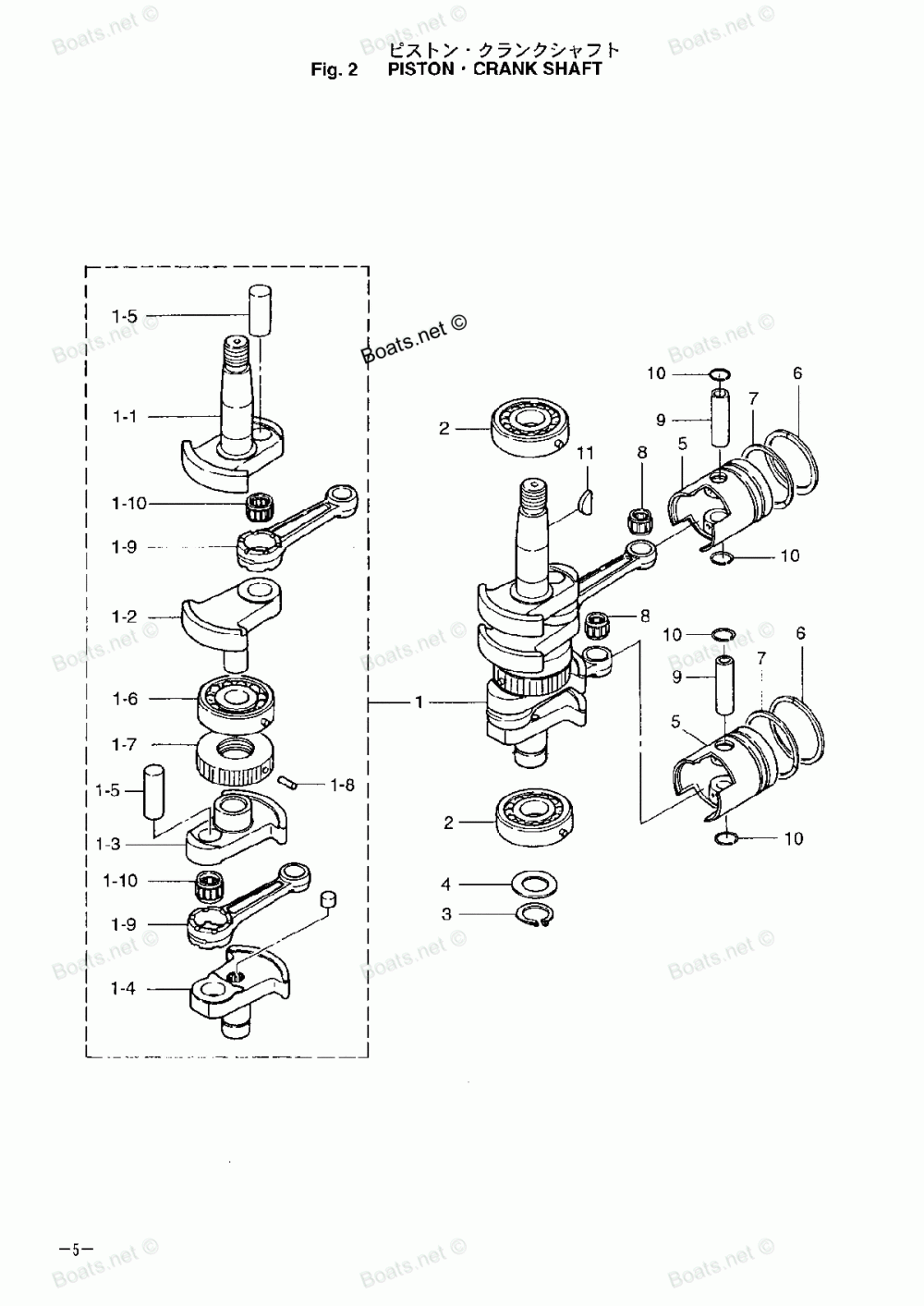

Поршни и коленчатый вал

Tohatsu M18E
Tohatsu
#oem кодцена
1
350000300M
CRANK SHAFT
1-1
350000310M
CRANK SHAFT "A"
1-2
350000320M
CRANK SHAFT "B"
1-3
350000330M
CRANK SHAFT "C"
1-4
350000341M
CRANK SHAFT "D"
1-5
350000610M
CRANK PIN
1-6
960336305M
BALL BEARING, 6305
1-7
350000511M
LABYRINTH PACKING
1-8
9514070308
SPRING PIN, 3-8
1-9
350000400M
Шатун
1-10
3G4000430M
NEEDLE BEARING, 20 - 26 - 16
3
9451022500
Зажим
4
346001160M
SPACER, 25.2 - 34 - 1.6
5
350000011M
PISTON (STANDARD)
5
350000041M
PISTON (0.5MM O/S)
5
351000011M
PISTON (STANDARD)
5
351000041M
PISTON (0.5MM O/S)
6
3G2000140M
PISTON RING 1ST (0.5MM O/S)
6
350000110M
PISTON RING 1ST & 2ND (STANDARD)
6
350000140M
PISTON RING 1ST & 2ND (0.5MM O/S)
6
3G2000110M
PISTON RING 1ST (STANDARD)
7
351000110M
PISTON RING 2ND (STANDARD)
7
351000140M
PISTON RING 2ND (0.5MM O/S)
8
350000420M
NEEDLE BEARING, 14 - 18 - 20
9
332000210M
Палец поршневой
9
350000210M
Палец поршневой
10
350000241M
CLIP, PISTON PIN
11
334001310M
KEY, MAGNETO
