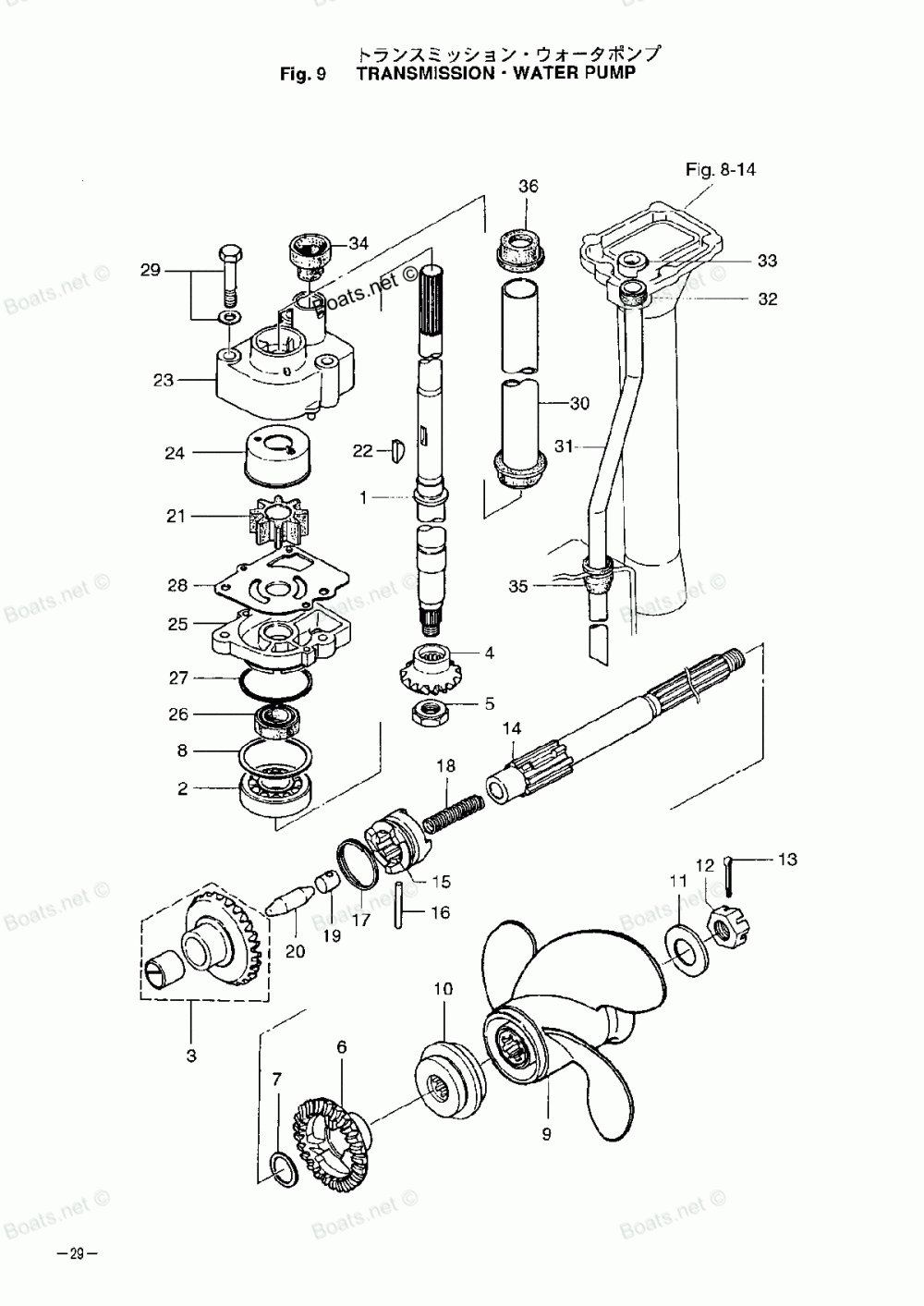

Трансмиссия-Водяной насос

Tohatsu M9.9D
Tohatsu
#oem кодцена
1
350643040M
DRIVE SHAFT "LL"
1
350643010M
Вертикальный вал "S"
1
350643020M
Вертикальный вал "L"
1
350643030M
DRIVE SHAFT "UL"
2
960106302M
BALL BEARING, 6302
3
350640100M
BEVEL GEAR "A"
4
350640200M
BEVEL GEAR "B"
5
346640271M
NUT, BEVEL GEAR "B"
6
362640300M
BEVEL GEAR "C"
7
350640320M
WASHER, 17 - 22 - 1.5
8
346640810M
SHIM, 35 - 41.9 - 0.1
8
346640820M
SHIM, 35 - 41.9 - 0.15
8
346640830M
SHIM, 35 - 41.9 - 0.3
8
346640840M
SHIM, 35 - 41.9 - 0.5
9
362641030M
PROPELLER (8), 3 X 9.2 X 7.8
9
362641020M
PROPELLER (8.5), 3 X 9.2 X 8.4
9
362641010M
PROPELLER (8), 3 X 9.2 X 9.1
9
362641080M
PROPELLER (10), 3 X 9.2 X 9.8
9
362641070M
PROPELLER (6), 3 X 9.2 X 6.1
9
362641050M
PROPELLER (7), 3 X 9.2 X 6.6
10
362642310M
THRUST HOLDER, PROPELLER
11
346641245M
WASHER, 12.5 - 32 - 2.5
12
346641215M
NUT, PROPELLER
13
9515030322
SPLIT PIN, 2 - 22
14
362642110M
Вал гребного винта
15
362642150M
Муфта сцепления
16
350642180M
Палец
17
350642190M
SNAP, CLUTCH PIN
18
332642210M
Пружина
19
350642220M
SPRING HOLDER, CLUTCH
20
350642231M
PUSH ROD, CLUTCH
21
334650210M
Импеллер
22
350650220M
KEY, WATER PUMP IMPELLER
23
350650161M
PUMP CASE UPPER
24
350650111M
LINER, PUMP CASE
25
350650170M
PUMP CASE LOWER
26
332602230M
OIL SEAL, 13.8 - 26 - 9.5
27
336624150M
O-RING, 3.5 - 36
28
350650250M
GUIDE PLATE, WATER PUMP
29
9101135652
Болт
30
350643220M
GUARD PIPE, DRIVE SHAFT
31
350651100M
WATER PIPE "L"
31
350651200M
WATER PIPE "UL"
31
350651300M
WATER PIPE "LL"
31
350651000M
WATER PIPE "S"
32
350652060M
SEAL RUBBER UPPER, WATER PIPE
33
350652050M
STOPPER, WATER PIPE
34
350650140M
SEAL RUBBER LOWER, WATER PIPE
35
350652040M
GUIDE RUBBER, WATER PIPE
36
350643260M
GROMMET UPPER, DRIVE SHAFT
