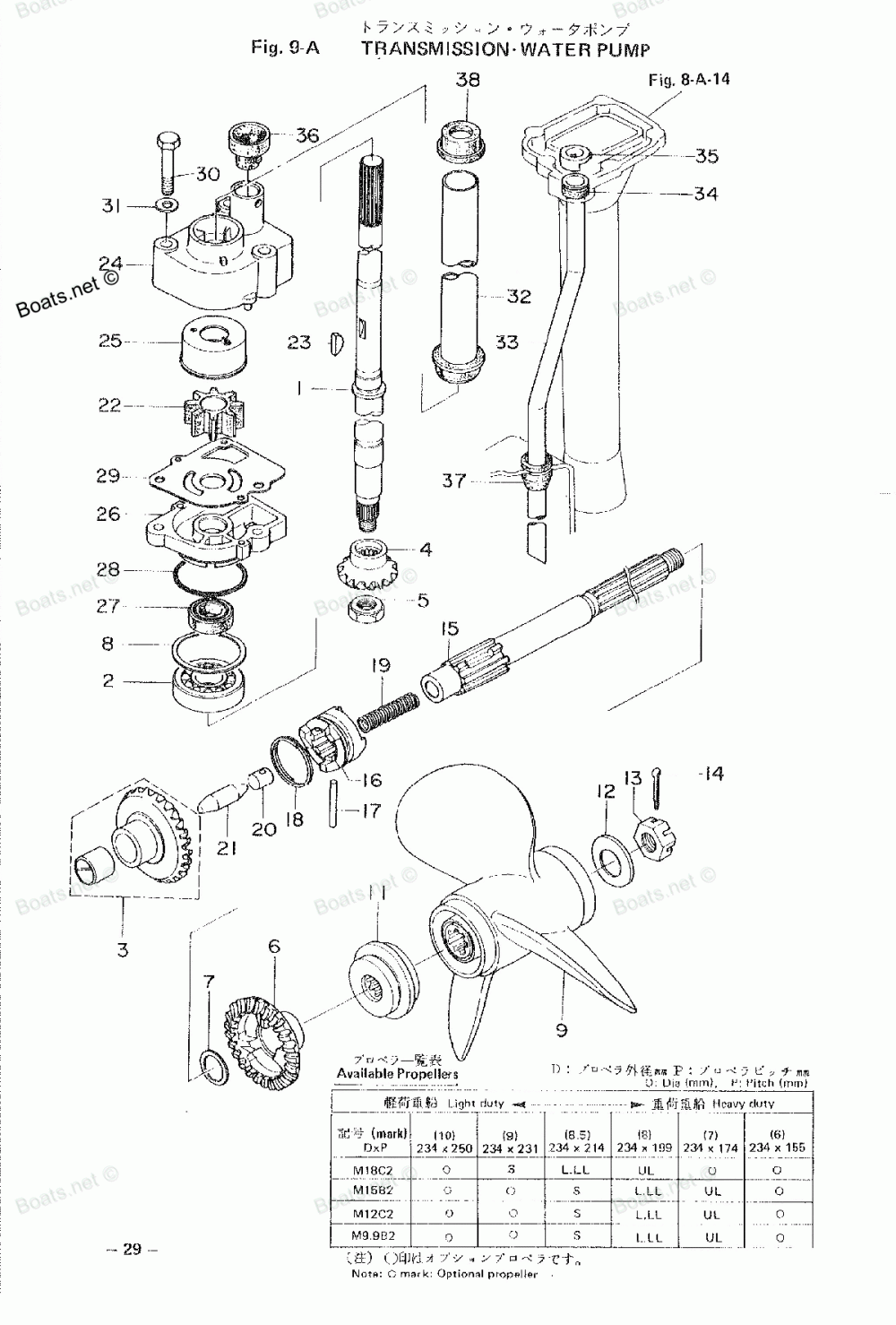

Transmission Water Pump

Tohatsu M15B2
Tohatsu
#oem кодцена
1
350643010M
DRIVE SHAFT S
1
350643020M
DRIVE SHAFT L
1
350643030M
DRIVE SHAFT UL
1
350643040M
DRIVE SHAFT LL
2
960106302M
BEARING B, DRIVE SHAFT
3
350640100M
BEVEL GEAR A (W/BUSHING)
4
350640200M
BEVEL GEAR B
5
346640271M
NUT, BEVEL GEAR B
6
362640300M
BEVEL GEAR C
7
350640320M
WASHER, BEVEL GEAR C
8
346640230M
SHIM, BACKLASH ADJUST
9
362641020M
PROPELLER 8.5
9
362641030M
PROPELLER 8
9
362641050M
PROPELLER 7
9
362641080M
PROPELLER 10
9
362641070M
PROPELLER 6
9
362641010M
PROPELLER 9
11
362642310M
Упорный держатель
12
346641245M
WASHER. PROPELLER
13
346641215M
NUTS PROPELLER
14
951532522M
SPLIT PIN
15
362642110M
Вал гребного винта
16
362642150M
Муфта сцепления
17
350642180M
Палец
18
350642190M
SNAP, .CLUTCH PIN
19
332642210M
Пружинка
20
350642220M
SPRING HOLDER, CLUTCH
21
350642231M
PUSH ROD, CLUTCH
22
334650210M
Импеллер
23
350650220M
KEY, PUMP IMPELLER
24
350650161M
PUMP CASE
25
350650111M
LINER, PUMP CASE
26
350650170M
PUMP CASE LOWER
27
332602230M
OIL SEAL, PUMP CASE LOWER
28
336624150M
O-RING PUMP CASE LOWER
29
350650250M
GUIDE PLATE, WATER PUMP
30
9101035652
Болт
31
940130600M
Шайба
32
350643220M
GUARD PIPE, DRIVE SHAFT
33
350651000M
WATER PIPE S
33
350651100M
WATER PIPE L
33
350651200M
WATER PIPE UL
33
350651300M
WATER PIPE LL
34
350652060M
SEAL RUBBER UPPER, WATER PUMP
35
350652050M
STOPPER, WATER PIPE
36
350650140M
SEAL RUBBER LOWER, WATER PUMP
37
350652040M
GUIDE RUBBER, WATER PIPE
38
350643260M
GROMMET UPPER, DRIVE SHAFT
