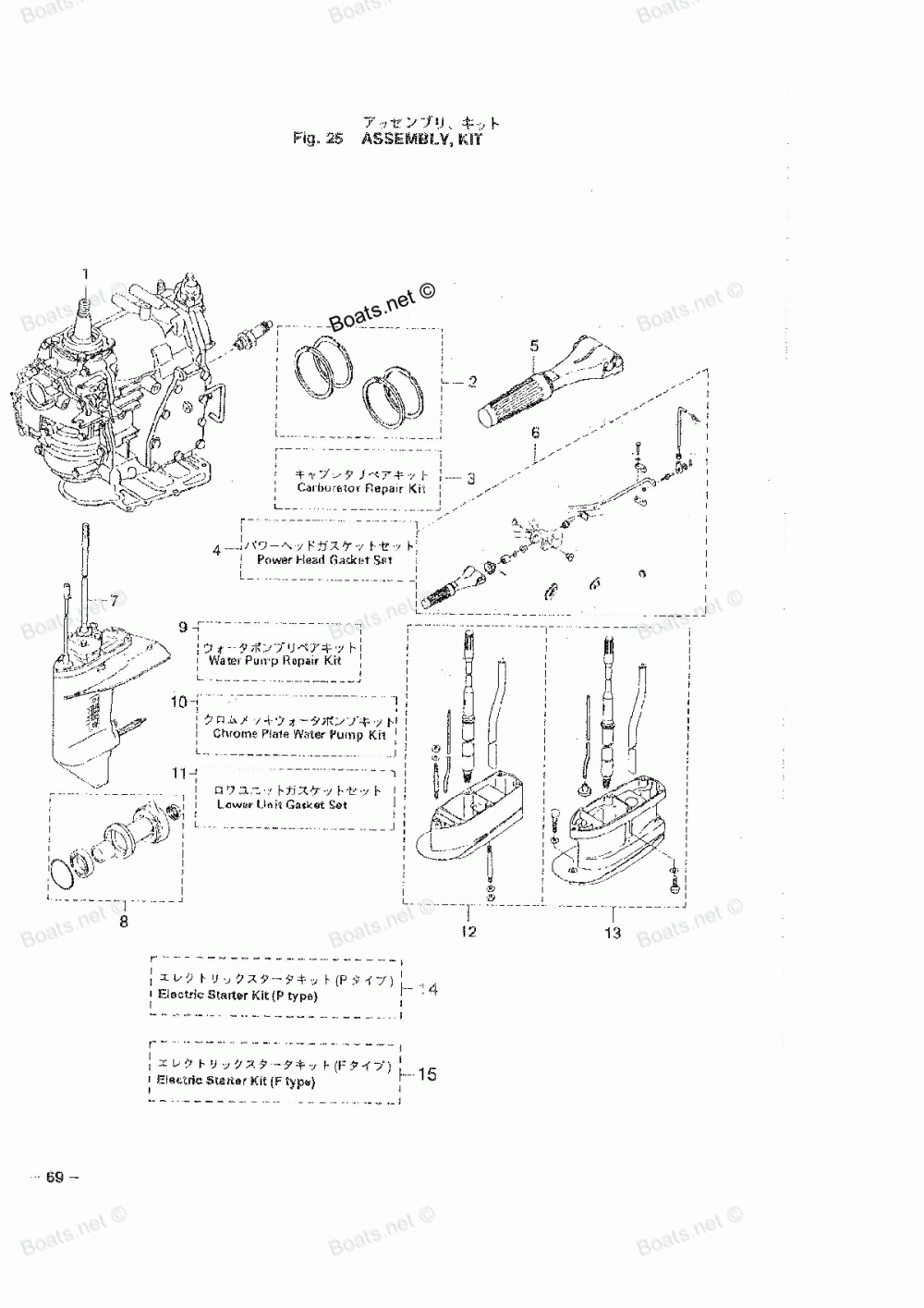

Assembly Kit

Tohatsu M25C2

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING SET (STD)

PISTON RING SET (STD)

2

PISTON RING SET (STD)

PISTON RING SET (STD)

2

PISTON RING SET (0.5 O/S)

PISTON RING SET (0.5 O/S)

2

PISTON RING (0.5 O/S)

PISTON RING (0.5 O/S)

3

VALVE PIN

VALVE PIN

3

Прокладка карбюратора

Прокладка карбюратора

3

Зажим

Зажим

3

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

3

RUBBER CAP

RUBBER CAP

3

O-RING, FLOAT CHAMBER

O-RING, FLOAT CHAMBER

3

STOP SCREW

STOP SCREW

3

Поплавок

Поплавок

3

ADJUST SCREW

ADJUST SCREW

3

ARM PIN, FLOAT

ARM PIN, FLOAT

3

Уплотнительное кольцо

Уплотнительное кольцо

3

FLOAT VALVE

FLOAT VALVE

3

CARBURETOR REPAIR KIT

CARBURETOR REPAIR KIT

4

POWER HEAD GASKET SET

POWER HEAD GASKET SET

4

Прокладка

Прокладка

4

Прокладка

Прокладка

4

GASKET A

GASKET A

4

GASKET, THERMOSTAT

GASKET, THERMOSTAT

4

O-RING, 2.5 - 4.5

O-RING, 2.5 - 4.5

4

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

4

GASKET, ENGINE BASE

GASKET, ENGINE BASE

4

OIL SEAL, 24 - 40 - 8

OIL SEAL, 24 - 40 - 8

4

O-RING, 2 - 55.5

O-RING, 2 - 55.5

4

OIL SEAL, 16 - 28 - 6

OIL SEAL, 16 - 28 - 6

5

HANDLE ASSY

HANDLE ASSY

6

HANDLE KIT

HANDLE KIT

7

LOWER UNIT ASSY S

LOWER UNIT ASSY S

7

LOWER UNIT ASSY L

LOWER UNIT ASSY L

8

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

9

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

9

GASKET, PUMP GUIDE PLATE

GASKET, PUMP GUIDE PLATE

9

GASKET, PUMP CASE UPPER

GASKET, PUMP CASE UPPER

9

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

9

Болт

Болт

9

KEY, PUMP IMPELLER

KEY, PUMP IMPELLER

9

Импеллер

Импеллер

9

LINER, PUMP CASE

LINER, PUMP CASE

10

LINER, CHROME PLATED PUMP CASE

LINER, CHROME PLATED PUMP CASE

10

GUIDE PLATE, CHROME PLATED WATER PUMP

GUIDE PLATE, CHROME PLATED WATER PUMP

10

CHROME PLATED WATER PUMP KIT

CHROME PLATED WATER PUMP KIT

10

Импеллер

Импеллер

11

OIL SEAL, 17 - 30 - 9

OIL SEAL, 17 - 30 - 9

11

O-RING, 3.5 - 36

O-RING, 3.5 - 36

11

O-RING, 2.4 - 5.8

O-RING, 2.4 - 5.8

11

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

11

O-RING, 3.5 - 21.7

O-RING, 3.5 - 21.7

11

GASKET, WATER PLUG

GASKET, WATER PLUG

11

O-RING, 3 - 62.5

O-RING, 3 - 62.5

11

OIL SEAL, 18 - 28 - 8

OIL SEAL, 18 - 28 - 8

12

EXTENSION HOUSING KIT LL

EXTENSION HOUSING KIT LL

13

EXTENSION HOUSING KIT UL

EXTENSION HOUSING KIT UL
