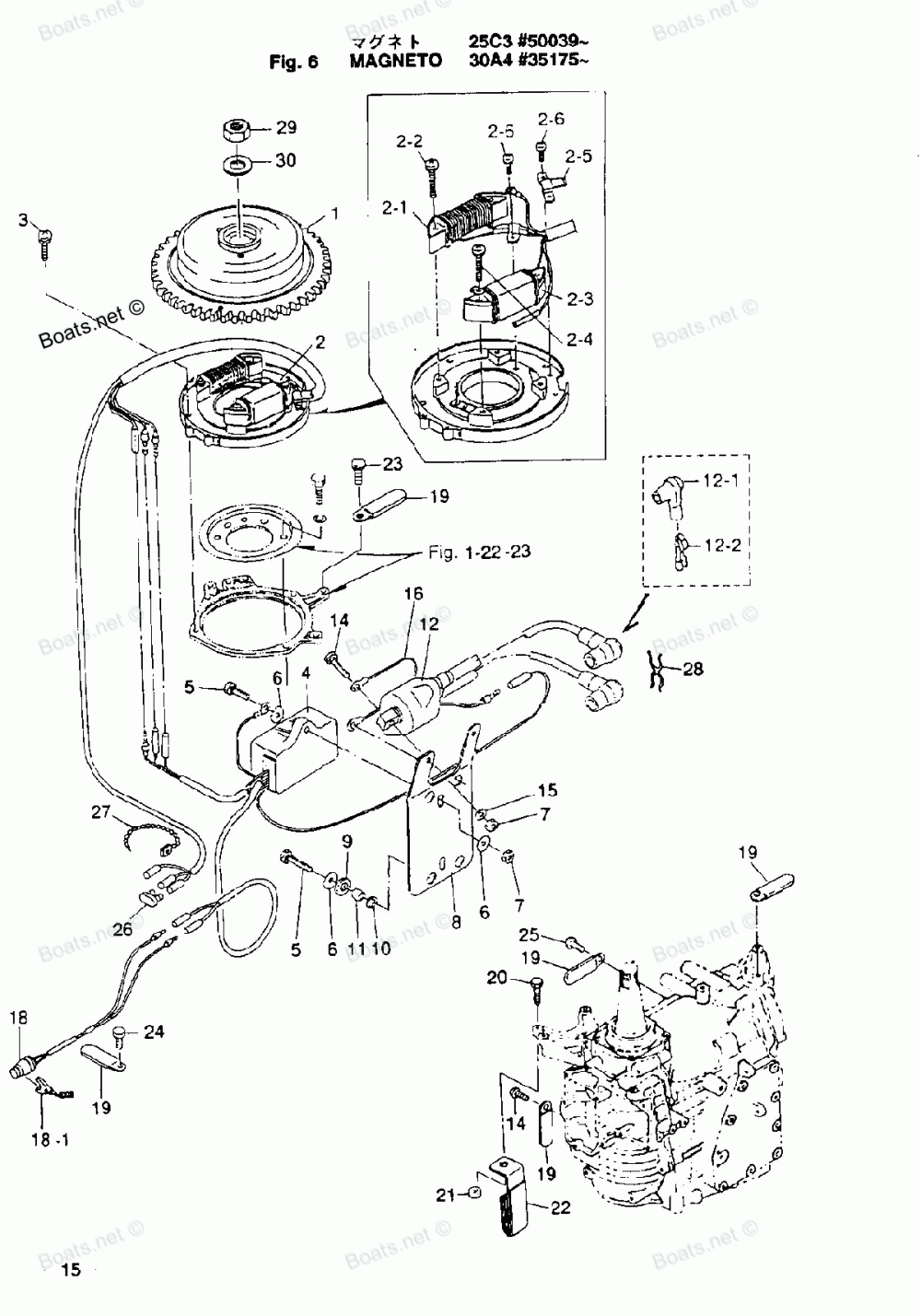

ГЕНЕРАТОР

Tohatsu M30A4
Tohatsu
#oem кодцена
1
3P0060910M
FLYWHEEL CUP
2
3P0060020M
COIL PLATE ASSEMBLY
2-1
3P0060230M
ALTERNATOR
2-2
9215216528
Винт
2-3
3G2060210M
EXCITER COIL
2-4
9215216522
Винт
2-5
350060250M
HOLDER, MAGNETO CORD
2-6
9215216406
Винт
3
9215216510
Винт
4
3P0060600M
C.D. UNIT
5
9101036625
Болт
6
3C8663080M
WASHER, 6 - 16 - 1.5
7
9301030600
Гайка
8
3A0063220M
PLATE, ELECTRIC
9
3B7063050M
MOUNT RUBBER, 9 - 16 - 4.3
10
3F3069200M
MOUNT RUBBER, 8.5 - 12 - 2
11
3A0760790M
COLLAR, 6.2 - 9 - 7.5
12
3A0060500M
IGNITION COIL ASSEMBLY
12
3A0060401M
IGNITION COIL ASSEMBLY (WITH RESISTANCE CAP)
12-1
3M2069210M
PLUG CAP
12-1
3C7069210M
PLUG CAP (RESISTANCE)
12-2
3M2069260M
TERMINAL, PLUG CAP
14
9101035620
Болт
15
9413030600
Пружинная шайба
16
3B7761420M
GROUND CORD (AV2)
18
398068300M
LANYARD STOP SWITCH
18-1
353068210M
ROCK, LANYARD STOP SWITCH
19
309069720M
CLAMP, 6.5 - 47.5P
20
9101140825
Болт
21
9301060800
Гайка
22
345069171M
CLAMP, 9 - 20U
23
9225036510
Винт
24
9101210612
Болт
25
9215210610
Винт
26
353760370M
PLUG, CABLE TERMINAL
27
336760910M
BAND, LEAD WIRE
28
346069160M
CLIP, HIGH TENSION CORD
29
334001320M
NUT, 16P1.5L
30
334001330M
WASHER, 17 -30 - 1.6
