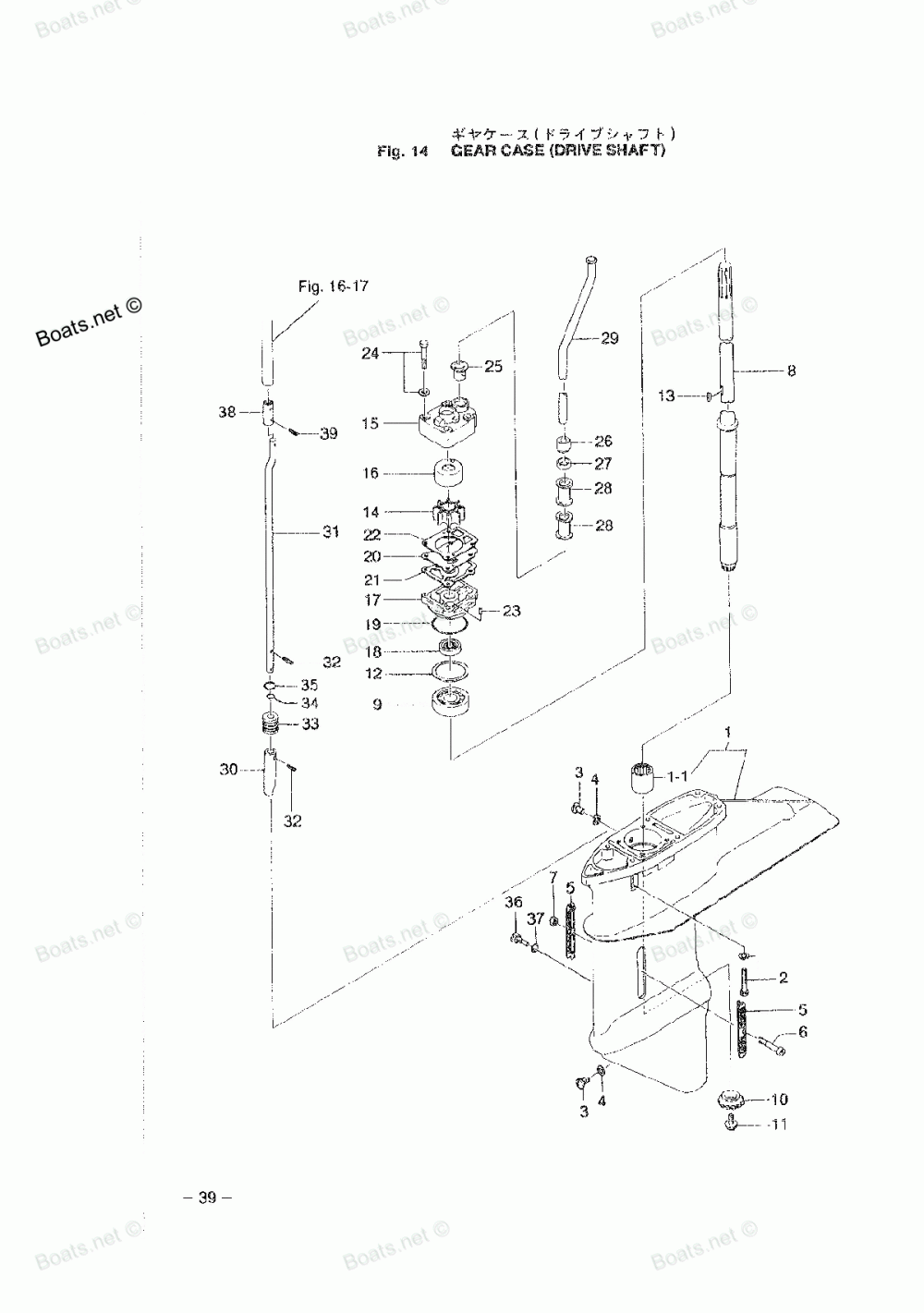

Корпус редуктора (вертикальный вал)

Tohatsu M40C
Tohatsu
#oem кодцена
1
361S600000
GEAR CASE ASSEMBLY
1-1
345602110M
NEEDLE BEARING, 22 - 30 - 30
2
9101035640
Болт
3
332600051M
OIL PLUG
4
332600060M
GASKET, 8.1 - 15 - 1
5
345602060M
Водяная фильтрующая сетка
6
9215030440
Винт
7
9304060400
NYLON NUT, 4P0.7
8
345643010M
DRIVE SHAFT S
8
345643020M
DRIVE SHAFT L
8
345643040M
DRIVE SHAFT LL
8
345643030M
DRIVE SHAFT LL
9
345602130M
BEARING, 32304
10
345640201M
BEVEL GEAR B
11
345640250M
BOLT, BEVEL GEAR B
12
345640810M
SHIM, 41 - 51.5 - 0.1
12
345640840M
SHIM, 41 -51.5-0.5
13
332650220M
KEY, WATER PUMP IMPELLER
14
345650210M
Импеллер
15
348650161M
PUMP CASE UPPER
16
348650110M
LINER, PUMP CASE
17
348650171M
PUMP CASE LOWER
18
332601110M
OIL SEAL, 17 - 33 - 9.5
19
345650150M
O-RING, 3.2 - 47
20
348650250M
GUIDE PLATE, WATER PUMP
21
348650291M
GASKET, PUMP GUIDE PLATE
22
348650180M
Прокладка
23
334650120M
PIN, 4-10
24
9101035652
Болт
25
3B7650140M
SEAL RUBBER LOWER, WATER PIPE
27
345652050M
SET RING, SEAL RUBBER
28
346652040M
LOCK RUBBER, WATER PIPE
28
345652040M
LOCK RUBBER, WATER PIPE
29
345651001M
WATER PIPE S
29
345651101M
WATER PIPE L
29
345651301M
WATER PIPE LL
29
345651201M
WATER PIPE UL
30
348660110M
Кулачковый толкатель
31
348660130M
CAM ROD L
31
348660150M
CAM ROD LL
31
348660140M
CAM ROD UL
31
348660120M
CAM ROD S
32
9514030316
SPRING PIN, 3 - 16
33
345660311M
BUSHING, CAM ROD
34
345660210M
O-RING, 1.9 - 6.8
35
332660320M
O-RING, 2.4 - 15.4
36
301660240M
STOPPER, CAM ROD BUSHING
37
301660250M
GASKET, 6.2 - 11 - 1
38
345662410M
JOINT, SHIFT ROD
39
9514030312
SPRING PIN, 3 - 12
