Throttle Mechanism Каталог оригинальных запчастей для лодочных моторов Tohatsu M40C (2002 и предыдущие)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

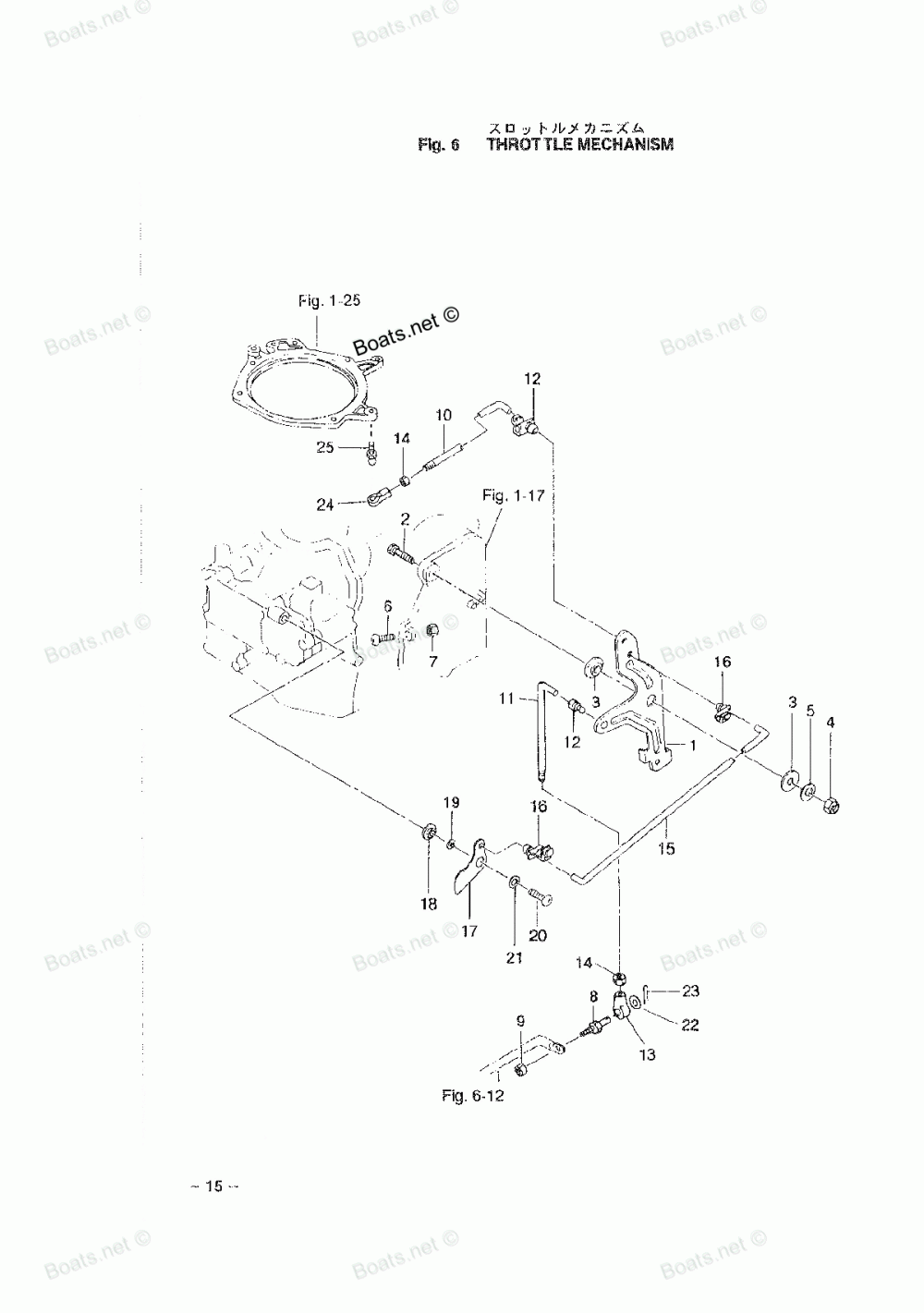

Throttle Mechanism

Tohatsu M40C

Throttle Mechanism

#

oem код

название

цена

00

Болт

Болт

00

D3.5ROD SNAP

D3.5ROD SNAP

00

Гайка

Гайка

00

ROD JOINT

ROD JOINT

00

BUSHONG, ADVANCER ARM

BUSHONG, ADVANCER ARM

00

THROTTLE CAM

THROTTLE CAM

00

ADVANCER LINK ROD

ADVANCER LINK ROD

00

CABLE PIN

CABLE PIN

00

M8 NYLON NUT

M8 NYLON NUT

00

Втулка

Втулка

00

HANDLE LINK ROD

HANDLE LINK ROD

00

WASHER 8.5-18-1.6

WASHER 8.5-18-1.6

00

Шайба

Шайба

00

Упругая Шайба

Упругая Шайба

00

D5ROD SNAP

D5ROD SNAP

00

R PIN

R PIN

00

STOPPER A, ADVANCER ARM

STOPPER A, ADVANCER ARM

00

SCREW, THROTTLE CAM

SCREW, THROTTLE CAM

00

ADVANCER ARM

ADVANCER ARM

00

CAP, BALL JOINT

CAP, BALL JOINT

00

Гайка

Гайка

00

WASHER, THROTTLE CAM

WASHER, THROTTLE CAM

00

ADVANCER ARM

ADVANCER ARM

00

THROTTLE LINK ROD

THROTTLE LINK ROD

00

Шаровая опора

Шаровая опора

00

LINK ROD 5-80L

LINK ROD 5-80L

1

ADVANCER ARM

ADVANCER ARM

2

Болт

Болт

3

BUSHING, 8-14-4

BUSHING, 8-14-4

4

NYLON NUT, 8P1.25

NYLON NUT, 8P1.25

5

WASHER, 8.1-16-1.5

WASHER, 8.1-16-1.5

6

Винт

Винт

7

Гайка

Гайка

8

CABLE PIN

CABLE PIN

9

Гайка

Гайка

10

ADVANCER LINK ROD

ADVANCER LINK ROD

11

LINK ROD, 5-80L

LINK ROD, 5-80L

12

ROD SNAP, 5-2.5

ROD SNAP, 5-2.5

13

ROD JOINT

ROD JOINT

15

THROTTLE LINK ROD

THROTTLE LINK ROD

16

ROD SNAP, 3.5-2

ROD SNAP, 3.5-2

17

THROTTLE CAM

THROTTLE CAM

18

BUSHING, 6.2-16-5

BUSHING, 6.2-16-5

19

WAVE WASHER, 10

WAVE WASHER, 10

20

Винт

Винт

21

Шайба, 6х16х1.5

Шайба, 6х16х1.5

22

WASHER, 8.5-18-1.6

WASHER, 8.5-18-1.6

23

R PIN

R PIN

24

CAP C, BALL JOINT

CAP C, BALL JOINT

25

BALL JOINT B

BALL JOINT B
