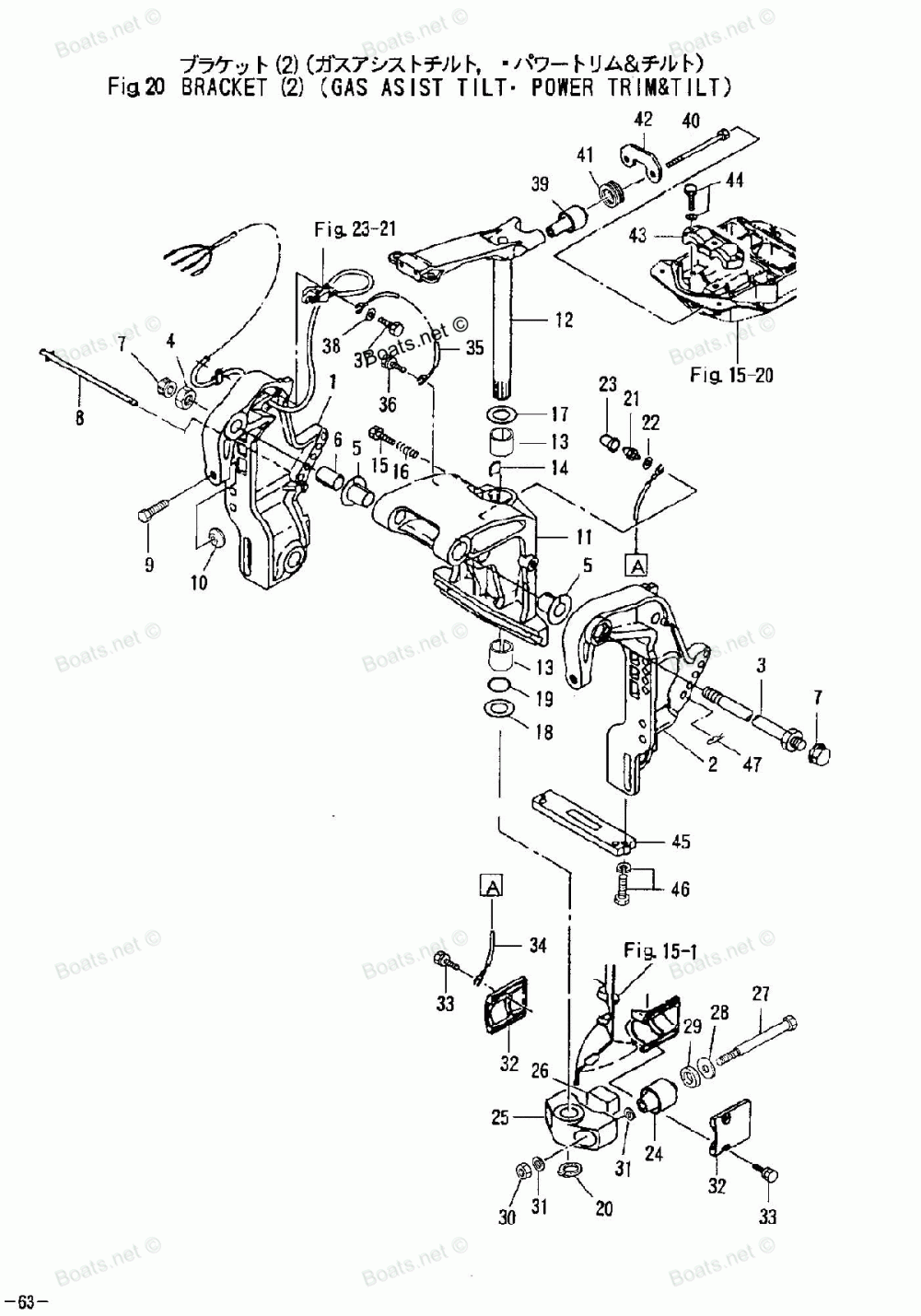

Bracket (2) (gas Asist Tilt, Power Trim & Tilt)

Tohatsu M40D2
Tohatsu
#oem кодцена
1
3C8S772110
STERN BRACKET R
2
3C8S772120
STERN BRACKET L
4
346621240M
NYLON NUT, 7/8
5
3C8772130M
BUSHING, BRACKET BOLT
6
3C8621320M
BUSHING, 22-25-35.3
7
346621270M
Крышка
8
3C8771180M
Штанга
9
3C8772140M
CLAMP SCREW
10
332621010M
PAD, CLAMP SCREW
11
3C8S772151
SWIVEL BRACKET, POWER TRIM & TILT
13
345624170M
BUSHING, 26-32
14
345624410M
FRICTION PLATE
15
9101030840
Болт
16
346624210M
Пружина
17
3C8624230M
UPPER THRUST PLATE
18
346624240M
LOWER THRUST PLATE
19
345624150M
O-RING, 3.5-25.7
20
9451032500
C-RING, D=25
21
344671770M
GEASE NIPPLE
22
9401030600
Шайба
23
344671780M
CAP, GREASE NIPPLE
24
3C8613020M
LOWER MOUNT RUBBER
25
3C8S614112
MOUNT BRACKET
26
3C8613360M
Резиновый демпфер
27
3C8613210M
BOLT, LOWER MOUNT RUBBER
28
353613340M
WASHER, 13-34-3
29
3C7613380M
DAMPER RUBBER, 21-34-5
30
9304031200
NYLON NUT, 12 P1.75
31
9402031200
Шайба
32
3C8S613420
CAP, LOWER MOUNT RUBBER
33
9101035620
Болт
34
3C8623960M
GROUND WIRE
35
3C8621580M
GROUND WIRE
36
9101035612
Болт
37
9101030620
Болт
38
3C8663080M
Шайба, 6х16х1.5
39
3E3613011M
UPPER MOUNT RUBBER
40
353613070M
BOLT, UPPER MOUNT RUBBER
41
3E3613330M
UPPER DAMPER RUBBER
42
3E3613350M
UPPER LOCKING PLATE
43
3C8S613410
CAP, UPPER MOUNT RUBBER
44
6101036835
Болт
45
3C7602181M
ANODE, STERN BRACKET
46
9101036630
Болт
47
9516031000
R-PIN, D=10
