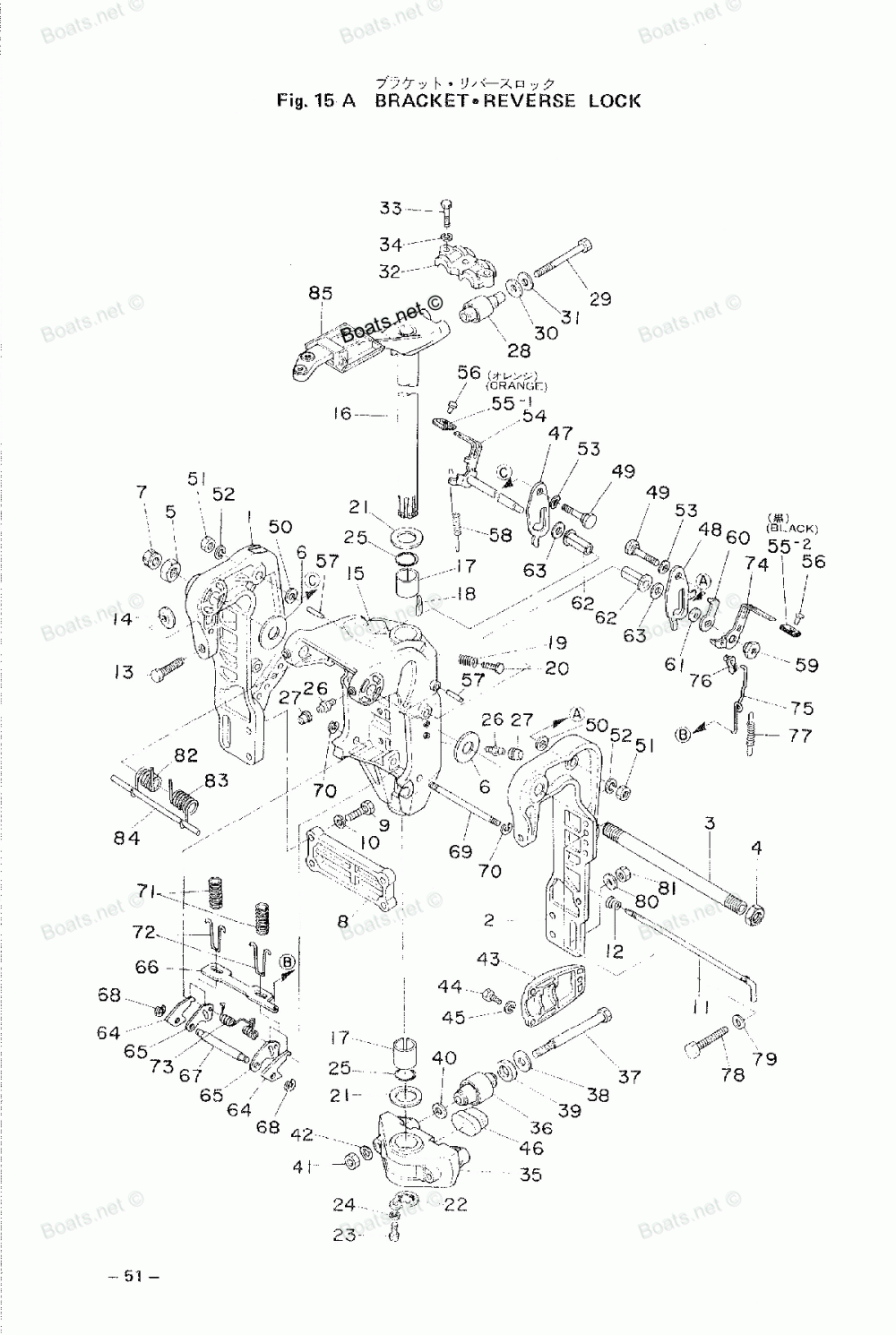

Bracket & Reverse Lock

Tohatsu M50C
Tohatsu
#oem кодцена
00
353621141M
PLATE, STERN BRACKET
00
353613211M
BOLT LOWER, MOUNT RUBBER
00
353663140M
PIN, REVERSE LOCK
00
353621420M
SPRING L, TILT ASSISTANT
00
345624410M
FRICTION PLATE, BRACKET
00
353624520M
BOLT, TILT STOPPER
00
353613350M
Шайба
00
334613150M
Шайба
00
353623101M
SWIVEL BRACKET
00
353613220M
WASHER, MOUNT RUBBER
00
353624150M
O-RING, BRACKET SHAFT
00
910130835M
BOLT, STERN BRACKET
00
353613212M
BOLT LOWER, MOUNT RUBBER
00
945330400M
E-RING, REVERSE LOCK PIN
00
353621430M
SHAFT, TILT ASSISTANT
00
346624210M
Пружина
00
940131200M
Шайба
00
353621150M
BRACKET BOLT
00
353613410M
CAP UPPER, MOUNT RUBBER
00
353621350M
BUSHING PIVOT BOLT
00
353613420M
CAP LOWER, MOUNT RUBBER
00
353663120M
LINK, REVERSE LOCK
00
344671770M
GREASE NIPPLE
00
346663340M
GRIP STOPPER, TILT LEVER
00
9413030500
Пружинная шайба
00
353613340M
Шайба
00
353663211M
PIN, REVERSE LOCK ARM
00
353671220M
AIR GUIDE LOWER
00
9101140830
Болт
00
930131200M
Гайка
00
346621240M
BRACKET NUT (NYLON)
00
9161030835
Болт
00
353621360M
WASHER, PIVOT BOLT
00
9101140625
Болт
00
345052231M
SNAP, REVERSE LOCK LINK
00
344671780M
CAP, GREASE NIPPLE
00
951130536M
STOPPER, TILT LEVER
00
353621210M
Штанга
00
353613380M
PLATE LOWER, DAMPER RUBBER
00
945330500M
E-RING, REVERSE LOCK ARM PIN
00
3A3623960M
GROUNDING WIRE
00
353624230M
THRUST PLATE
00
9413031200
SPRINING WASHER
00
346621250M
BRACKET NUT B
00
9413030800
Пружинная шайба
00
353663220M
REVERSE LOCK
00
353613360M
Резиновый демпфер
00
353663230M
SPRING, REVERSE LOCK LINK
00
353613010M
MOUNT RUBBER UPPER
00
353624340M
SPRING, TILT LEVER
00
353621220M
SPRING, THRUST ROD
00
353613150M
Шайба
00
353663150M
SPRING, REVERSE LOCK
00
940130600M
Пружинная шайба
00
353614120M
LOCK PLATE, BRACKET
00
941431800M
Упругая Шайба
00
353621160M
BRACKET WASHER
00
353614111M
MOUNT BRACKET
00
353663130M
ARM, REVERSE LOCK
00
3A3620100M
STEERING SHAFT ASSY
00
353624510M
TILT STOPPER RIGHT
00
353621330M
STERN BRACKET BOLT
00
353613070M
BOLT UPPER, MOUNT RUBBER
00
353624560M
NUT, TILT LEVER
00
353621124M
STERN BRACKET RIGHT
00
353621030M
CLAMP SCREW
00
931131200M
Гайка
00
353663350M
HOOK, REVERSE LOCK SPRING
00
910430610M
Болт
00
9101030614
Болт
00
353624310M
TILT LEVER RIGHT
00
346621270M
CAP RIGHT, BRACKET BOLT
00
353613020M
MOUNT RUBBER LOWER
00
353663270M
PLATE, REVERSE LOCK
00
353624170M
BUSHING, BRACKET SHAFT
00
353624540M
TILT STOPPER LEFT
00
353621410M
SPRING R, TILT ASSISTANT
00
353613330M
PLATE UPPER, DAMPER RUBBER
00
353624360M
TILT LEVER LEFT
00
353621131M
STERN BRACKET LEFT
00
332621010M
PAD, CLAMP SCREW
00
3B7613240M
Гайка
00
353663320M
SPRING, REVERSE LOCK ARM
00
338602181M
ENGINE ANODE
00
9413030600
Пружинная шайба
00
353663330M
GRIP, TILT LEVER
01
353621132M
STERN BRACKET LEFT
01
346663330M
GRIP, TILT LEVER
01
3A3621260M
BUSHING, 22.5-25.4-27
1
353621123M
STERN BRACKET RIGHT
2
353621131M
STERN BRACKET LEFT
3
353621150M
BRACKET BOLT
4
346621240M
BRACKET NUT (NYLON)
5
346621250M
BRACKET NUT B
6
353621160M
BRACKET WASHER
7
346621270M
CAP RIGHT, BRACKET BOLT
7-4
353663110M
LEVER, REVERSE LOCK
8
353621141M
PLATE, STERN BRACKET
9
910130835M
BOLT, STERN BRACKET
10
9413030500
Пружинная шайба
11
353621210M
THRUST ROD
12
353621220M
SPRING, THRUST ROD
13
353621030M
CLAMP SCREW
14
332621010M
PAD, CLAMP SCREW
15
353623101M
SWIVEL BRACKET
16
353620100M
STEERING SHAFT ASSEMBLY
17
353624170M
BUSHING, BRACKET SHAFT
18
345624410M
FRICTION PLATE, BRACKET
19
346624210M
SPRING, FRICITION PLATE
20
9101140830
Болт
21
353624230M
THRUST PLATE
22
353614120M
LOCK PLATE BRACKET
23
9101030614
Болт
24
9413030600
Пружинная шайба
25
353624150M
O-RING, BRACKER SHAFT
26
344671770M
GREASE NIPPLE
27
344671780M
CAP, GREASE NIPPLE
28
353613010M
MOUNT RUBBER UPPER
29
353613070M
BOLT UPPER, MOUNT RUBBER
30
353613330M
PLATE UPPER, DAMPER RUBBER
31
353613350M
Шайба
32
353613410M
CAP UPPER, MOUNT RUBBER
33
9161030835
Болт
34
9413030800
Пружинная шайба
35
353614111M
MOUNT BRACKET
36
353613020M
MOUNT RUBBER LOWER
37
353613211M
BOLT LOWER, MOUNT RUBBER
38
353613340M
Шайба
39
353613380M
PLATE LOWER, DAMPER RUBBER
40
353613150M
Шайба
41
931131200M
Гайка
42
353613220M
WASHER, MOUNT RUBBER
43
353613420M
CAP LOWER, MOUNT RUBBER
44
9101140625
Болт
46
353613360M
Резиновый демпфер
47
353624510M
TILT STOPPER RIGHT
48
353624540M
TILT STOPPER LEFT
49
353624520M
BOLT, TILT STOPPER
50
940131200M
Шайба
51
930131200M
Гайка
52
9413031200
Пружинная шайба
53
941431800M
Упругая Шайба
54
353624310M
TILT LEVER RIGHT
55-1
353663330M
GRIP, TILT LEVER
55-2
346663330M
GRIP, TILT LEVER
56
346663340M
GRIP STOPPER, TILT LEVER
57
951130435M
STOPPER, TILT LEVER
58
353624340M
SPRING, TILT LEVER
59
353624560M
NUT, TILT LEVER
60
353624360M
TILT LEVER LEFT
61
334613150M
Шайба
62
353621350M
BUSHING, PIVOT BOLT
63
353621360M
WASHER, PIVOT BOLT
64
353663220M
REVERSE LOCK
65
353663130M
ARM, REVERSE LOCK
66
353663270M
PLATE, REVERSE LOCK
67
353663140M
PIN, REVERSE LOCK
68
945330400M
E-RING, REVERSE LOCK PIN
69
353663211M
PIN, REVERSE LOCK ARM
70
945330500M
E-RING, REVERSE LOCK ARM PIN
71
353663150M
SPRING, REVERSE LOCK
72
353663350M
HOOK REVERSE LOCK SPRING
73
353663320M
SPRING, REVERSE LOCK ARM
74
353663110M
LEVER, REVERSE LOCK
75
353663120M
LINK, REVERSE LOCK
76
345052231M
3.5 ROD SNAP
77
353663230M
SPRING, REVERSE LOCK LINK
78
353621330M
STERN BRACKET BOLT
82
353621410M
SPRING R, TILT ASSISTANT
83
353621420M
SPRING L, TILT ASSISTANT
84
353621430M
SHAFT, TILT ASSISTANT
85
353671220M
AIR GUIDE LOWER
