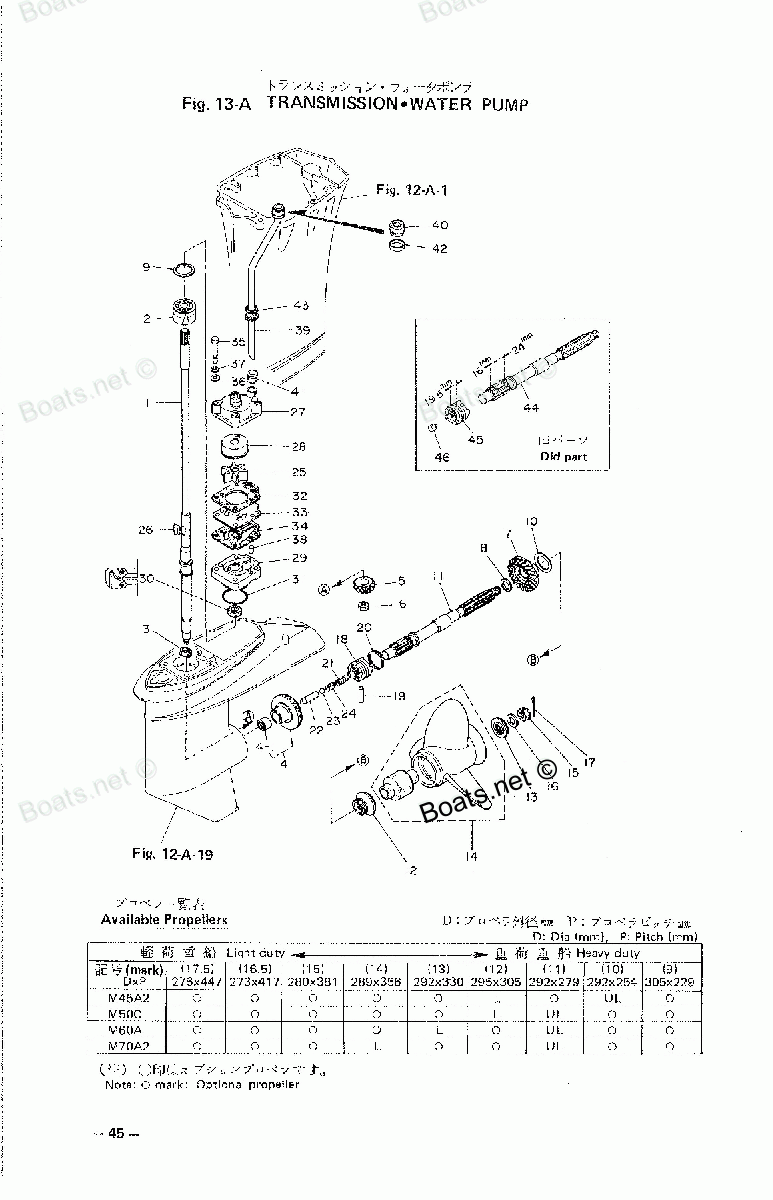

Transmission Water Pump

Tohatsu M50C
Tohatsu
#oem кодцена
1
353643030M
DRIVE SHAFT UL
1
353643020M
DRIVE SHAFT L
2
353602130M
BEARING B, DRIVE SHAFT
3
353643270M
SPRING, DRIVE SHAFT
4
353640100M
BEVEL GEAR A ASSEMBLY
4-1
345640110M
BEARING A, PROPELLER SHAFT
5
353640200M
BEVEL GEAR B
6
353640270M
NUT, BEVEL GEAR B
7
353640300M
BEVEL GEAR C
8
353640320M
WASHER, BEVEL GEAR C
9
353640230M
SHIM B, BACKLASH ADJUST
10
353640330M
SHIM C, BACKLASH ADJUST
11
3A3642110M
Вал гребного винта
12
353642310M
THRUST HOLDER A, PROPELLER
13
353642330M
STOPPER A, PROPELLER
14
353641060M
PROPELLER 14
14
353641070M
PROPELLER 15
14
353641010M
PROPELLER 9
14
353641080M
PROPELLER 16.5
14
353641020M
PROPELLER 10
14
353641090M
PROPELLER 17.5
14
353641030M
PROPELLER 11
14
353641040M
PROPELLER 12
14
353641050M
PROPELLER 13
15
353641210M
NUT, PROPELLER
16
345641240M
Шайба
17
951530325M
SPLIT PIN
18
3A3642150M
Муфта сцепления
19
353642180M
Палец
20
353642190M
SNAP, CLUTCH PIN
21
346642210M
Пружинка
22
353642231M
PUSH ROD, CLUTCH
23
965020803M
BALL, CLUTCH
24
3A3642220M
SPRING HOLDER, CLUTCH
25
353650210M
Импеллер
26
353650221M
KEY, PUMP IMPELLER
27
353650162M
PUMP CASE
28
353650110M
LINER, PUMP CASE
29
353650170M
PUMP CASE LOWER
30
345602230M
OIL SEAL, PUMP CASE
31
345650150M
O-RING, PUMP CASE LOWER
32
353650180M
Прокладка
33
353650250M
GUIDE PLATE, WATER PUMP
34
353650290M
GASKET, PUMP GUIDE PLATE
35
910130865M
Болт
36
9402030800
Шайба
37
9413030800
Пружинная шайба
38
334650120M
KNOCK, PUMP CASE
39
353651100M
WATER PIPE L
39
353651200M
WATER PIPE UL
40
345652060M
SEAL RUBBER UPPER, WATER PIPE
41
334650140M
SEAL RUBBER LOWER, WATER PIPE
42
345652050M
SET RING, SEAL RUBBER
43
346652040M
LOCK RUBBER, WATER PIPE
44
360642110M
Вал гребного винта
45
353642150M
Муфта сцепления
46
353642220M
SPRING HOLDER, CLUTCH
