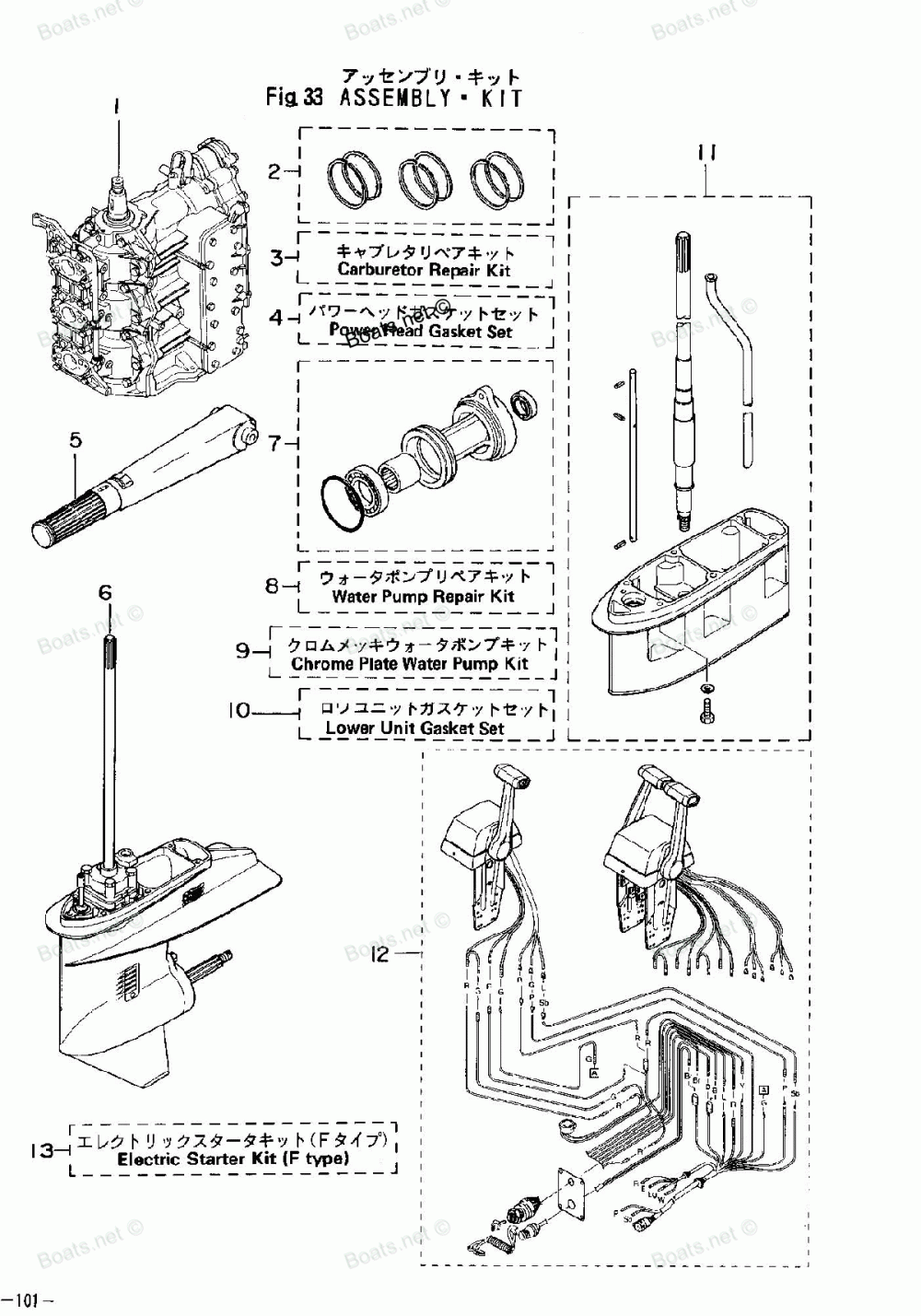

Assembly Kit Каталог оригинальных запчастей для лодочных моторов Tohatsu M50D2 (2002 и предыдущие)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Assembly Kit

Tohatsu M50D2

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING 2ND (STD)

PISTON RING 2ND (STD)

2

PISTON RING SET (0.5 O/S)

PISTON RING SET (0.5 O/S)

2

TEST PROPELLER

TEST PROPELLER

2

PISTON RING 1ST (0.5 O/S)

PISTON RING 1ST (0.5 O/S)

2

PISTON RING 2ND (0.5 O/S)

PISTON RING 2ND (0.5 O/S)

2

PISTON RING SET (STD)

PISTON RING SET (STD)

2

PISTON RING 1ST (STD)

PISTON RING 1ST (STD)

3

GASKET, CARBURETOR COVER

GASKET, CARBURETOR COVER

3

FLOAT ARM PIN

FLOAT ARM PIN

3

Винт

Винт

3

Поплавок

Поплавок

3

10P EXTANSION CORD (2M)

10P EXTANSION CORD (2M)

3

Прокладка

Прокладка

3

Винт

Винт

3

CARBURETOR REPAIR KIT

CARBURETOR REPAIR KIT

3

Прокладка

Прокладка

3

Заглушка

Заглушка

3

CARBURETOR COVER

CARBURETOR COVER

3

FLOAT VALVE

FLOAT VALVE

4

O-RING A

O-RING A

4

OIL SEAL, 16-28-7

OIL SEAL, 16-28-7

4

Колечко

Колечко

4

OIL SEAL, 25-40-8

OIL SEAL, 25-40-8

4

POWER HEAD GASKET SET

POWER HEAD GASKET SET

4

GASKET, ENGINE BASE

GASKET, ENGINE BASE

4

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

4

Прокладка

Прокладка

4

EXTENSION CORD (2M), TRIM METER

EXTENSION CORD (2M), TRIM METER

4

O-RING, 2.4-37-7

O-RING, 2.4-37-7

4

GASKET, BLIND PLATE

GASKET, BLIND PLATE

4

GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER

4

GASKET, 6.2-11-1

GASKET, 6.2-11-1

4

GASKET, THERMOSTAT CAP

GASKET, THERMOSTAT CAP

4

GASKET, INLET MANIFOLD

GASKET, INLET MANIFOLD

4

O-RING, 1.7-59

O-RING, 1.7-59

5

SPARK TESTER

SPARK TESTER

6

GREASE (250G)

GREASE (250G)

7

GEAR OIL (260G)

GEAR OIL (260G)

7

GEAR OIL (500CC)

GEAR OIL (500CC)

8

Прокладка

Прокладка

8

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

8

TOUCH-UP PAINT (SILVER GRAY)

TOUCH-UP PAINT (SILVER GRAY)

8

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

8

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

8

Болт

Болт

8

Импеллер

Импеллер

8

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

8

LINER, PUMP CASE

LINER, PUMP CASE

9

GUIDE PLATE, CHROME PLATED

GUIDE PLATE, CHROME PLATED

9

SUPER GOLD (0.4 LITER)

SUPER GOLD (0.4 LITER)

9

SUPER GOLD (1.0 LITER)

SUPER GOLD (1.0 LITER)

9

CHROME PLATED WATER PUMP KIT

CHROME PLATED WATER PUMP KIT

9

LINER, CHROME PLATED PUMP CASE

LINER, CHROME PLATED PUMP CASE

10

OIL SEAL, 17-33-6

OIL SEAL, 17-33-6

10

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

10

O-RING, 3.2-47

O-RING, 3.2-47

10

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

10

O-RING, 2.4-5.8

O-RING, 2.4-5.8

10

Прокладка глушителя

Прокладка глушителя

10

O-RING, 3.5-21.7

O-RING, 3.5-21.7

10

GASKET, EXHAUST HOUSING

GASKET, EXHAUST HOUSING

10

OIL SEAL, 22-36-10

OIL SEAL, 22-36-10

10

GASKET, 8.1-15-1

GASKET, 8.1-15-1

10

O-RING, 3.53-69.44

O-RING, 3.53-69.44

10

GASKET, 10.1-15-1

GASKET, 10.1-15-1

11

EXTENSION HOUSING KIT XL

EXTENSION HOUSING KIT XL

11

RECTIFIER KIT

RECTIFIER KIT

12

TOP MOUNT REMOTO CONTROL ASSEMBLY KIT

TOP MOUNT REMOTO CONTROL ASSEMBLY KIT

12

TOP MOUNT REMOTO CONTROL ASSEMBLY TWIN KIT

TOP MOUNT REMOTO CONTROL ASSEMBLY TWIN KIT

13

Болт

Болт

13

RECTIFIER COMPLETE

RECTIFIER COMPLETE

13

Болт

Болт

13

WASHER, 12.5-24-1

WASHER, 12.5-24-1

13

RUBBER STARTER MOTOR

RUBBER STARTER MOTOR

13

Винт

Винт

13

STARTER CORD

STARTER CORD

13

CLAMP, 6.5-47.5P

CLAMP, 6.5-47.5P

13

BAND, STARTER MOTOR

BAND, STARTER MOTOR

13

BATTERY CORD

BATTERY CORD

13

Болт

Болт

13

Болт

Болт

13

FUSE WIRE

FUSE WIRE

13

ELECTRIC STARTER KIT (F TYPE)

ELECTRIC STARTER KIT (F TYPE)

13

Болт

Болт

13

CLAMP, 7-80P

CLAMP, 7-80P

13

STARTER SOLENOID

STARTER SOLENOID

13

GROMMET, 25-5

GROMMET, 25-5

13

CAP, BATTERY CORD

CAP, BATTERY CORD

13

Болт

Болт

13

Болт

Болт

13

Стартер электрический

Стартер электрический

13

CAP, CORD

CAP, CORD

13

PLATE, FUEL FILTER

PLATE, FUEL FILTER
