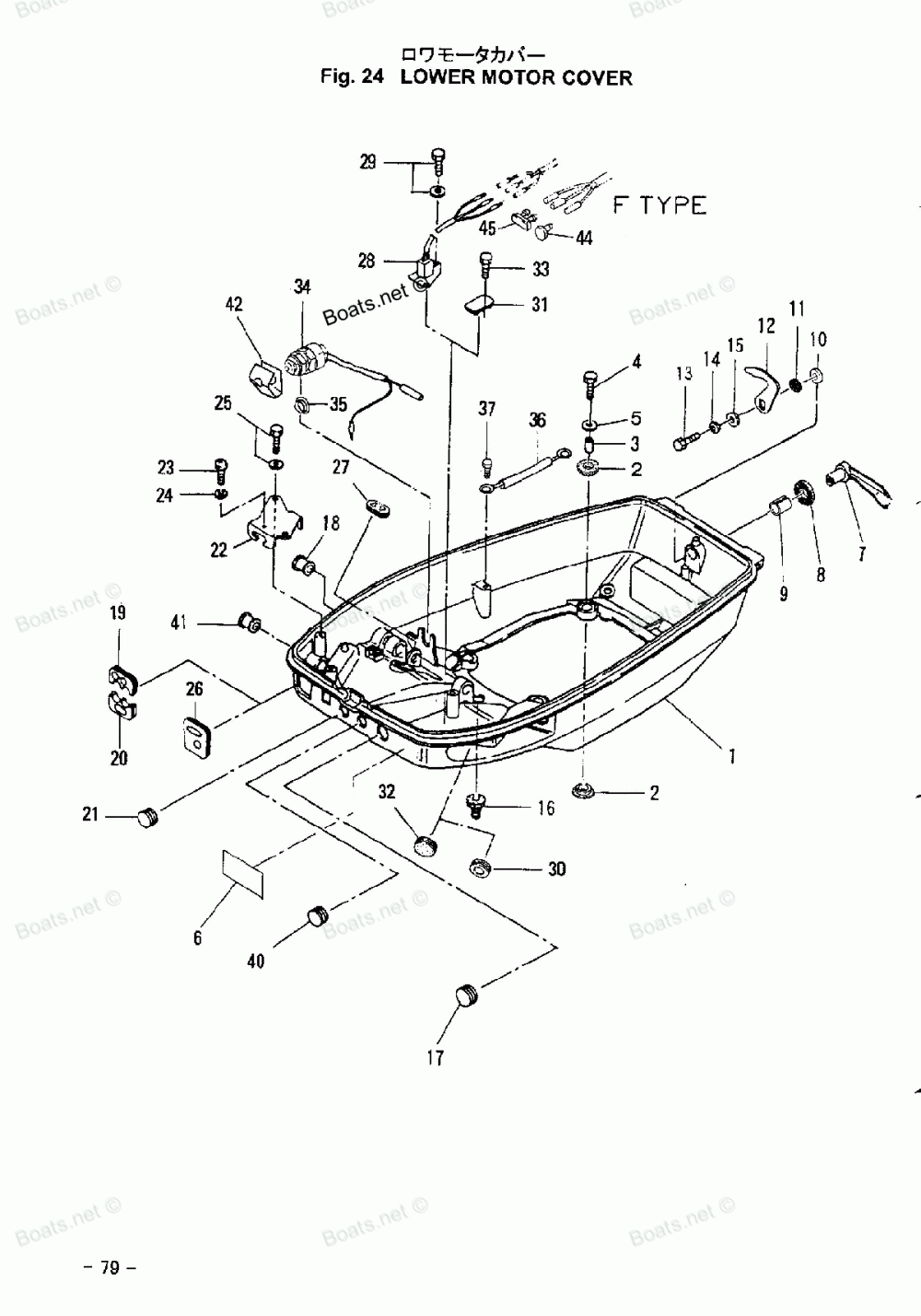

Lower Motor Cover

Tohatsu MD50A

Lower Motor Cover

#

oem код

название

цена

1

MOTOR COVER LOWER

MOTOR COVER LOWER

2

MOUNT RUBBER

MOUNT RUBBER

3

SPACER, 6.2-9-15.7

SPACER, 6.2-9-15.7

4

Болт

Болт

5

WASHER, 6.5-21-1

WASHER, 6.5-21-1

6

LABEL, PTT SWITCH

LABEL, PTT SWITCH

7

HOOK LEVER

HOOK LEVER

8

SEAL RING, HOOK LEVER

SEAL RING, HOOK LEVER

9

BUSHING, HOOK LEVER

BUSHING, HOOK LEVER

10

WASHER, 14-22-1

WASHER, 14-22-1

11

WAVE WASHER, D=14

WAVE WASHER, D=14

12

COVER HOOK

COVER HOOK

13

Болт

Болт

14

Пружинная шайба

Пружинная шайба

15

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

16

GROMMET, 17-3

GROMMET, 17-3

17

GROMMET, MAIN SWITCH

GROMMET, MAIN SWITCH

18

Заглушка

Заглушка

19

GROMMET, REMOTE CONTROL CABLE

GROMMET, REMOTE CONTROL CABLE

20

GROMMET, CORD

GROMMET, CORD

21

GROMMET, 17 - 2.7

GROMMET, 17 - 2.7

22

BRACKET, REMOTE CONTROL CABLE

BRACKET, REMOTE CONTROL CABLE

23

Винт

Винт

24

Пружинная шайба

Пружинная шайба

25

Болт

Болт

25

Болт

Болт

26

GROMMET, BATTERY CORD

GROMMET, BATTERY CORD

27

GROMMET, THROTTLE CABLE

GROMMET, THROTTLE CABLE

27

GROMMET, THROTTLE HOLE

GROMMET, THROTTLE HOLE

28

SWITCH B, POWER TRIM & TILT

SWITCH B, POWER TRIM & TILT

29

Болт

Болт

29

Болт

Болт

30

GROMMET, 18-2.5

GROMMET, 18-2.5

31

Уплотнитель резиновый

Уплотнитель резиновый

32

GROMMET, 17 - 2.7

GROMMET, 17 - 2.7

33

Болт

Болт

33

Болт

Болт

34

NEUTRAL SWITCH

NEUTRAL SWITCH

35

WASHER, 12.5-24-1

WASHER, 12.5-24-1

36

GROUND WIRE

GROUND WIRE

37

Болт

Болт

38

GROMMET, 17 - 2.7

GROMMET, 17 - 2.7

39

GROMMET, THROTTLE SHAFT

GROMMET, THROTTLE SHAFT

40

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

41

CAP, CHOKE KNOB

CAP, CHOKE KNOB

41

GROMMET, THROTTLE SHAFT

GROMMET, THROTTLE SHAFT

42

PLUG B, CABLE TERMINAL

PLUG B, CABLE TERMINAL

42

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

43

PLUG, CABLE TERMINAL

PLUG, CABLE TERMINAL

43

CAP, CHOKE KNOB

CAP, CHOKE KNOB

44

PLUG B, CABLE TERMINAL

PLUG B, CABLE TERMINAL

45

PLUG, CABLE TERMINAL

PLUG, CABLE TERMINAL
