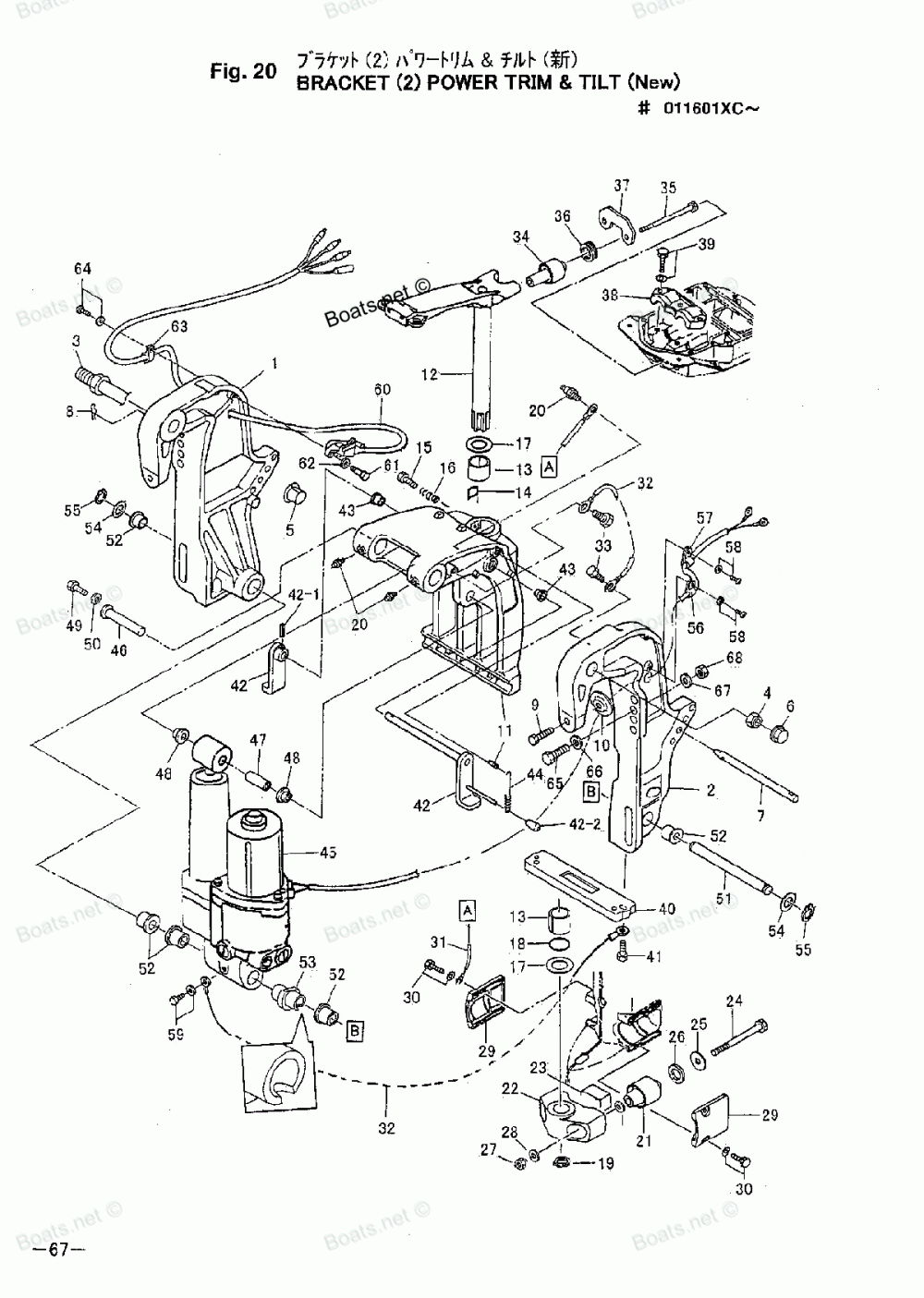

Bracket (2) Power Trim & Tilt (new)
Bracket (2) Power Trim & Tilt (new)

Bracket (2) Power Trim & Tilt (new)

Tohatsu MD50B

oem код

название

цена

3Z5S772110

STERN BRACKET RIGHT

3Z5S772120

STERN BRACKET LEFT

3Z5621910M

BRACKET BOLT ASSEMBLY

346621240M

NYLON NUT, 7/8

3C8772130M

BUSHING, BRACKET BOLT

CAP, BRACKET BOLT

Штанга

R-PIN, D=10

CLAMP SCREW

PAD, CLAMP SCREW

SWIVEL BRACKET, POWER TRIM & TILT

STEERING SHAFT

BUSHING, 30-36-41

FRICTION PLATE

Болт

Пружина

THRUST PLATE

O-RING, 3.5-29-.7

C-RING, D=28

GREASE NIPPLE

LOWER, MOUNT RUBBER

MOUNT BRACKET

Резиновый демпфер

BOLT, LOWER MOUNT RUBBER

353613340M

WASHER, 13-34-3

3C7613380M

DAMPER RUBBER, 21-36-5

9304031200

NYLON NUT, 12-P1.75

9402131200

Шайба

3C8S613420

CAP, LOWER MOUNT RUBBER

Болт

GROUND CABLE

GROUND CABLE

Болт

UPPER, MOUNT RUBBER

BOLT, UPPER MOUNT RUBBER

3E3613330M

DAMPER RUBBER, UPPER

3E3613350M

LOCK PLATE, UPPER

3C8S613410

CAP, UPPER MOUNT RUBBER

Болт

ANODE, STERN BRACKET

Болт

TILT STOPPER, PTT

42-1

9514033516

SPRING PIN, 3.5-16

42-2

369624331M

GRIP, TILT STOPPER

353632070M

COLLAR, 10.2-12-12

3R0624730M

SPRING, TILT STOPPER PTT

POWER TRIM & TILT

CYLINDER PIN, UPPER

BUSHING, 13-16-40

BUSHING, 13-17-19.5

Болт

WASHER, 6.5-23-1.5

CYLINDER PIN LOWER

BUSHING, 18-24-22

BUSHING, 18-24-60

WASHER, 18.2-34-1

C-RING, D=18

CLAMP, 6-9.5L

CLAMP, 6-14L

Винт

TRIM SENDER

Болт

Шайба, 6х16х1.5

BOLT, 12-P1.25

Шайба

NUT, 12-P1.25
