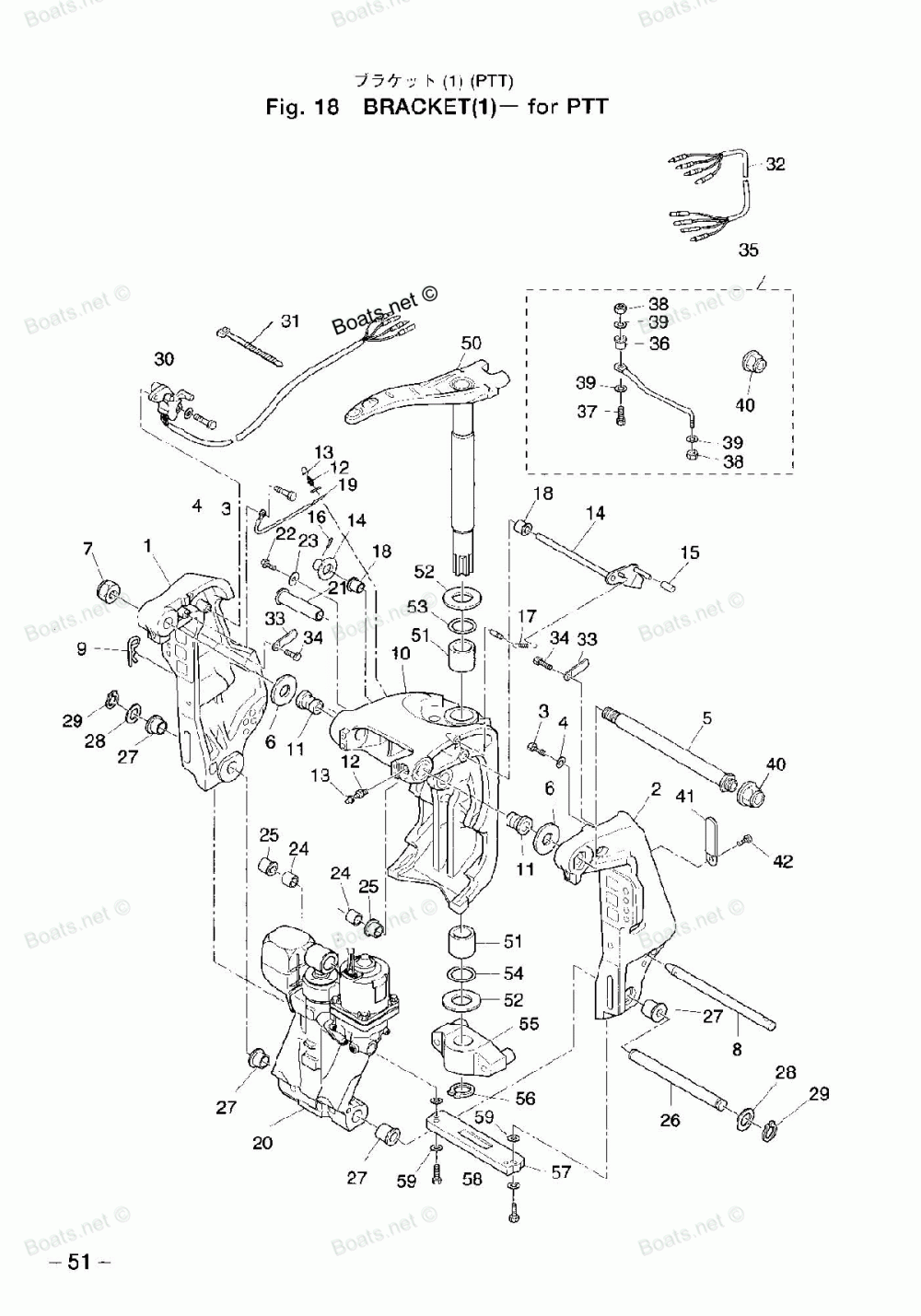

Bracket (1) - For Ptt
Bracket (1) - For Ptt

Bracket (1) - For Ptt

Tohatsu M60C

Bracket (1) - For Ptt

#

oem код

название

цена

1

STERN BRACKET R

STERN BRACKET R

2

STERN BRACKET L

STERN BRACKET L

3

Болт

Болт

4

Шайба

Шайба

6

WASHER, 25.7-50-1

WASHER, 25.7-50-1

7

NYLON NUT, 7/8

NYLON NUT, 7/8

8

Штанга

Штанга

9

PIN, THURST ROD

PIN, THURST ROD

11

BUSHING, 25.6-28.6-40

BUSHING, 25.6-28.6-40

12

GREASE NIPPLE

GREASE NIPPLE

13

CAP, GREASE NIPPLE

CAP, GREASE NIPPLE

14

Шайба

Шайба

15

GRIP, TILT STOPPER

GRIP, TILT STOPPER

16

Пружинный Штифт

Пружинный Штифт

17

SPRING, TILT STOPPER

SPRING, TILT STOPPER

18

COLLAR, 10.2-12-12

COLLAR, 10.2-12-12

19

EARTH WIRE

EARTH WIRE

21

CYLINDER PIN UPPER

CYLINDER PIN UPPER

22

Болт

Болт

23

WASHER, 6.5-23-1.5

WASHER, 6.5-23-1.5

24

BUSHING, 18-24-19

BUSHING, 18-24-19

25

BUSHING, 18-20-20.5

BUSHING, 18-20-20.5

26

CYLINDER PIN LOWER

CYLINDER PIN LOWER

27

BUSHING, 22-25.4-23.5

BUSHING, 22-25.4-23.5

28

WASHER, 22.6-30-2

WASHER, 22.6-30-2

29

C-RING, D=22

C-RING, D=22

30

TRIM SENDER

TRIM SENDER

31

BAND, LEAD, WIRE

BAND, LEAD, WIRE

32

EXTENSION CORD, TRIM SENDER

EXTENSION CORD, TRIM SENDER

33

CLAMP, 6.5-47.5P

CLAMP, 6.5-47.5P

36

SPACER, DRAG LINK H

SPACER, DRAG LINK H

37

BOLT, 3/8-55

BOLT, 3/8-55

38

NYLON NUT, 3/8

NYLON NUT, 3/8

39

WASHER, 9.6-18-2

WASHER, 9.6-18-2

40

SEAL RING, DRAG LINK

SEAL RING, DRAG LINK

41

CLAMP, 6.5-14L

CLAMP, 6.5-14L

42

Винт

Винт

51

BUSHING, 32-40-45

BUSHING, 32-40-45

52

THRUST PLATE

THRUST PLATE

53

SEAL RING, STEARING SHAFT

SEAL RING, STEARING SHAFT

54

O-RING, 4.5-32

O-RING, 4.5-32

55

MOUNT BRACKET

MOUNT BRACKET

56

C-RING, D=32

C-RING, D=32

57

ANODE, STERN BRACKET

ANODE, STERN BRACKET

58

Болт

Болт

59

Шайба

Шайба
