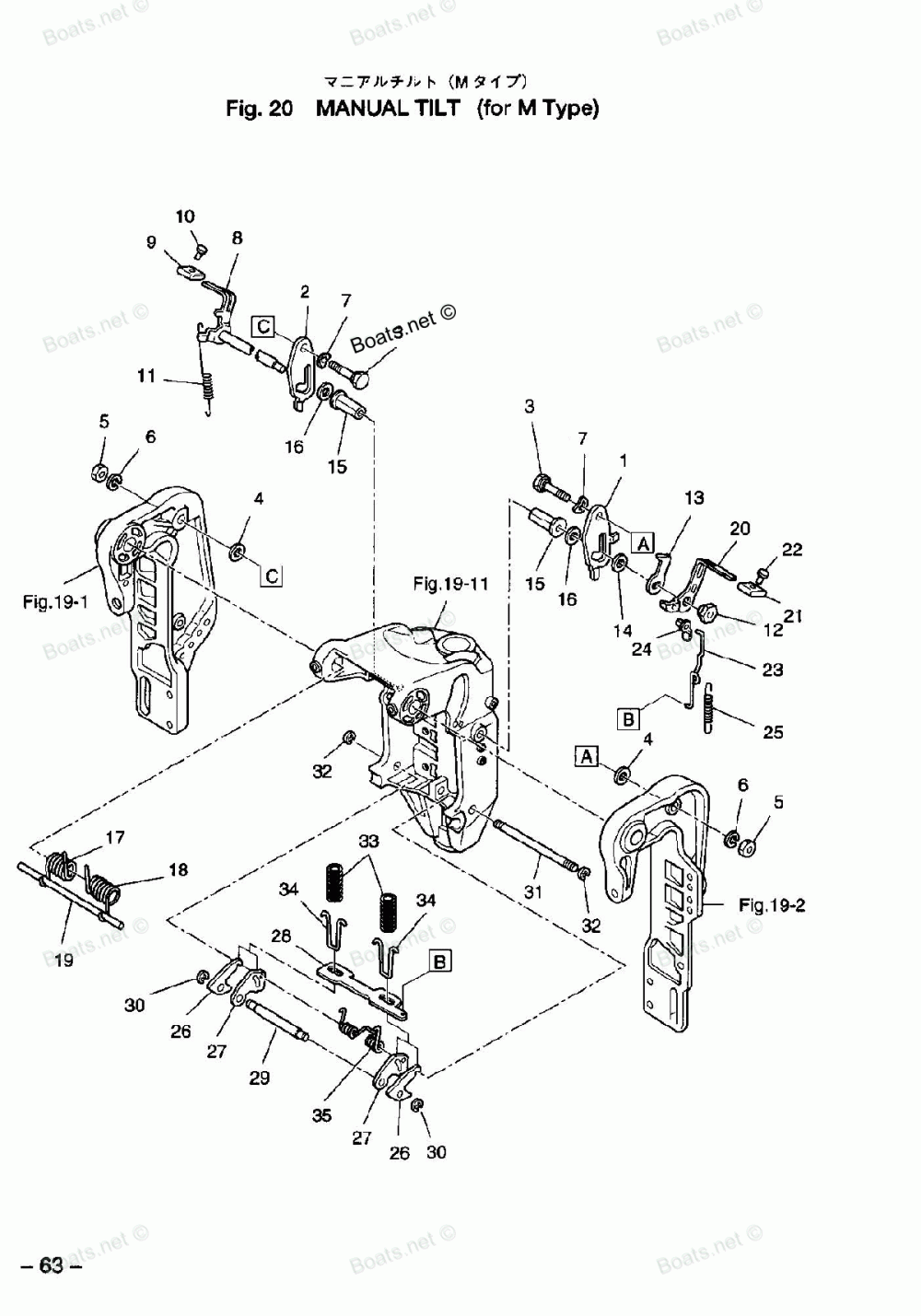

Manual Tilt (for M Type) Каталог оригинальных запчастей для лодочных моторов Tohatsu M70B (2002 и предыдущие)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2002 и предыдущие
M70B
Manual Tilt (for M Type)
Manual Tilt (for M Type)

Manual Tilt (for M Type)

Tohatsu M70B

Manual Tilt (for M Type)

#

oem код

название

цена

1

TILT STOPPER L

TILT STOPPER L

2

TILT STOPPER R

TILT STOPPER R

3

BOLT, TILT STOPPER

BOLT, TILT STOPPER

4

Шайба

Шайба

5

NUT P.1.5

NUT P.1.5

6

Пружинная шайба

Пружинная шайба

7

WAVE WASHER 18

WAVE WASHER 18

8

TILT LEVER R

TILT LEVER R

9

Рукоятка

Рукоятка

10

Стопор

Стопор

11

SPRING, TILT LEVER R

SPRING, TILT LEVER R

12

NUT, TILT LEVER

NUT, TILT LEVER

13

TILT LEVER L

TILT LEVER L

14

WASHER, 10.5-22-3

WASHER, 10.5-22-3

15

BUSHING, 12.2-16-46

BUSHING, 12.2-16-46

16

WASHER, 12.5-30-0.5

WASHER, 12.5-30-0.5

17

SPRING R, TILT ASSISTANT

SPRING R, TILT ASSISTANT

18

SPRING L, TILT ASSISTANT

SPRING L, TILT ASSISTANT

19

SHAFT, TILT ASSISTANT

SHAFT, TILT ASSISTANT

20

LEVER, REVERSE LOCK

LEVER, REVERSE LOCK

21

Рукоятка

Рукоятка

23

LINK, REVERSE LOCK

LINK, REVERSE LOCK

24

ROD SNAP, 3.5-2

ROD SNAP, 3.5-2

25

SPRING, REVERSE LOCK LINK

SPRING, REVERSE LOCK LINK

26

ARM, REVERSE LOCK

ARM, REVERSE LOCK

27

ARM, REVERSE LOCK

ARM, REVERSE LOCK

28

PLATE, REVERSE LOCK

PLATE, REVERSE LOCK

29

PIN, REVERE LOCK

PIN, REVERE LOCK

30

E-RING, D=4

E-RING, D=4

31

PIN, REVERSE LOCK ARM

PIN, REVERSE LOCK ARM

32

E-RING, D=5

E-RING, D=5

33

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

34

HOOK, REVERSE LOCK SPRIN

HOOK, REVERSE LOCK SPRIN

35

SPRING, REVERSE LOCK ARM

SPRING, REVERSE LOCK ARM
