Assembly Kit

Tohatsu M80A

Assembly Kit

#

oem код

название

цена

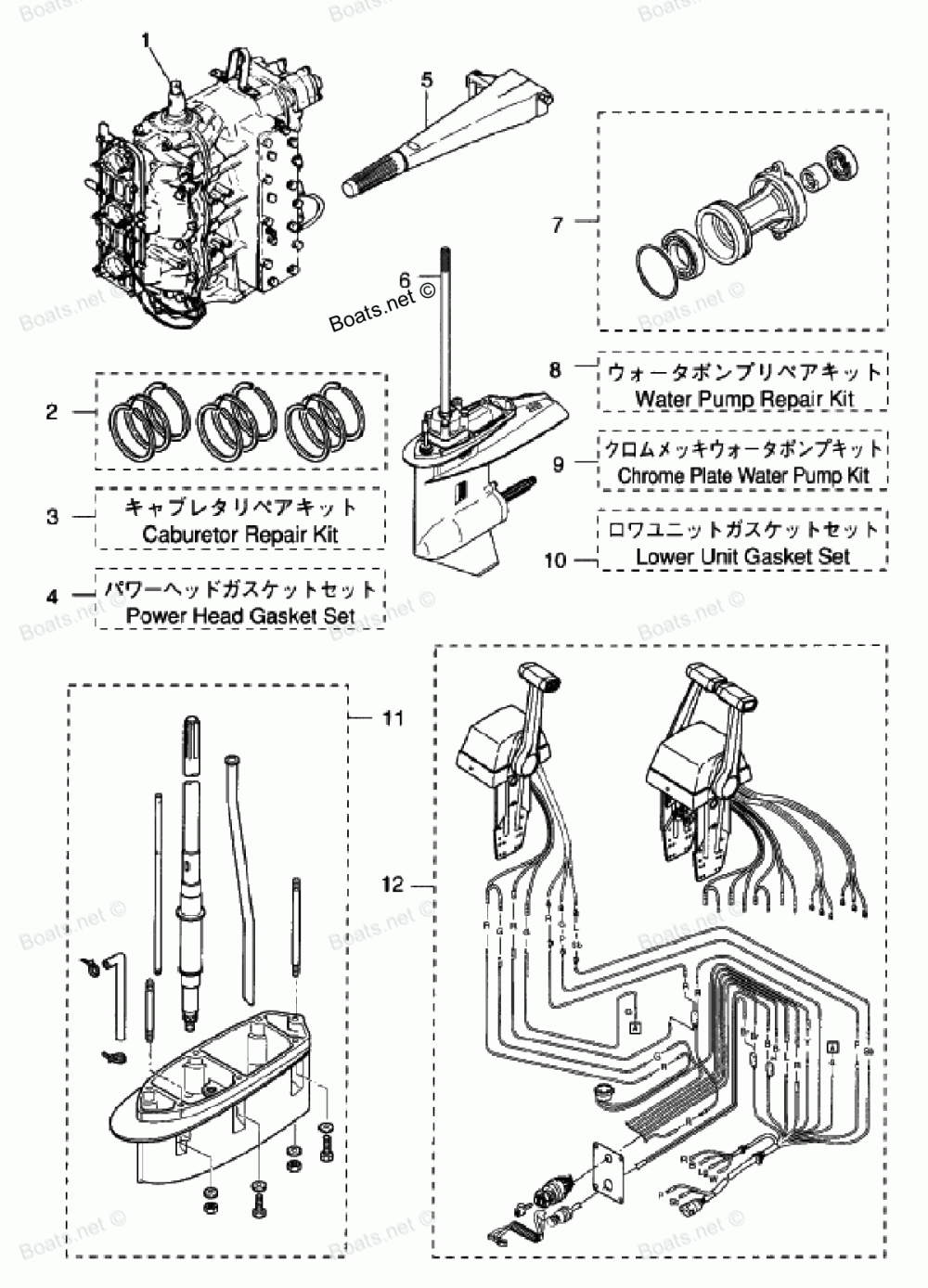

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING 1ST (0.5 O/S)

PISTON RING 1ST (0.5 O/S)

2

PISTON RING 2ND (0.5 O/S)

PISTON RING 2ND (0.5 O/S)

2

PISTON RING SET (STD)

PISTON RING SET (STD)

2

PISTON RING 1ST (STD)

PISTON RING 1ST (STD)

2

PISTON RING 2ND (STD)

PISTON RING 2ND (STD)

2

PISTON RING SET (0.5 O/S)

PISTON RING SET (0.5 O/S)

3

GASKET B, CARBURETOR

GASKET B, CARBURETOR

3

ARM PIN, FLOAT

ARM PIN, FLOAT

3

PLATE A, COVER GASKET

PLATE A, COVER GASKET

3

FLOAT VALVE

FLOAT VALVE

3

CARBURETOR REPAIR KIT

CARBURETOR REPAIR KIT

3

PLATE B, COVER GASKET

PLATE B, COVER GASKET

3

Зажим

Зажим

3

Прокладка карбюратора

Прокладка карбюратора

3

Винт

Винт

3

SCREW, ARM PIN

SCREW, ARM PIN

3

O-RING, FLOAT CHAMBER

O-RING, FLOAT CHAMBER

3

Прокладка

Прокладка

3

RUBBER CAP

RUBBER CAP

3

Винт

Винт

3

VALVE PIN

VALVE PIN

3

GASKET A, CARBURETOR

GASKET A, CARBURETOR

3

Поплавок

Поплавок

4

POWER HEAD GASKET SET

POWER HEAD GASKET SET

4

GASKET, AIR SILENCER COVER

GASKET, AIR SILENCER COVER

4

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

4

GASKET , 36- 52-2

GASKET , 36- 52-2

4

Прокладка

Прокладка

4

O-RING, 1.6 - 19.2

O-RING, 1.6 - 19.2

4

GASKET, BLIND PLATE

GASKET, BLIND PLATE

4

GASKET, ENGINE BASE

GASKET, ENGINE BASE

4

GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER

4

Прокладка

Прокладка

4

OIL SEAL (UPPER, CRANKSHAFT)

OIL SEAL (UPPER, CRANKSHAFT)

4

GASKET, THERMOSTAT CAP

GASKET, THERMOSTAT CAP

4

O-RING A

O-RING A

4

O-RING, 2.4 - 44.7

O-RING, 2.4 - 44.7

4

O-RING, 2 - 74.5

O-RING, 2 - 74.5

4

Колечко

Колечко

4

GASKET, INLET MANIFOLD

GASKET, INLET MANIFOLD

4

OIL SEAL, 35 - 58 - 9

OIL SEAL, 35 - 58 - 9

4

GASKET A, CHECK VALVE

GASKET A, CHECK VALVE

4

GASKET, AIR SILENCER

GASKET, AIR SILENCER

4

OIL SEAL, 19.6 - 35 - 10

OIL SEAL, 19.6 - 35 - 10

4

GASKET B, CHECK VALVE

GASKET B, CHECK VALVE

5

HANDLE ASSEMBLY

HANDLE ASSEMBLY

6

LOWER UNIT ASSEMBLY L

LOWER UNIT ASSEMBLY L

6

LOWER UNIT ASSEMBLY XL

LOWER UNIT ASSEMBLY XL

7

PROPELLER SHAFT HOUSING ASSEMBLY

PROPELLER SHAFT HOUSING ASSEMBLY

8

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

8

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

8

Болт

Болт

8

Импеллер

Импеллер

8

Шайба

Шайба

8

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

8

Пружинная шайба

Пружинная шайба

8

LINER, PUMP CASE

LINER, PUMP CASE

8

Прокладка

Прокладка

8

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

9

CHROME PLATED WATER PUMP KIT

CHROME PLATED WATER PUMP KIT

9

LINER, CHROME PLATED PUMP CASE

LINER, CHROME PLATED PUMP CASE

9

GUIDE PLATE, CHROME PLATED

GUIDE PLATE, CHROME PLATED

10

OIL SEAL, 22 - 42 - 7

OIL SEAL, 22 - 42 - 7

10

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

10

O-RING, 3.1 - 54.4

O-RING, 3.1 - 54.4

10

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

10

O-RING, 1.9 - 6.8

O-RING, 1.9 - 6.8

10

Прокладка глушителя

Прокладка глушителя

10

O-RING, 3.5 - 27.7

O-RING, 3.5 - 27.7

10

GASKET, EXHAUST HOUSING

GASKET, EXHAUST HOUSING

10

O-RING, 3.1 - 94.4

O-RING, 3.1 - 94.4

10

GASKET, 8.1 - 15 - 1

GASKET, 8.1 - 15 - 1

10

OIL SEAL, 30 - 50 - 12

OIL SEAL, 30 - 50 - 12

10

GASKET, 10.1 - 15 - 1

GASKET, 10.1 - 15 - 1

10

PACKING, TRIM TAB

PACKING, TRIM TAB

11

EXTENSION HOUSING KIT XL

EXTENSION HOUSING KIT XL

12

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT (RC6F)

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT (RC6F)

12

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT TWIN (RC6FT)

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT TWIN (RC6FT)
