Assembly Kit Каталог оригинальных запчастей для лодочных моторов Tohatsu MD90A (2002 и предыдущие)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

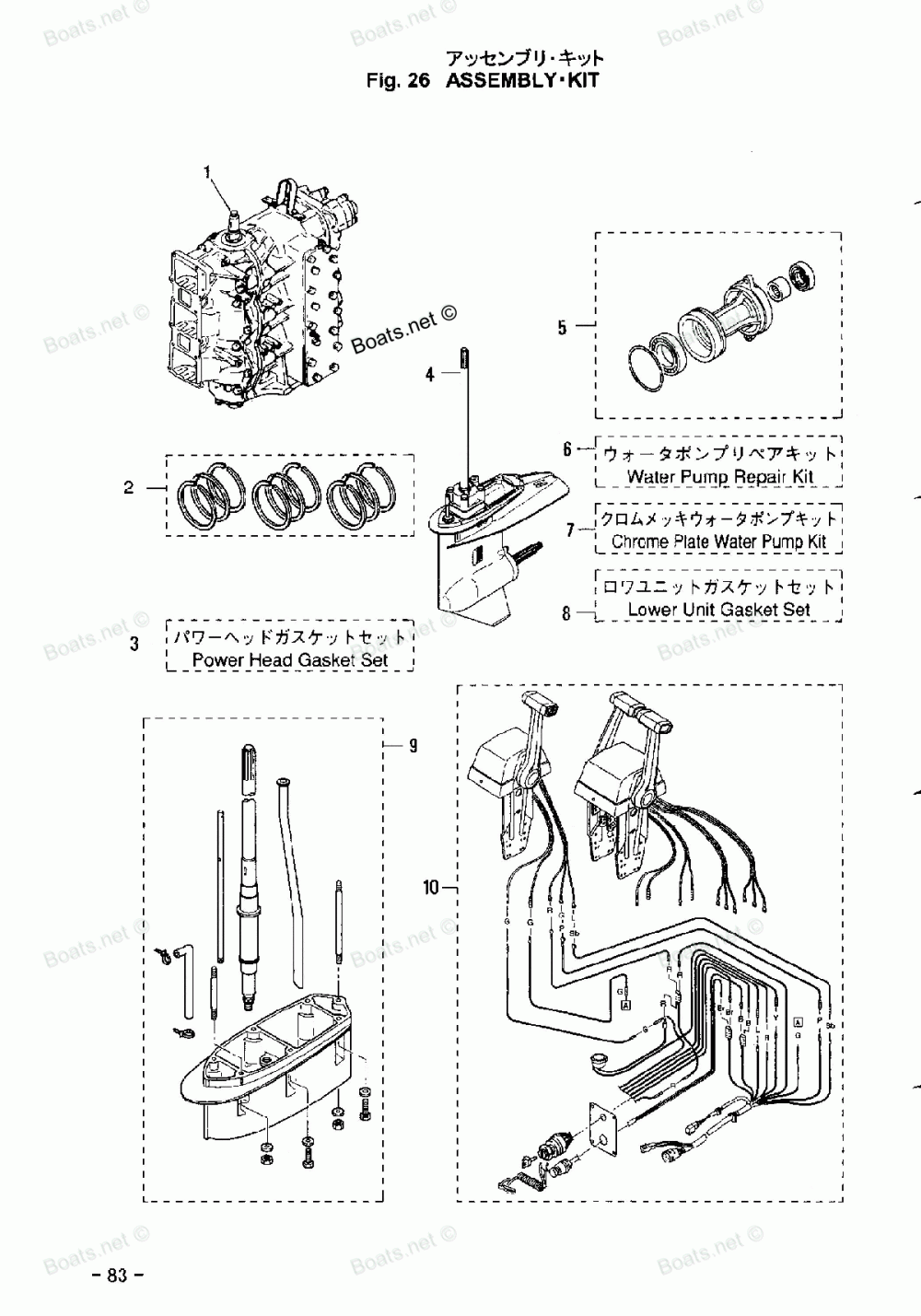

Assembly Kit

Tohatsu MD90A

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING 2ND (0.5 O/S)

PISTON RING 2ND (0.5 O/S)

2

PISTON RING SET (STD)

PISTON RING SET (STD)

2

PISTON RING 1ST

PISTON RING 1ST

2

PISTON RING 2ND

PISTON RING 2ND

2

PISTON RING SET (0.5 O/S)

PISTON RING SET (0.5 O/S)

2

PISTON RING 1ST (0.5 O/S)

PISTON RING 1ST (0.5 O/S)

3

O-RING A

O-RING A

3

OIL SEAL, 19.6-74.5

OIL SEAL, 19.6-74.5

3

POWER HEAD GASKET SET

POWER HEAD GASKET SET

3

Колечко

Колечко

3

OIL SEAL, 35-58-9

OIL SEAL, 35-58-9

3

Прокладка

Прокладка

3

O-RING, 1.6-19.2

O-RING, 1.6-19.2

3

GASKET, INLET MANIFOLD

GASKET, INLET MANIFOLD

3

GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER

3

GASKET, 40-62-2

GASKET, 40-62-2

3

GASKET, AIR BOX

GASKET, AIR BOX

3

GASKET, THERMOSTAT CAP

GASKET, THERMOSTAT CAP

3

GASKET, ENGINE BASE

GASKET, ENGINE BASE

3

GASKET, AIR BOX COVER

GASKET, AIR BOX COVER

3

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

3

O-RING, 2.4-44.7

O-RING, 2.4-44.7

3

Прокладка

Прокладка

3

O-RING, 2-74.5

O-RING, 2-74.5

6

SEAL, PUMP CASE

SEAL, PUMP CASE

6

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

6

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

6

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

6

Болт

Болт

6

Импеллер

Импеллер

6

Шайба

Шайба

6

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

6

LINER, PUMP CASE

LINER, PUMP CASE

7

LINER, CHROME PLATED PUMP CASE

LINER, CHROME PLATED PUMP CASE

7

GUIDE PLATE, CHROME PLATED

GUIDE PLATE, CHROME PLATED

7

CHROME PLATED WATER PUMP KIT

CHROME PLATED WATER PUMP KIT

8

O-RING, 3.1-94.4

O-RING, 3.1-94.4

8

GASKET, 10.1-15-1

GASKET, 10.1-15-1

8

OIL SEAL, 30-50-12

OIL SEAL, 30-50-12

8

OIL SEAL, 22-42-7

OIL SEAL, 22-42-7

8

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

8

PACKING, TRIM TAB

PACKING, TRIM TAB

8

SHIM, 35-41.9-0.5

SHIM, 35-41.9-0.5

8

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

8

O-RING, 3.1-54.4

O-RING, 3.1-54.4

8

Прокладка глушителя

Прокладка глушителя

8

O-RING, 1.9-6.8

O-RING, 1.9-6.8

8

GASKET, EXHAUST HOUSING

GASKET, EXHAUST HOUSING

8

O-RING, 3.5-27.7

O-RING, 3.5-27.7

8

GASKET, 8.1-15-1

GASKET, 8.1-15-1

9

SPRING PIN, 3.5-16

SPRING PIN, 3.5-16

9

Гайка

Гайка

9

SPRING PIN, 3.5-10

SPRING PIN, 3.5-10

9

BOLT, 10-40

BOLT, 10-40

9

PIPE A, SPEEDOMETER (XL)

PIPE A, SPEEDOMETER (XL)

9

STUD BOLT, 10-165

STUD BOLT, 10-165

9

EXTENSION HOUSING KIT XL

EXTENSION HOUSING KIT XL

9

WATER PIPE XL

WATER PIPE XL

9

Шайба

Шайба

9

EXTENSION HOUSING XL

EXTENSION HOUSING XL

9

DRIVE SHAFT XL

DRIVE SHAFT XL

9

BOLT, 8-35

BOLT, 8-35

9

Тяга (X-Long)

Тяга (X-Long)

9

Шпилька

Шпилька
