Корпус редуктора (вертикальный вал)

Корпус редуктора (вертикальный вал)

Tohatsu MD90A

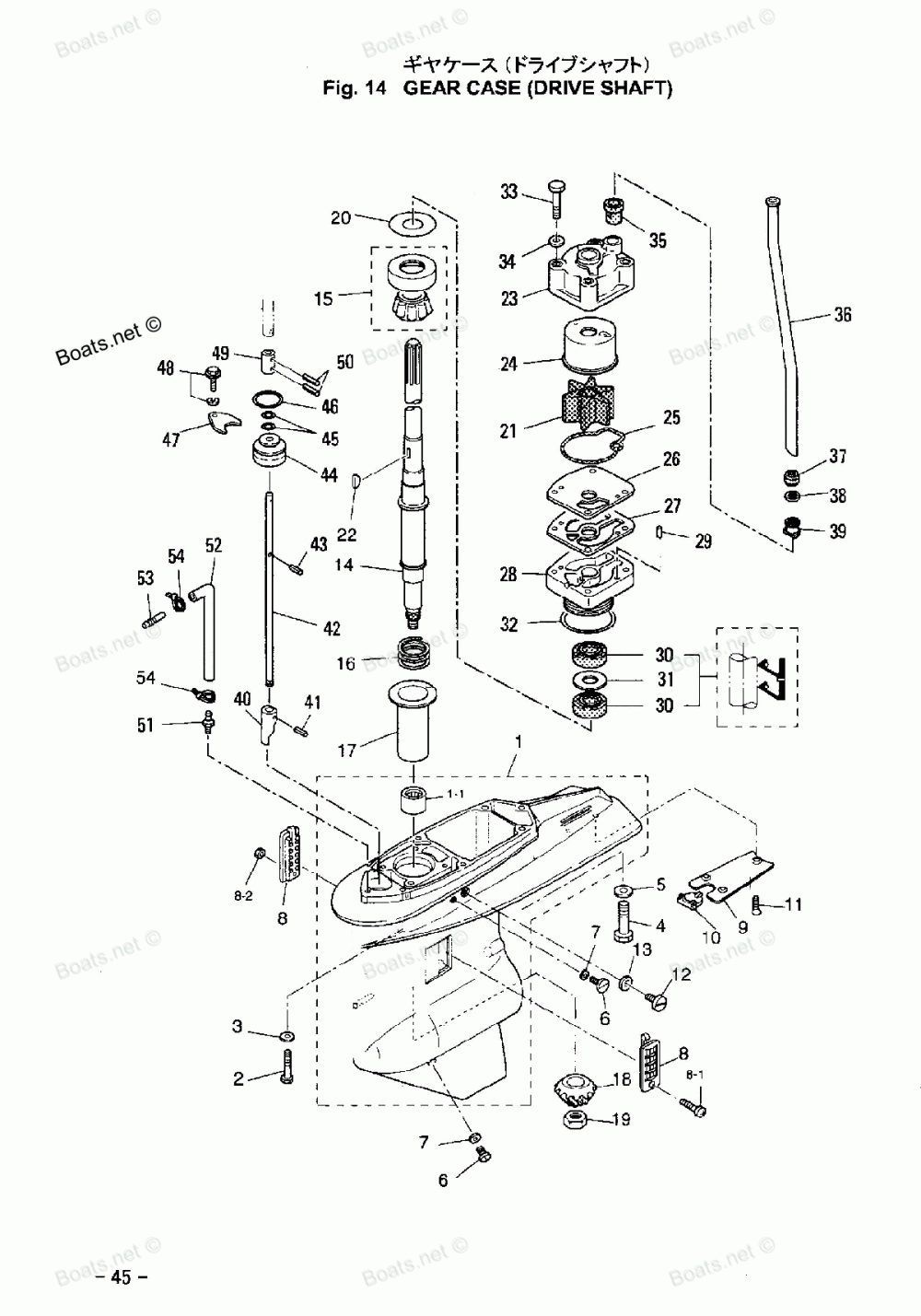

Корпус редуктора (вертикальный вал)

#

oem код

название

цена

1

TAPER ROLLER BEARING, 30209

TAPER ROLLER BEARING, 30209

1-1

NEEDLE BEARING, 25.4-33.3-31.8

NEEDLE BEARING, 25.4-33.3-31.8

2

Болт

Болт

2-1

NEEDLE BEARING, 25-32-26

NEEDLE BEARING, 25-32-26

3

SHIM, 47-57-0.15

SHIM, 47-57-0.15

3

Шайба

Шайба

3

SHIM, 47-57-0.15

SHIM, 47-57-0.15

4

Вал гребного винта

Вал гребного винта

4

BOLT, 10-40

BOLT, 10-40

5

Кулачковый толкатель

Кулачковый толкатель

5

Шайба

Шайба

6

OIL PLUG

OIL PLUG

6

Палец

Палец

7

GASKET, 8.1-15.1

GASKET, 8.1-15.1

7

SNAP, CLUTCH PIN

SNAP, CLUTCH PIN

8

WATER STRAINER SET

WATER STRAINER SET

8

PUSH ROD, CLUTCH

PUSH ROD, CLUTCH

8-1

Винт

Винт

8-2

NYLON NUT

NYLON NUT

9

STEEL BALL, 9/16

STEEL BALL, 9/16

9

PLATE, GEAR CASE

PLATE, GEAR CASE

10

SPRING HOLDER CLUTCH

SPRING HOLDER CLUTCH

10

HOLE PLUG, GEAR CASE PLATE

HOLE PLUG, GEAR CASE PLATE

11

Винт

Винт

11

Пружина

Пружина

12

WATER PLUG

WATER PLUG

12

HOUSING, PROPELLER SHAFT

HOUSING, PROPELLER SHAFT

13

GASKET, 10.1-15.1

GASKET, 10.1-15.1

13

NEEDLE BEARING, 30-40-30

NEEDLE BEARING, 30-40-30

14

DRIVE SHAFT L

DRIVE SHAFT L

14

DRIVE SHAFT UL

DRIVE SHAFT UL

14

BEARING, 6208

BEARING, 6208

15

TAPER ROLL BEARING, 32305

TAPER ROLL BEARING, 32305

15

O-RING, 3.1-94.4

O-RING, 3.1-94.4

16

SPRING, DRIVE SHAFT

SPRING, DRIVE SHAFT

16

SHIM, 42-50-0.15

SHIM, 42-50-0.15

17

GUIDE, DRIVE SHAFT SPRING

GUIDE, DRIVE SHAFT SPRING

17

BEVEL GEAR C

BEVEL GEAR C

18

BEVEL GEAR B

BEVEL GEAR B

18

WASHER, T=3.2

WASHER, T=3.2

18

WASHER, T=3.0

WASHER, T=3.0

18

WASHER, T=2.8

WASHER, T=2.8

19

NUT, BEVEL GEAR B

NUT, BEVEL GEAR B

19

OIL SEAL, 30-50-12

OIL SEAL, 30-50-12

20

BOLT, 8-30 PRECOATED

BOLT, 8-30 PRECOATED

20

SHIM, 52-60.5-0.3

SHIM, 52-60.5-0.3

20

SHIM, 52-60.5-0.15

SHIM, 52-60.5-0.15

20

SHIM, 52-60.5-0.1

SHIM, 52-60.5-0.1

21

Импеллер

Импеллер

21

Шайба

Шайба

22

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

22

PROPELLER HUB KIT

PROPELLER HUB KIT

22-1

FORWARD THRUST WASHER

FORWARD THRUST WASHER

22-2

DRIVE SLEEVE

DRIVE SLEEVE

22-3

ADAPTER, DRIVE SLEEVE

ADAPTER, DRIVE SLEEVE

23

PROPELLER M-13 (355X330)

PROPELLER M-13 (355X330)

23

PROPELLER M-15 (355X381)

PROPELLER M-15 (355X381)

23

PROPELLER M-17 (355X432)

PROPELLER M-17 (355X432)

23

UPPER PUMP CASE

UPPER PUMP CASE

23

PROPELLER M-19 (355X483)

PROPELLER M-19 (355X483)

23

PROPELLER M-21 (324X533)

PROPELLER M-21 (324X533)

23

PROPELLER M-11 (355X297)

PROPELLER M-11 (355X297)

24

LINER, PUMP CASE

LINER, PUMP CASE

24

NUT, PROPELLER

NUT, PROPELLER

25

WASHER, 17-32-3

WASHER, 17-32-3

25

SEAL, PUMP CASE

SEAL, PUMP CASE

26

SPLIT PIN, 3-25

SPLIT PIN, 3-25

26

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

27

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

27

Триммер

Триммер

28

LOWER PUMP CASE

LOWER PUMP CASE

28

Шпилька

Шпилька

29

KNOCK, 4-10

KNOCK, 4-10

29

Шайба

Шайба

30

OIL SEAL, 22-42-7

OIL SEAL, 22-42-7

30

NYLON NUT, 8P-1.25

NYLON NUT, 8P-1.25

31

PACKING, TRIM TAB

PACKING, TRIM TAB

31

PROPELLER M-16

PROPELLER M-16

31

SPACER, 35-41.9-0.5

SPACER, 35-41.9-0.5

32

O-RING, 3.1-54.4

O-RING, 3.1-54.4

33

Болт

Болт

35

LOWER SEAL RUBBER, WATER PIPE

LOWER SEAL RUBBER, WATER PIPE

36

WATER PIPE L

WATER PIPE L

36

WATER PIPE UL

WATER PIPE UL

37

UPPER SEAL RUBBER, WATER PIPE

UPPER SEAL RUBBER, WATER PIPE

38

COLLAR, 18-20-4.5

COLLAR, 18-20-4.5

39

LOCKING RUBBER, WATER PIPE

LOCKING RUBBER, WATER PIPE

40

Кулачковый толкатель

Кулачковый толкатель

41

SPRING PIN, 3.5-16

SPRING PIN, 3.5-16

43

SPRING PIN, 3.5-10

SPRING PIN, 3.5-10

44

BUSHING, CAM ROD

BUSHING, CAM ROD

45

O-RING, 1.9-6.8

O-RING, 1.9-6.8

46

O-RING, 3.5-27.7

O-RING, 3.5-27.7

47

Стопор

Стопор

48

Болт

Болт

49

JOINT, SHIFT ROD

JOINT, SHIFT ROD

51

NIPPLE, 6-1/8

NIPPLE, 6-1/8

52

PIPE A, SPEEDOMETER L

PIPE A, SPEEDOMETER L

52

PIPE A, SPEEDOMETER UL

PIPE A, SPEEDOMETER UL

53

NIPPLE, 6-6

NIPPLE, 6-6

54

BAND, LEAD WIRE 100

BAND, LEAD WIRE 100
