Electric Parts (ecu & Diagram) Каталог оригинальных запчастей для лодочных моторов Tohatsu M115A2 (2002 и предыдущие)

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2002 и предыдущие
M115A2

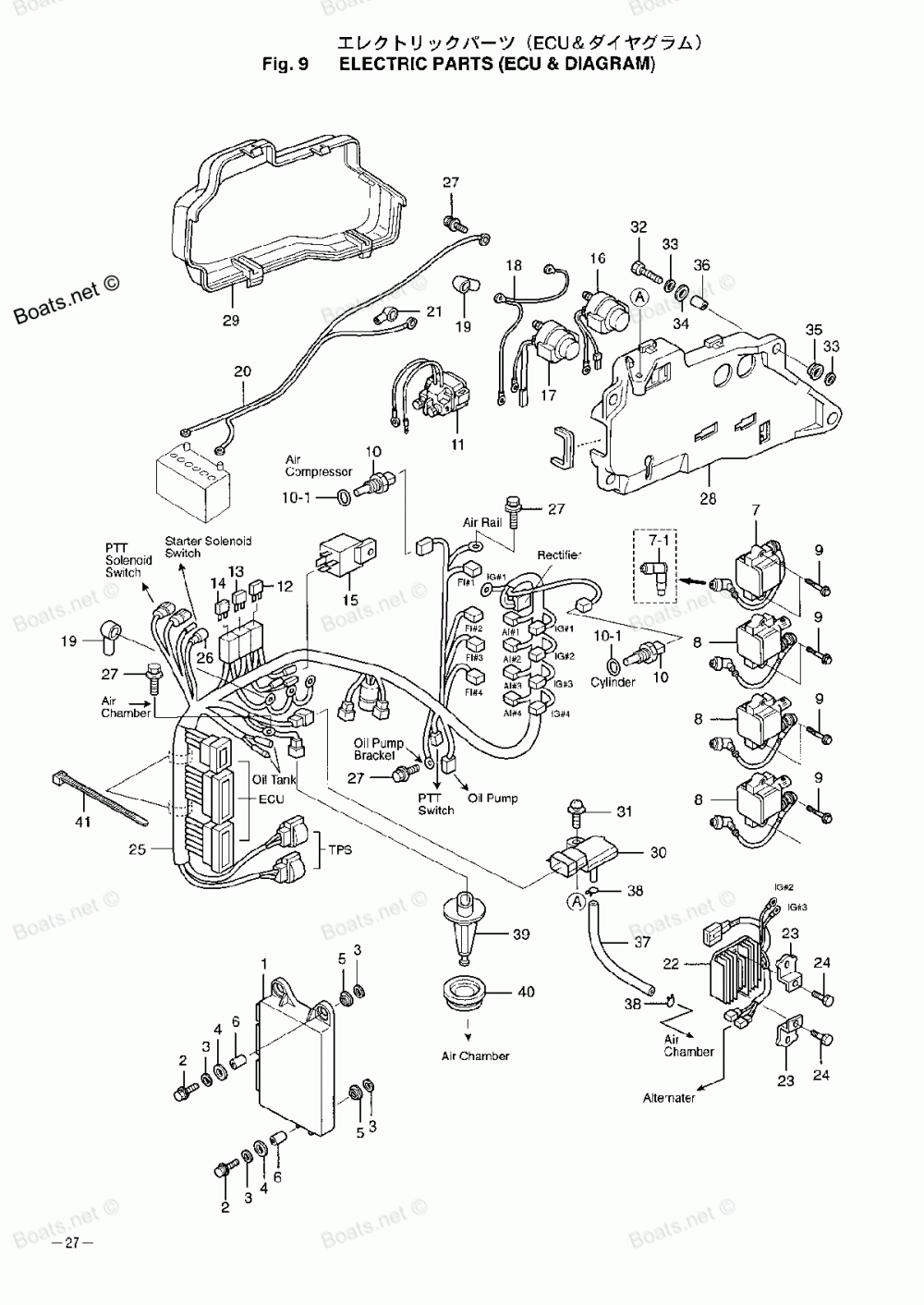

Electric Parts (ecu & Diagram)
Electric Parts (ecu & Diagram)

Electric Parts (ecu & Diagram)

Tohatsu M115A2

oem код

название

цена

Модуль

Болт

WASHER, 6.5 - 21 - 1

RUBBER MOUNT, 8.5 - 14 - 2.5

3B7069200M

RUBBER MOUNT, 8.5 - 14 - 2.5

3T5671140M

SPACER, 6.2 - 9 - 16.6

3T1064700M

IGNITION COIL, # 1

7-1

3T1069990M

PLUG CAP (WITH RESISTANCE)

3T1064690M

IGNITION COIL, # 2, # 3, AND # 4

9101037635

Болт

3Y9725140M

WATER TEMPERATURE SENSOR

10-1

O-RING, 2 - 10

STARTER SOLENOID

FUSE, 15A

FUSE, 25A

FUSE, 30A

RELAY

PTT SOLENOID SWITCH "A"

3AC725810M

PTT SOLENOID SWITCH "B"

GROUND CABLE

TERMINAL CAP

BATTERY CABLE

TERMINAL CAP

Регулятор напряжения

RECTIFIER PLATE

BOLT, 6 - 30 PRE-COATED

ASSEMBLY "A"

CABLE TERMINAL PLUG

Болт

SOLENOID SWITCH BRACKET

BRACKET COVER

MAP SENSOR

TAPPING SCREW, 6-25

WASHER, 6.5 - 16 - 1.5

346671140M

SPACER, 6.2 - 9 - 15.7

RUBBER HOSE

CLIP, ∅7

MAT SENSOR

MAT SENSORE GROMMET

LEAD WIRE BAND, 158
