Bracket, Mf & Ef Type Каталог оригинальных запчастей для лодочных моторов Nissan NSF9.8A3 (2011)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Nissan
2011
NSF9.8A3

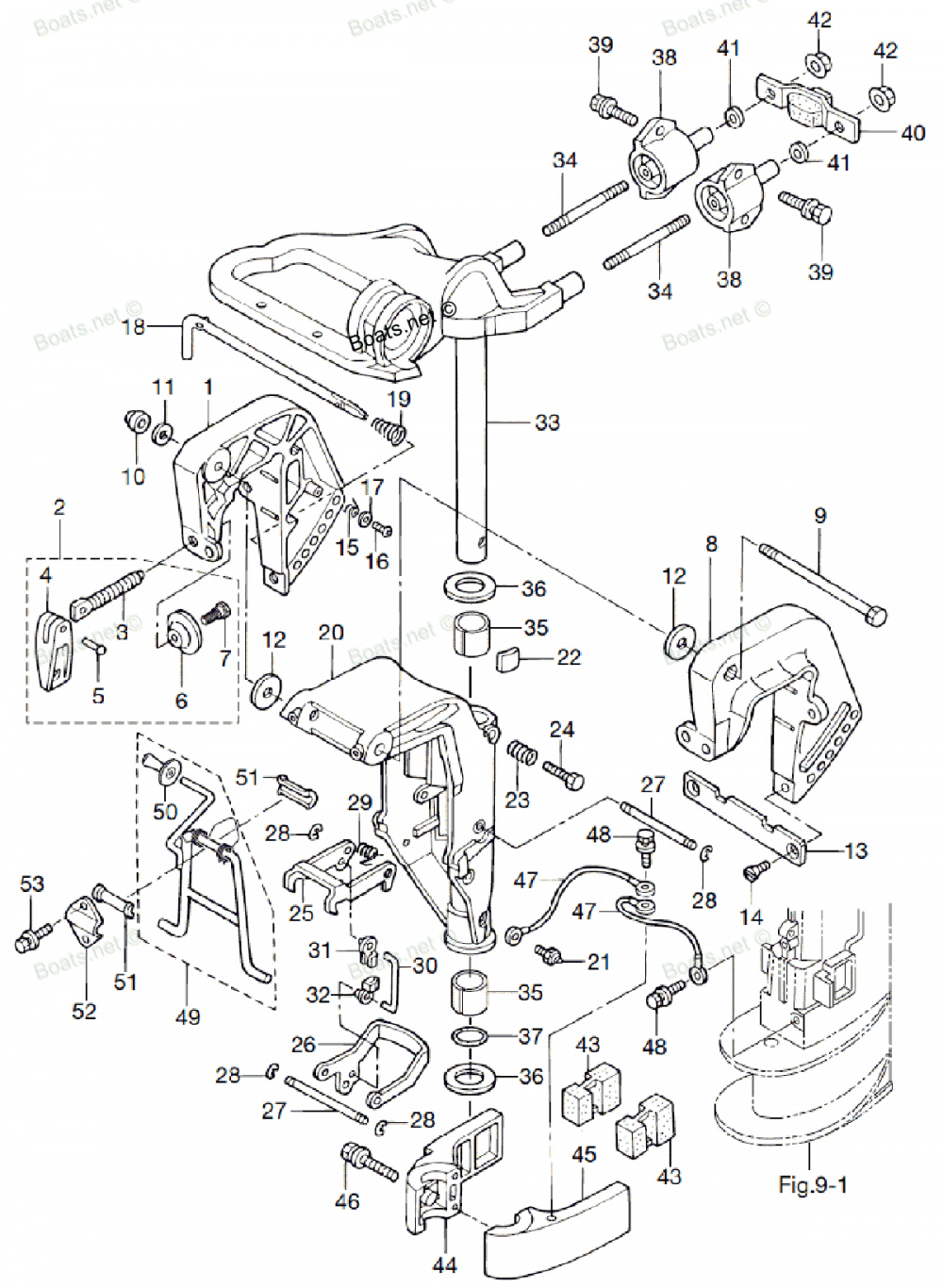

Bracket, Mf & Ef Type
Bracket, Mf & Ef Type

Bracket, Mf & Ef Type

Nissan NSF9.8A3

Bracket, Mf & Ef Type

#

oem код

название

цена

1

CLAMP BRACKET R

CLAMP BRACKET R

2

CLAMP SCREW KIT

CLAMP SCREW KIT

3

CLAMP SCREW

CLAMP SCREW

4

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

5

RIVET 3-22

RIVET 3-22

6

CLAMP SCREW PAD

CLAMP SCREW PAD

7

SHOULDER BOLT

SHOULDER BOLT

8

CLAMP SCREW, LEFT

CLAMP SCREW, LEFT

9

BOLT 8-122

BOLT 8-122

10

NYLON NUT 8P1.25

NYLON NUT 8P1.25

11

Шайба

Шайба

12

WASHER 8.5-28-1

WASHER 8.5-28-1

13

DISTANCE PLATE BRACKET

DISTANCE PLATE BRACKET

14

Винт

Винт

15

STERN BRACKET SPRING

STERN BRACKET SPRING

16

Винт

Винт

17

WASHER 4.3-16-1.5

WASHER 4.3-16-1.5

18

Штанга

Штанга

19

THRUST ROD SPRING

THRUST ROD SPRING

20

SWIVEL BRACKET

SWIVEL BRACKET

21

Масленка

Масленка

22

Стопор фрикционный

Стопор фрикционный

23

FICTION SPRING

FICTION SPRING

24

Болт

Болт

25

REVERSE LOCK

REVERSE LOCK

26

REVERSE LOCK ARM

REVERSE LOCK ARM

27

REVERSE LOCK ROD

REVERSE LOCK ROD

28

E-RING DIAMETER: 5

E-RING DIAMETER: 5

29

REVERSE LOCK SPRING

REVERSE LOCK SPRING

30

REVERSE LOCK LINK

REVERSE LOCK LINK

31

ROD SNAP 5-3

ROD SNAP 5-3

32

ROD SNAP 4-2

ROD SNAP 4-2

33

STEERING SHAFT ASSEMBLY

STEERING SHAFT ASSEMBLY

34

Шпилька

Шпилька

35

BUSHING 24-30-30

BUSHING 24-30-30

36

THUST PLATE, UPPER

THUST PLATE, UPPER

37

O-RING 3.5-22

O-RING 3.5-22

38

RUBBER MOUNT, UPPER

RUBBER MOUNT, UPPER

39

Болт

Болт

40

DAMPER, UPPER

DAMPER, UPPER

41

Шайба

Шайба

42

NUT, WITH FLANGE

NUT, WITH FLANGE

43

RUBBER MOUNT, LOWER

RUBBER MOUNT, LOWER

44

MOUNT BRACKET, RIGHT

MOUNT BRACKET, RIGHT

45

MOUNT BRACKET, LEFT

MOUNT BRACKET, LEFT

46

Болт

Болт

46

GROUND, EARTH WIRE, LENGTH: 110

GROUND, EARTH WIRE, LENGTH: 110

47

GROUND, EARTH WIRE, LENGTH: 110

GROUND, EARTH WIRE, LENGTH: 110

48

Болт

Болт

49

TILT STOPPER ASSEMBLY

TILT STOPPER ASSEMBLY

50

TILT STOPPER GRIP

TILT STOPPER GRIP

51

BUSHING TILT STOPPER

BUSHING TILT STOPPER

52

SETTING PLATE TILT STOPPER

SETTING PLATE TILT STOPPER

53

Болт

Болт
