Nissan NSF9.8A3

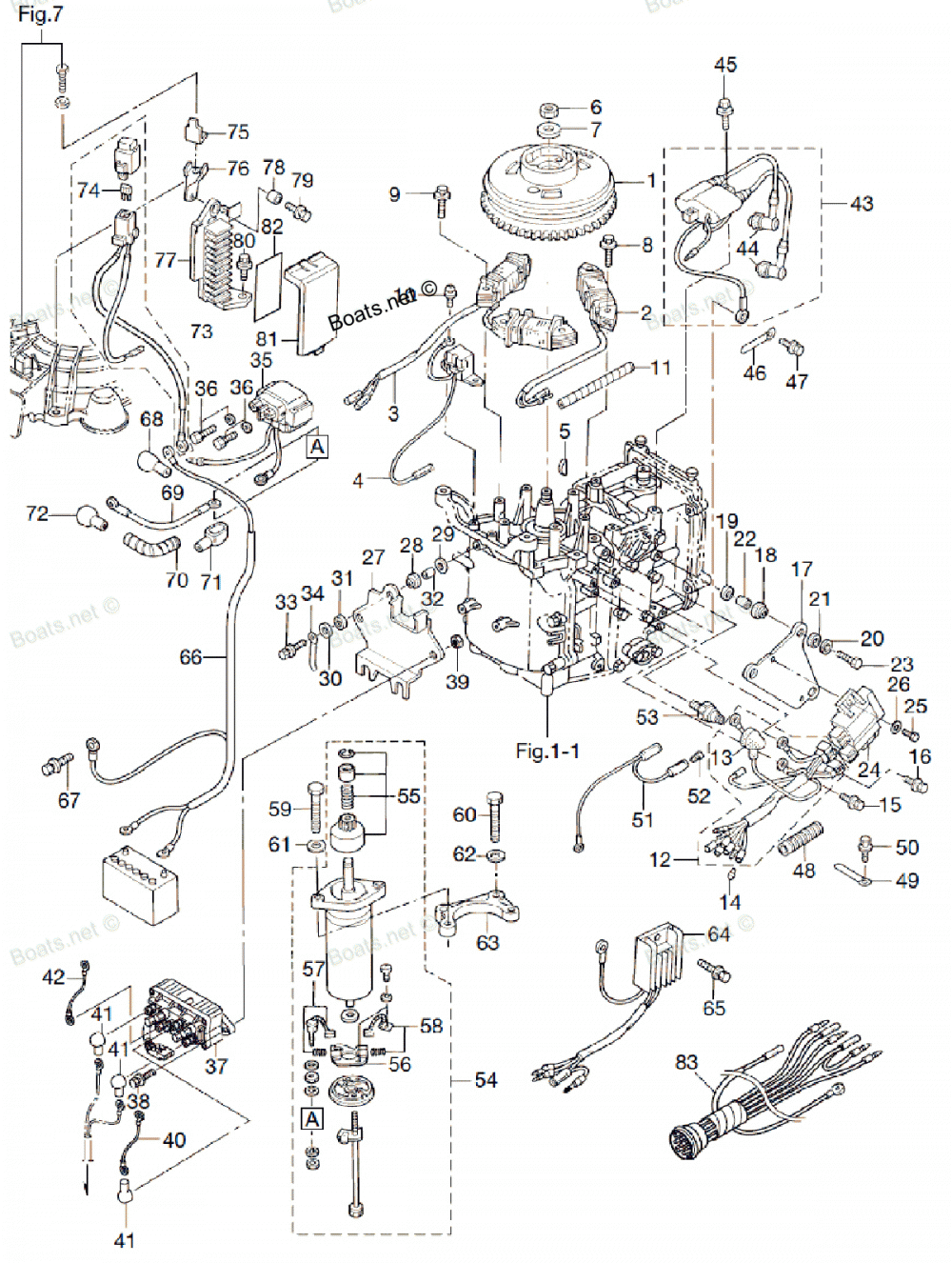

Magneto & Electric Parts

#

oem код

название

цена

1

FLYWHEEL, WITH GEAR

FLYWHEEL, WITH GEAR

2

EXCITER COIL

EXCITER COIL

3

ALTERNATOR ASSEMBLY

ALTERNATOR ASSEMBLY

4

PULSAR COIL

PULSAR COIL

5

KEY DRIVE PULLEY

KEY DRIVE PULLEY

6

NUT 12-P1.25

NUT 12-P1.25

7

Шайба

Шайба

8

Болт

Болт

9

Болт

Болт

10

Винт

Винт

11

SPIRAL TUBE PROTECTOR 10-100

SPIRAL TUBE PROTECTOR 10-100

12

CD UNIT CORD ASSEMBLY

CD UNIT CORD ASSEMBLY

13

GROMMET OIL PRESSURE SWITCH

GROMMET OIL PRESSURE SWITCH

14

CABLE TERMINAL PLUG

CABLE TERMINAL PLUG

15

BOLT WITH WASHER

BOLT WITH WASHER

16

BOLT WITH WASHER

BOLT WITH WASHER

17

CD UNIT BRACKET

CD UNIT BRACKET

18

Резиновое Крепление

Резиновое Крепление

19

WASHER 6-16-1.5

WASHER 6-16-1.5

20

WASHER 6-16-1.5

WASHER 6-16-1.5

21

RUBBER MOUNT 9-16-4.3

RUBBER MOUNT 9-16-4.3

22

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

23

Болт

Болт

24

CD UNIT

CD UNIT

25

PRE-COATED BOLT

PRE-COATED BOLT

26

WASHER 6-16-1.5

WASHER 6-16-1.5

27

ELECTRIC BRACKET ASSEMBLY

ELECTRIC BRACKET ASSEMBLY

28

Резиновое Крепление

Резиновое Крепление

29

WASHER 6-16-1.5

WASHER 6-16-1.5

30

WASHER 6-16-1.5

WASHER 6-16-1.5

31

RUBBER MOUNT 9-16-4.3

RUBBER MOUNT 9-16-4.3

32

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

33

Болт

Болт

34

CLAMP 6.5-87P

CLAMP 6.5-87P

35

STARTER SOLENOID

STARTER SOLENOID

36

Болт

Болт

37

PTT SOLENOID SWITCH A

PTT SOLENOID SWITCH A

38

Болт

Болт

39

Гайка

Гайка

40

SOLENOID SWITCH CORD A, LENGTH: 80

SOLENOID SWITCH CORD A, LENGTH: 80

41

TERMINAL CAP

TERMINAL CAP

42

SOLENOID SWITCH CORD B, LENGTH: 150

SOLENOID SWITCH CORD B, LENGTH: 150

43

IGNITION COIL, WITH RESISTANCE- CAP

IGNITION COIL, WITH RESISTANCE- CAP

44

PLUG CAP WITH RESISTANCE

PLUG CAP WITH RESISTANCE

45

Болт

Болт

46

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

47

BOLT 5-16

BOLT 5-16

48

PROTECTOR 34-70

PROTECTOR 34-70

49

CLAMP 6.5-87P

CLAMP 6.5-87P

50

Болт

Болт

51

SEPARATE CORD, BLACK

SEPARATE CORD, BLACK

52

CABLE TERMINAL PLUG

CABLE TERMINAL PLUG

53

Датчик давления масла

Датчик давления масла

54

STARTER MOTOR ASSEMBLY

STARTER MOTOR ASSEMBLY

55

PINION ASSEMBLY

PINION ASSEMBLY

56

Держатель щеток

Держатель щеток

57

POSITIVE BRUSH +

POSITIVE BRUSH +

58

NEGATIVE BRUSH -

NEGATIVE BRUSH -

59

Болт

Болт

60

Болт

Болт

61

Шайба

Шайба

62

Шайба

Шайба

63

STARTER MOTOR BRACKET

STARTER MOTOR BRACKET

64

RECTIFIER COMPLETE

RECTIFIER COMPLETE

65

BOLT 5-16

BOLT 5-16

66

BATTERY CABLE, LENGTH: 2500

BATTERY CABLE, LENGTH: 2500

67

Болт

Болт

68

TERMINAL CAP

TERMINAL CAP

69

STARTER CABLE, LENGTH:200

STARTER CABLE, LENGTH:200

70

SPIRAL TUBE PROTECTOR 10-100

SPIRAL TUBE PROTECTOR 10-100

71

TERMINAL CAP

TERMINAL CAP

72

TERMINAL CAP

TERMINAL CAP

73

FUSE WIRE ASSEMBLY, LENGTH: 185

FUSE WIRE ASSEMBLY, LENGTH: 185

74

FUSE 20A

FUSE 20A

75

FUSE HOLDER BRACKET

FUSE HOLDER BRACKET

76

CABLE TERMINAL HOLDER STAY

CABLE TERMINAL HOLDER STAY

77

CABLE TERMINAL HOLDER

CABLE TERMINAL HOLDER

78

COLLAR 6-8-6

COLLAR 6-8-6

79

Болт

Болт

80

Болт

Болт

81

COVER TERMINAL HOLDER

COVER TERMINAL HOLDER

82

WIRING DIAGRAM DECAL

WIRING DIAGRAM DECAL

82

WIRING DIAGRAM DECAL

WIRING DIAGRAM DECAL

83

CORD ASSEMBLY

CORD ASSEMBLY
