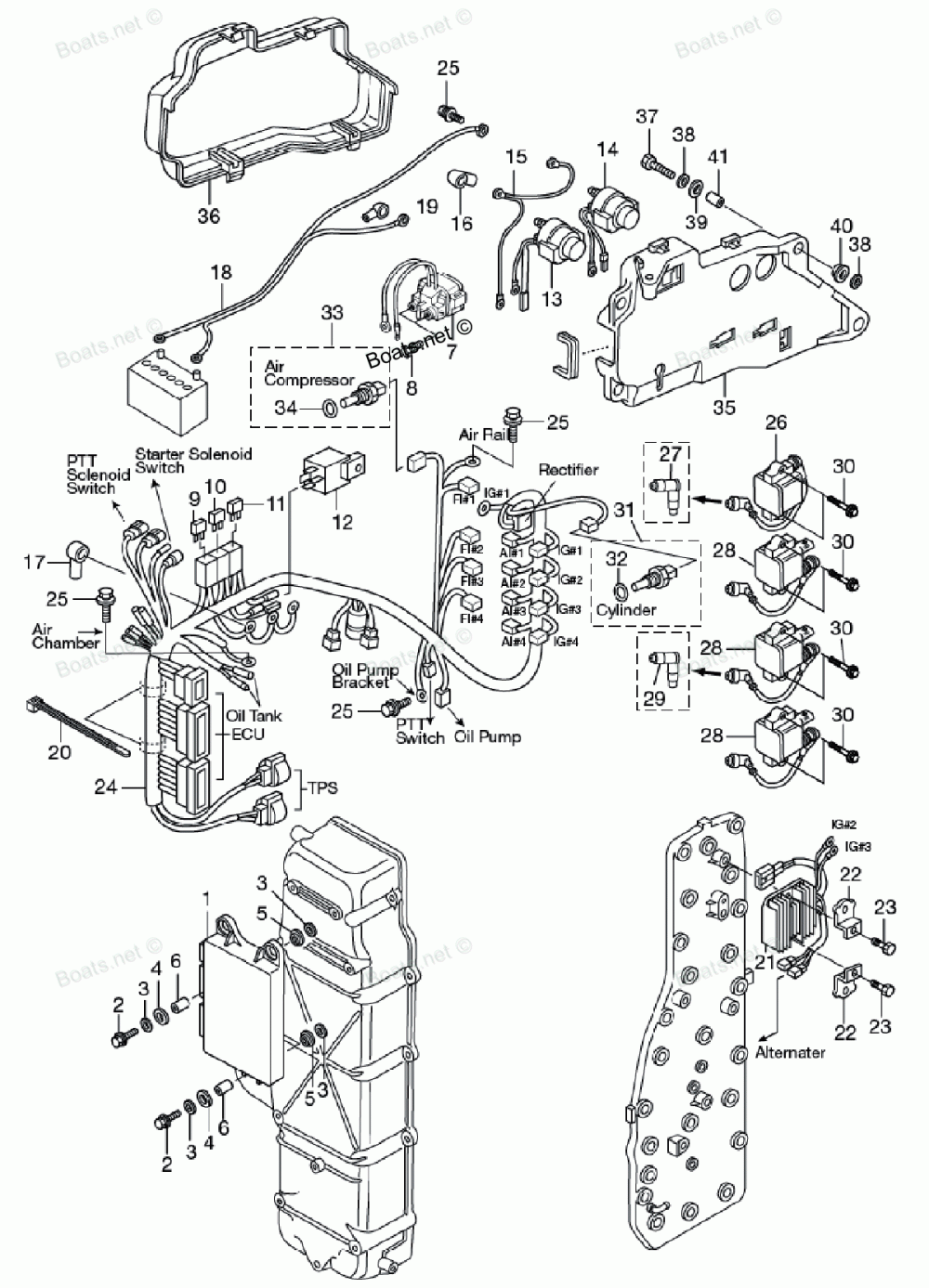

Electric Parts, Ecu&diagram

Nissan NSD115A2
Nissan
#oem кодцена
1
3HK064010M
ECU ASSEMBLY
2
9101036630
Болт
3
346671150M
WASHER 6.5-21-1
4
346671130M
MOUNT MOTOR COVER LOWER
5
3B7069200M
RUBBER MOUNT 8.5-14-2.5
6
3T5671140M
SPACER 6.2-9-16.6
7
3H8760400M
STARTER SOLENOID
8
9101035610
Болт
9
3T5762490M
FUSE 30A
10
3Y9762480M
FUSE 25A
11
3T5762460M
FUSE 15A
12
3T1063300M
RELAY
13
3AC725800M
PTT SOLENOID SWITCH A UP
14
3AC725810M
PTT SOLENOID SWITCH B DN
15
3T5761421M
GROUND CABLE, EARTH CORD
16
3A3761450M
TERMINAL CAP STARTER
17
3A3761450M
TERMINAL CAP STARTER
18
3B7761202M
BATTERY CABLE LENGTH: 3000
19
3B7761450M
TERMINAL CAP
20
369843980M
BAND LEAD WIRE 158
21
3T1760601M
RECTIFIER COMPLETE
22
3T1072331M
PLATE RECTIFIER
23
3AB600011M
Болт
24
3HK761100M
CORD ASSEMBLY
25
9101035612
BOLT WITH WASHER
26
3T1064700M
IGNITION COIL, WITH RESISTANCE-CAP
27
3T1069990M
PLUG CAP, WITH RESISTANCE
28
3T1064690M
IGNITION COIL, WITH RESISTANCE-CAP
29
3T1069990M
PLUG CAP, WITH RESISTANCE
30
9101037635
Болт
31
3Y9725140M
WATER TEMPERATURE SENSOR, WITH O-RING
32
3G9661360M
O-RING 2.0-10.0
33
3Y9725140M
WATER TEMPERATURE SENSOR, WITH O-RING
34
3G9661360M
O-RING 2.0-10.0
35
3T1725930M
BRACKET ASSEMBLY SOLENOID SWITCH
36
3T1069020M
COVER SOLENOID SWITCH BRACKET
37
9101036630
Болт
38
3C8663080M
WASHER 6-16-1.5
39
346671130M
MOUNT MOTOR COVER LOWER
40
3B7069200M
RUBBER MOUNT 8.5-14-2.5
41
346671141M
SPACER 6.2-9-15.7
