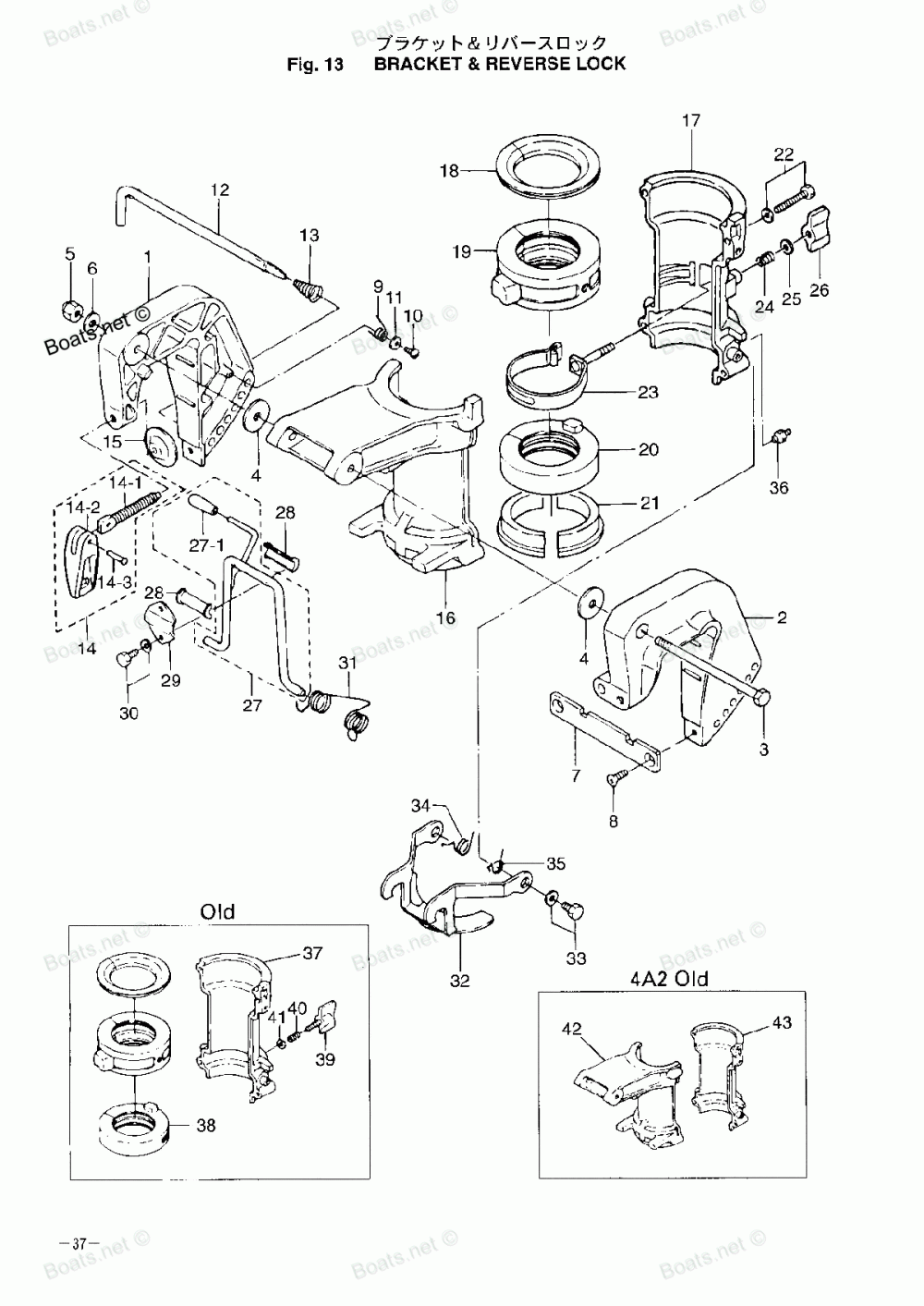

Bracket & Reverse Lock
Bracket & Reverse Lock

Bracket & Reverse Lock

Nissan NSF6B

Bracket & Reverse Lock

#

oem код

название

цена

1

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

1

SWIVEL BRACK A

SWIVEL BRACK A

2

SWIVEL BRACK B

SWIVEL BRACK B

2

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

3

BOLT, 8-122

BOLT, 8-122

3

CLAMP BRACKET, RIGHT

CLAMP BRACKET, RIGHT

4

WASHER, 8.8-28-1.0

WASHER, 8.8-28-1.0

4

CLAMP SCREW ASSEMBLY

CLAMP SCREW ASSEMBLY

5

NYLON NUT, 8PI.25

NYLON NUT, 8PI.25

5

CLAMP SCREW

CLAMP SCREW

6

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

6

Шайба

Шайба

7

RIVET 3-22

RIVET 3-22

7

BRACKET DISTANCE PLATE

BRACKET DISTANCE PLATE

8

CLAMP SCREW PAD

CLAMP SCREW PAD

8

Винт

Винт

9

CLAMP BRACKET

CLAMP BRACKET

9

CLAMP BRACKET SPRING

CLAMP BRACKET SPRING

10

BOLT 8-122

BOLT 8-122

10

Винт

Винт

11

NYLON NUT 8P1.25

NYLON NUT 8P1.25

11

WASHER. 4.3-16-1.5

WASHER. 4.3-16-1.5

12

Шайба

Шайба

12

Штанга

Штанга

13

WASHER 8.5-28-1

WASHER 8.5-28-1

13

THRUST ROD SPRING

THRUST ROD SPRING

14

DISTANCE PLATE BRACKET

DISTANCE PLATE BRACKET

14

CLAMP SCREW ASSY

CLAMP SCREW ASSY

14-1

CLAMP SCREW

CLAMP SCREW

14-2

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

14-3

RIVET 3-22

RIVET 3-22

15

CLAMP SCREW PAD

CLAMP SCREW PAD

15

Винт

Винт

16

STERN BRACKET SPRING

STERN BRACKET SPRING

16

SWIVEL BRACKET "A"

SWIVEL BRACKET "A"

17

Винт

Винт

17

SWIVEL BRACKET "B"

SWIVEL BRACKET "B"

18

WASHER 4.3-16-1.5

WASHER 4.3-16-1.5

18

THRUST BUSHING

THRUST BUSHING

19

Штанга

Штанга

19

STEERING BUSHING (UPPER)

STEERING BUSHING (UPPER)

20

STEERING BUSHING (LOWER)

STEERING BUSHING (LOWER)

20

THRUST ROD SPRING

THRUST ROD SPRING

21

THRUST PLATE "B"

THRUST PLATE "B"

21

Болт

Болт

22

Болт

Болт

22

THRUST BUSHING

THRUST BUSHING

23

BUSHING UPPER STEERING

BUSHING UPPER STEERING

23

FRICTION PLATE

FRICTION PLATE

24

BUSHING LOWER STEERING

BUSHING LOWER STEERING

24

CO-PILOT SPRING

CO-PILOT SPRING

25

FRICTION BAND ASSEMBLY

FRICTION BAND ASSEMBLY

25

Шайба, 6х16х1.5

Шайба, 6х16х1.5

26

WING NUT

WING NUT

26

THRUST PLATE, LOWER

THRUST PLATE, LOWER

27

TILT STOPPER

TILT STOPPER

27

SPRING CO-PILOT

SPRING CO-PILOT

27-1

* TILT STOPPER GRIP

* TILT STOPPER GRIP

28

TILT STOPPER BUSHING

TILT STOPPER BUSHING

28

WING NUT M6

WING NUT M6

29

WASHER 6-16-1.5

WASHER 6-16-1.5

29

TILT STOPPER SET PLATE

TILT STOPPER SET PLATE

30

TILT STOPPER ASSEMBLY

TILT STOPPER ASSEMBLY

30

Болт

Болт

31

TILT STOPPER SPRING

TILT STOPPER SPRING

31

TILT STOPPER GRIP

TILT STOPPER GRIP

32

REVERSE LOCK ARM

REVERSE LOCK ARM

32

BUSHING TILT STOPPER

BUSHING TILT STOPPER

33

Болт

Болт

33

SETTING PLATE TILT STOPPER

SETTING PLATE TILT STOPPER

34

REVERSE LOCK ARM SPRING (RIGHT)

REVERSE LOCK ARM SPRING (RIGHT)

34

Болт

Болт

35

REVERSE LOCK ARM SPRING (LE

REVERSE LOCK ARM SPRING (LE

35

Масленка

Масленка

36

REVERSE LOCK ARM

REVERSE LOCK ARM

36

Масленка

Масленка

37

Болт

Болт

37

SWIVEL BRACKET "B"

SWIVEL BRACKET "B"

38

STEERING BUSHING (LOWER)

STEERING BUSHING (LOWER)

38

REVERSE LOCK SPRING RIGHT

REVERSE LOCK SPRING RIGHT

39

FRICTION PLATE SCREW

FRICTION PLATE SCREW

39

REVERSE LOCK SPRING LEFT

REVERSE LOCK SPRING LEFT

40

FRICTION PLATE SPRING

FRICTION PLATE SPRING

41

Шайба

Шайба
