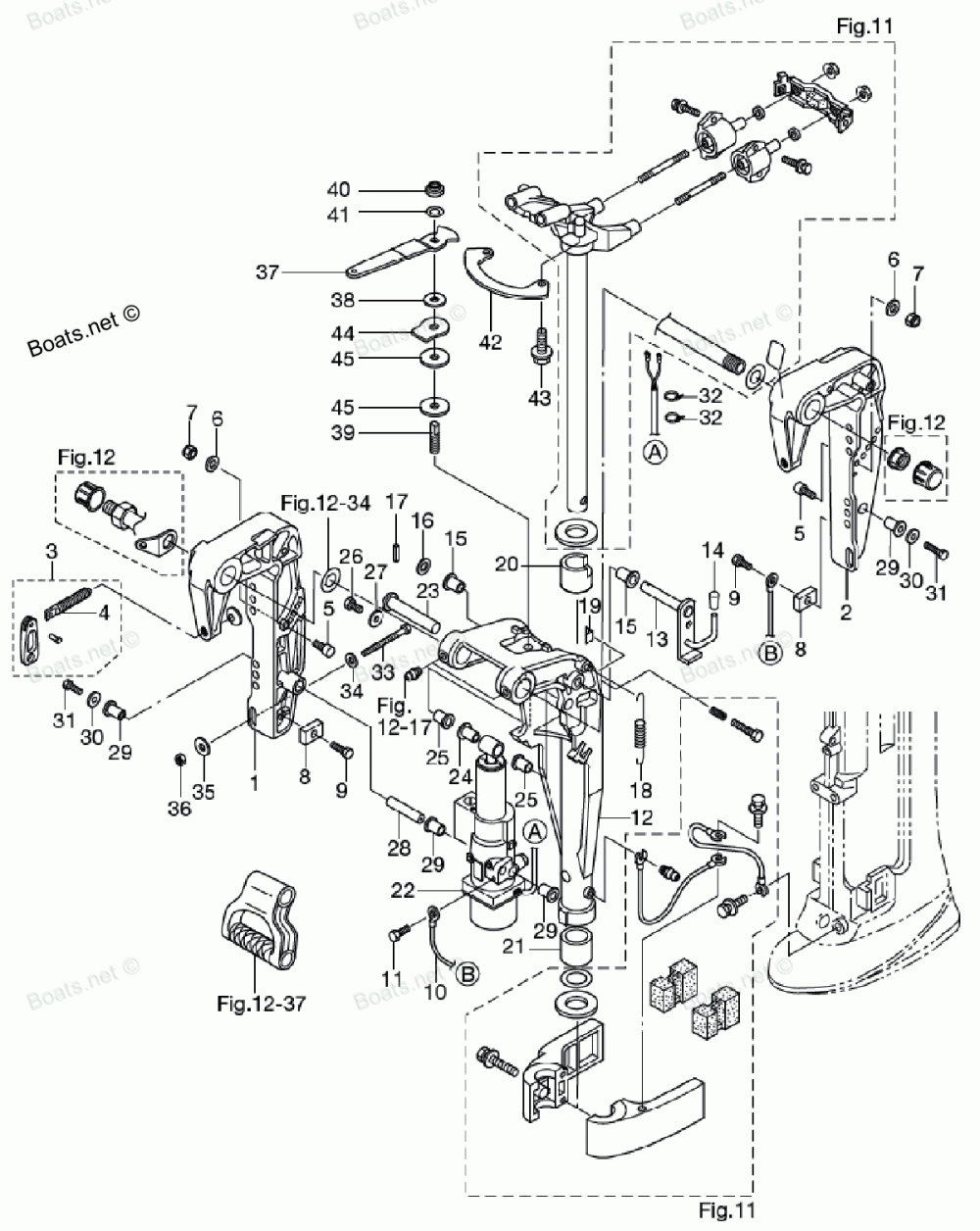

Bracket, Eft & Ept Type
Bracket, Eft & Ept Type

Bracket, Eft & Ept Type

Nissan NSF9.8A3

Bracket, Eft & Ept Type

#

oem код

название

цена

1

CLAMP BRACKET, PTT-R

CLAMP BRACKET, PTT-R

2

CLAMP BRACKET PTT-L

CLAMP BRACKET PTT-L

3

CLAMP SCREW ASSEMBLY

CLAMP SCREW ASSEMBLY

4

CLAMP SCREW

CLAMP SCREW

5

TRIM LOCK PIN

TRIM LOCK PIN

6

WASHER 8.1-16-1.5

WASHER 8.1-16-1.5

7

NYLON NUT, 2T, M8=P1.25

NYLON NUT, 2T, M8=P1.25

8

Анод

Анод

9

BOLT 5-16

BOLT 5-16

10

GROUND, EARTH WIRE, LENGTH: 130

GROUND, EARTH WIRE, LENGTH: 130

11

BOLT WITH WASHER

BOLT WITH WASHER

12

SWIVEL BRACKET ASSEMBLY

SWIVEL BRACKET ASSEMBLY

13

TILT STOPPER, PTT

TILT STOPPER, PTT

14

TILT STOPPER GRIP

TILT STOPPER GRIP

15

COLLAR 10.2-12-12

COLLAR 10.2-12-12

16

Шайба

Шайба

17

SPRING PIN 3.5-16

SPRING PIN 3.5-16

18

TILT STOPPER SPRING

TILT STOPPER SPRING

19

Стопор фрикционный

Стопор фрикционный

20

BUSHING 24-30-30

BUSHING 24-30-30

21

BUSHING 24-30-30

BUSHING 24-30-30

22

PT ASSEMBLY

PT ASSEMBLY

23

CYLINDER PIN, UPPER

CYLINDER PIN, UPPER

24

BUSHING 13-16-31

BUSHING 13-16-31

25

BUSHING 13-17-19.5

BUSHING 13-17-19.5

26

Болт

Болт

27

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

28

CYLINDER PIN, LOWER

CYLINDER PIN, LOWER

29

BUSHING 13-16-31

BUSHING 13-16-31

30

WASHER 8.5-28-1

WASHER 8.5-28-1

31

Болт

Болт

32

BAND LEAD WIRE

BAND LEAD WIRE

33

Болт

Болт

34

Шайба

Шайба

35

Шайба

Шайба

36

NYLON NUT 8P1.25

NYLON NUT 8P1.25

37

FRICTION LEVER

FRICTION LEVER

38

WASHER 8.1-20-0.8

WASHER 8.1-20-0.8

39

BOLT CO-PILOT

BOLT CO-PILOT

40

NYLON NUT 8P1.25

NYLON NUT 8P1.25

41

Шайба

Шайба

42

PLATE CO-PILOT

PLATE CO-PILOT

43

Болт

Болт

44

WASHER CO-PILOT

WASHER CO-PILOT

45

DISC CO-PILOT

DISC CO-PILOT
