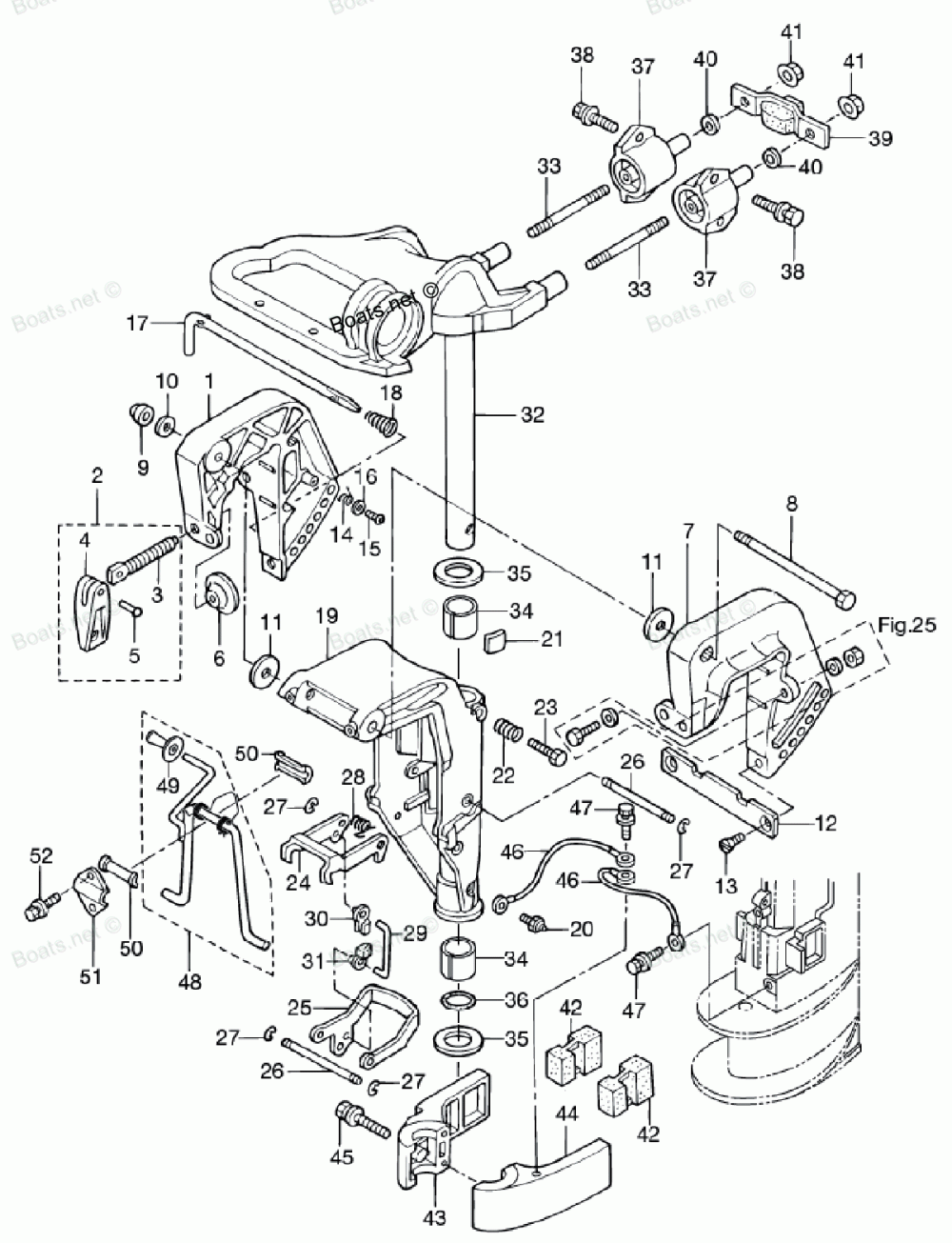

Nissan NSF9.8A3

Bracket, Mf & Ef Type

#

oem код

название

цена

1

CLAMP BRACKET R

CLAMP BRACKET R

2

CLAMP SCREW ASSEMBLY

CLAMP SCREW ASSEMBLY

3

CLAMP SCREW

CLAMP SCREW

4

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

5

RIVET 3-22

RIVET 3-22

6

CLAMP SCREW PAD

CLAMP SCREW PAD

7

CLAMP SCREW, LEFT

CLAMP SCREW, LEFT

8

BOLT 8-122

BOLT 8-122

9

NYLON NUT 8P1.25

NYLON NUT 8P1.25

10

Шайба

Шайба

11

WASHER 8.5-28-1

WASHER 8.5-28-1

12

DISTANCE PLATE BRACKET

DISTANCE PLATE BRACKET

13

Винт

Винт

14

STERN BRACKET SPRING

STERN BRACKET SPRING

15

Винт

Винт

16

WASHER 4.3-16-1.5

WASHER 4.3-16-1.5

17

Штанга

Штанга

18

THRUST ROD SPRING

THRUST ROD SPRING

19

SWIVEL BRACKET

SWIVEL BRACKET

20

Масленка

Масленка

21

Стопор фрикционный

Стопор фрикционный

22

FICTION SPRING

FICTION SPRING

23

Болт

Болт

24

REVERSE LOCK

REVERSE LOCK

25

REVERSE LOCK ARM

REVERSE LOCK ARM

26

REVERSE LOCK ROD

REVERSE LOCK ROD

27

E-RING DIAMETER: 5

E-RING DIAMETER: 5

28

REVERSE LOCK SPRING

REVERSE LOCK SPRING

29

REVERSE LOCK LINK

REVERSE LOCK LINK

30

ROD SNAP 5-3

ROD SNAP 5-3

31

ROD SNAP 4-2

ROD SNAP 4-2

32

STEERING SHAFT ASSEMBLY

STEERING SHAFT ASSEMBLY

33

Шпилька

Шпилька

34

BUSHING 24-30-30

BUSHING 24-30-30

35

THUST PLATE, UPPER

THUST PLATE, UPPER

36

O-RING 3.5-22

O-RING 3.5-22

37

RUBBER MOUNT, UPPER

RUBBER MOUNT, UPPER

38

Болт

Болт

39

DAMPER, UPPER

DAMPER, UPPER

40

Шайба

Шайба

41

NUT, WITH FLANGE

NUT, WITH FLANGE

42

RUBBER MOUNT, LOWER

RUBBER MOUNT, LOWER

43

MOUNT BRACKET, RIGHT

MOUNT BRACKET, RIGHT

44

MOUNT BRACKET, LEFT

MOUNT BRACKET, LEFT

45

Болт

Болт

46

GROUND, EARTH WIRE, LENGTH: 110

GROUND, EARTH WIRE, LENGTH: 110

47

Болт

Болт

48

TILT STOPPER ASSEMBLY

TILT STOPPER ASSEMBLY

49

TILT STOPPER GRIP

TILT STOPPER GRIP

50

BUSHING TILT STOPPER

BUSHING TILT STOPPER

51

SETTING PLATE TILT STOPPER

SETTING PLATE TILT STOPPER

52

Болт

Болт
