КОРПУС ПРИВОДНОГО ВАЛА Каталог оригинальных запчастей для лодочных моторов Nissan NSF15C (2010)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Nissan
2010
NSF15C

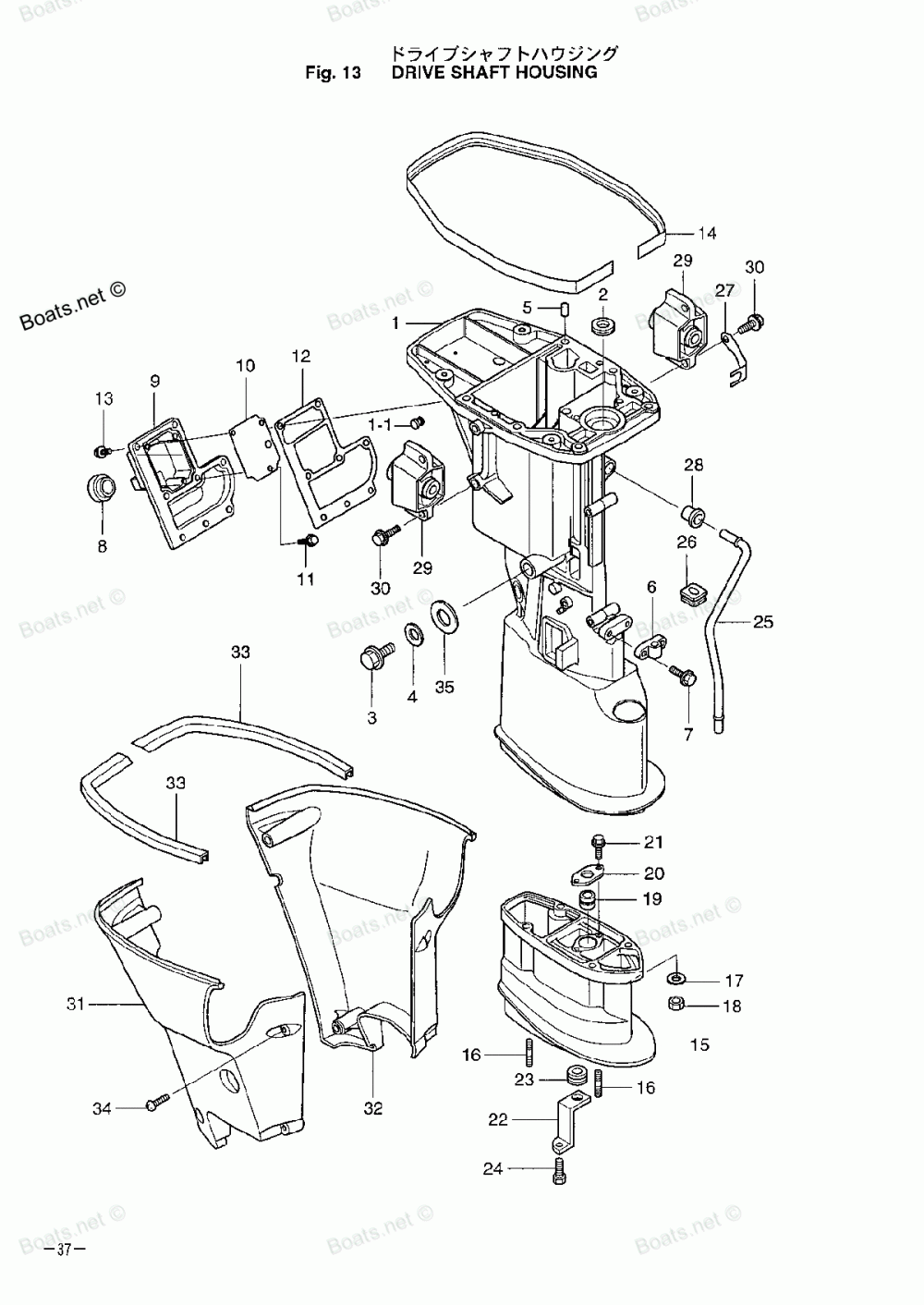

КОРПУС ПРИВОДНОГО ВАЛА
КОРПУС ПРИВОДНОГО ВАЛА

КОРПУС ПРИВОДНОГО ВАЛА

Nissan NSF15C

КОРПУС ПРИВОДНОГО ВАЛА

#

oem код

название

цена

1

DRIVE SHAFT HOUSING "S"

DRIVE SHAFT HOUSING "S"

1

DRIVE SHAFT HOUSING "L"

DRIVE SHAFT HOUSING "L"

1

DRIVE SHAFT HOUSING ASSEMBLY S

DRIVE SHAFT HOUSING ASSEMBLY S

1-1

EXHAUST PLUG

EXHAUST PLUG

2

OIL SEAL, 12.8 - 25 - 7

OIL SEAL, 12.8 - 25 - 7

2

EXHAUST PLUG

EXHAUST PLUG

3

Направляющая пластина

Направляющая пластина

3

DRAIN BOLT

DRAIN BOLT

4

WASHER, 14.5 - 24 - 1

WASHER, 14.5 - 24 - 1

4

BOLT WITH WASHER

BOLT WITH WASHER

5

DOWEL, 6 - 12

DOWEL, 6 - 12

5

OIL SEAL 12.8-25-7

OIL SEAL 12.8-25-7

6

CAM ROD HOLDER

CAM ROD HOLDER

6

Шпилька

Шпилька

7

Болт

Болт

7

DRAIN BOLT

DRAIN BOLT

8

IDLE EXHAUST PORT GROMMET

IDLE EXHAUST PORT GROMMET

8

Шайба

Шайба

9

IDLE EXHAUST PORT COVER

IDLE EXHAUST PORT COVER

9

GROMMET OIL DRAIN

GROMMET OIL DRAIN

10

IDLE EXHAUST PORT PLATE

IDLE EXHAUST PORT PLATE

10

DOWEL PIN 6-12

DOWEL PIN 6-12

11

Болт

Болт

11

CAM ROD HOLDER

CAM ROD HOLDER

12

IDLE EXHAUST PORT GASKET

IDLE EXHAUST PORT GASKET

12

Болт

Болт

13

Болт

Болт

13

IDLE EXHAUST PORT GROMMET

IDLE EXHAUST PORT GROMMET

14

ENGINE BASEMENT SEAL

ENGINE BASEMENT SEAL

14

IDLE EXHAUST PORT COVER

IDLE EXHAUST PORT COVER

15

EXTENSION HOUSING "UL"

EXTENSION HOUSING "UL"

15

PLATE IDLE EXHAUST PORT

PLATE IDLE EXHAUST PORT

16

Болт

Болт

16

Шпилька

Шпилька

17

WASHER, 8.1 - 16 - 1.5

WASHER, 8.1 - 16 - 1.5

17

IDLE EXHAUST PORT GASKET

IDLE EXHAUST PORT GASKET

18

Гайка

Гайка

18

Болт

Болт

19

DRIVE SHAFT BUSHING

DRIVE SHAFT BUSHING

19

ENGINE BASEMENT SEAL

ENGINE BASEMENT SEAL

20

BUSHING STOPPER

BUSHING STOPPER

20

EXTENSION HOUSING

EXTENSION HOUSING

21

Болт

Болт

21

WASHER 8.1-16-1.5

WASHER 8.1-16-1.5

22

Гайка

Гайка

22

Фиксирующая Пластина

Фиксирующая Пластина

23

WATER PIPE AUXILLARY MOUNT

WATER PIPE AUXILLARY MOUNT

23

Шпилька

Шпилька

24

Винт

Винт

24

DRIVE SHAFT BUSHING

DRIVE SHAFT BUSHING

25

WATER PIPE "S"

WATER PIPE "S"

25

STOPPER BUSHING

STOPPER BUSHING

25

WATER PIPE "L"

WATER PIPE "L"

25

WATER PIPE "UL"

WATER PIPE "UL"

26

Болт

Болт

26

WATER PIPE AUXILLARY MOUNT

WATER PIPE AUXILLARY MOUNT

27

WATER PIPE LOCK PLATE

WATER PIPE LOCK PLATE

27

Фиксирующая Пластина

Фиксирующая Пластина

28

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)

28

WATER PIPE AUXILIARY MOUNT 13-2.5

WATER PIPE AUXILIARY MOUNT 13-2.5

29

Винт

Винт

29

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

29

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

30

DRIVE SHAFT HOUSING COVER

DRIVE SHAFT HOUSING COVER

30

Болт

Болт

31

DRIVE SHAFT HOUSING COVER L

DRIVE SHAFT HOUSING COVER L

31

DRIVE SHAFT HOUSING COVER (RIGHT)

DRIVE SHAFT HOUSING COVER (RIGHT)

32

SEAL RUBBER APRON

SEAL RUBBER APRON

32

DRIVE SHAFT HOUSING COVER (LEFT)

DRIVE SHAFT HOUSING COVER (LEFT)

33

APRON SEAL

APRON SEAL

33

TAPPING SCREW 6-60

TAPPING SCREW 6-60

34

WATER PIPE L

WATER PIPE L

34

WATER PIPE UL

WATER PIPE UL

34

TAPPING SCREW, 6 - 60

TAPPING SCREW, 6 - 60

34

WATER PIPE S

WATER PIPE S

35

WATER PIPE AUXILIARY MOUNT

WATER PIPE AUXILIARY MOUNT

35

OIL DRAIN GROMMET

OIL DRAIN GROMMET

36

WATER PIPE SEAL, UPPER

WATER PIPE SEAL, UPPER
